Wattage 100 W
Voltage Range 220-240V AC
Lumen 17000 lm
Diameter 255 mm
Wattage
100 W
Voltage Range
220-240V AC
Lumen
17000 lm
Diameter
255 mm
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP65
Battery Operated
No

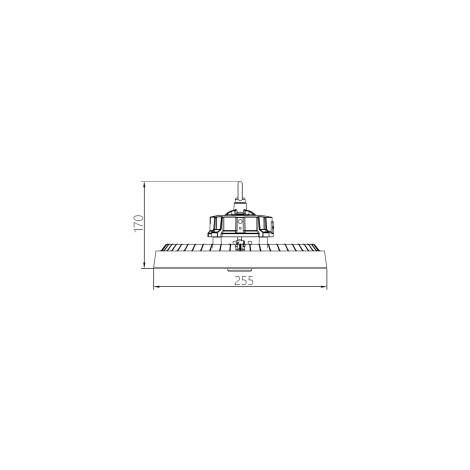

Dimensions
170 mm x Ø255 mm
Height
170 mm
IK Protection
IK08
Luminous Efficiency
160 lm/W
100W LIFUD 0-10V Dimmable Industrial UFO HBD LED High Bay 170lm/W
Ref. Ledkia: 110326
Colour Temperature Cool White 4000K
- Available in other selections.
Optic 120º
- Available in other selections.
In Stock, delivery in 16-21 days
Before 44,81 €
29,95 €
VAT included
In Stock, delivery in 16-21 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Weight1.8 kg
- Dimensions170 mm x Ø255 mm
Downloads
PDF Datasheet 110326_224366 IE
DoC_110326_224366
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage220 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage100 W
Product Information
- CertificatesCE, RoHS, CB, CEE, ERP, UKCA
- Guarantee5 years
- Product SeriesHBD
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours80.000 HorasEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance170 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen17000 lm
- Luminous Efficiency160 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Power Factor0.95
Mechanical Features
- Ambient Working Temperature-40 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Optic120ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
Driver Information
- Driver BrandLIFUD
- Driver Intensity300 mA-500 mA
- Driver Power120 W
- Driver Tension180 V DC - 260 V DCVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
- WifiNo
Description
The 100W Industrial UFO HBD High Bay 0-10V LIFUD Dimmable 170lm/W is a high performance luminaire designed for industrial and outdoor environments requiring powerful illumination. Its 100W rated wattage ensures efficient energy use.
Features of the 100W Industrial UFO HBD High Bay 0-10V LIFUD Dimmable 170lm/W
This LED High Bay is extremely versatile and suitable for a variety of electrical installations, with a dimming capability of 0-10V that allows the light intensity to be adjusted according to the specific needs of the environment. In addition, it is equipped with high quality LUMILEDS SMD2835 light sources, offering a colour rendering index (CRI) of 70 to ensure accurate colour rendering. Its robust and durable design has an IP65 protection factor, making it suitable for outdoor use, protecting it against dust and moisture and ensuring its durability in industrial environments. This LED High Bay is equipped with a high quality LIFUD driver, which guarantees a constant and stable power supply.
