Range Expert
  • 200 W
    Wattage 200 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 40000 lm
    Lumens 40000 lm
  • 292 mm
    Diameter 292 mm
Image of 150W PHILIPS XITANIUM LEDNIX 0-10V Dimmable UFO HBM LED High Bay 200lm/W
    Image of 150W PHILIPS XITANIUM LEDNIX 0-10V Dimmable UFO HBM LED High Bay 200lm/W
    Image of 150W PHILIPS XITANIUM LEDNIX 0-10V Dimmable UFO HBM LED High Bay 200lm/W
    Image of 150W PHILIPS XITANIUM LEDNIX 0-10V Dimmable UFO HBM LED High Bay 200lm/W
    Image of 150W PHILIPS XITANIUM LEDNIX 0-10V Dimmable UFO HBM LED High Bay 200lm/W
    Image of 150W PHILIPS XITANIUM LEDNIX 0-10V Dimmable UFO HBM LED High Bay 200lm/W
1 / 5
  • 200 W

    Wattage

    200 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 40000 lm

    Lumens

    40000 lm

  • 292 mm

    Diameter

    292 mm

  • 1-10 V

    Type Of Dimming

    1-10 V

  • 0.95

    Power Factor

    0.95

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 105.45 mm x Ø292 mm

    Dimensions

    105.45 mm x Ø292 mm

  • 105.45 mm

    Height

    105.45 mm

  • IK09

    IK Protection

    IK09

  • 200 lm/W

    Luminous Efficiency

    200 lm/W

LEDNIX

150W PHILIPS XITANIUM LEDNIX 0-10V Dimmable UFO HBM LED High Bay 200lm/W

LEDNIX
Download technical datasheet

Ref. Ledkia: 121966

Ref. Fab: HBM-200-C90

Colour Temperature Cool White 5700K

Optic 90º

In stock, estimated delivery 9 to 10 days

93,99 €

VAT included
Energetic efficiency

In stock, estimated delivery 9 to 10 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Dimensions

  • Diameter292 mm
  • Height105.45 mm
  • Weight1.8 kg

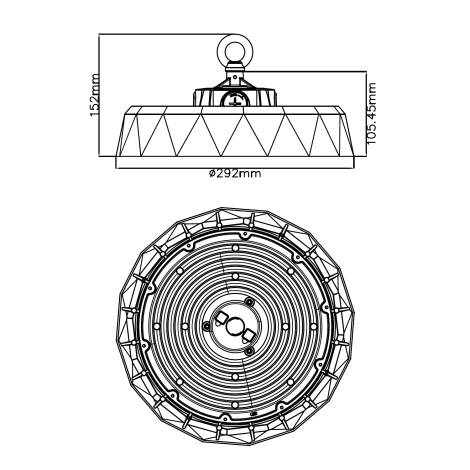

Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, DLC, ERP, UKCA
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index70
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5700K
    • DimmableYes
    • Driver Intensity660 mA - 1100 mA
    • Driver Power10.6 W-200 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension160 V DC - 260 V DC
    • Electrical Insulation ClassI
    • Fitting MaterialAluminium, PC
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK09
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourCool White
    • Lumens40000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency200 lm/W
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Power Factor0.95
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage200 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-30 °C~+45 °C

  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandLEDNIX
    • LocationOutdoor, Indoor
    • Product SeriesHBM
    • Warranty7 years

  • Product Information

    • Light SourceSMD2835
    • Type Of Dimming1-10 V
    • Type Of Driver1-10V dimmable
Outdoor LED bollard

Description

The 200W PHILIPS Xitanium LEDNIX 1-10V Dimmable UFO HBM Industrial LED Highbay 200lm/W is a high-performance lighting solution designed for industrial and outdoor environments that require high reliability and power, ensuring efficient energy usage thanks to its 200W rated power.

Features of the 200W PHILIPS Xitanium LEDNIX 1-10V Dimmable UFO HBM Industrial LED Highbay 200lm/W

This LED light easily adapts to a wide range of electrical installations. Its robust and durable design gives it an IP65 and IK09 protection rating, making it ideal for outdoor use, protecting it from dust and moisture, and ensuring its durability in industrial environments. Additionally, this LED light features a PHILIPS Xitanium driver that, combined with its high-quality light source, offers unique reliability and flexibility, providing high performance and optimal efficiency that enable significant energy savings. The entire range of Xitanium drivers also includes an IP65 housing that ensures maximum durability.
