Wattage 150 W
Voltage Range 220-240V AC
Lumen 30000 lm
Diameter 292 mm
Wattage
150 W
Voltage Range
220-240V AC
Lumen
30000 lm
Diameter
292 mm
Type Of Dimming
1-10 V
Power Factor
0.95
IP Rating
IP65
Battery Operated
No
Dimensions
105.45 mm x Ø292 mm
Height
105.45 mm
IK Protection
IK09
Luminous Efficiency
200 lm/W
Industrial UFO LED High Bay 150W 0-10V Dimmable 200lm/W HBM with PHILIPS Xitanium Driver
Ref. Ledkia: 121971
Colour Temperature Warm White 3000K
Optic 90º
- Available in other selections.
In Stock, delivery in 15-20 days
Before 66,99 €
47,99 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

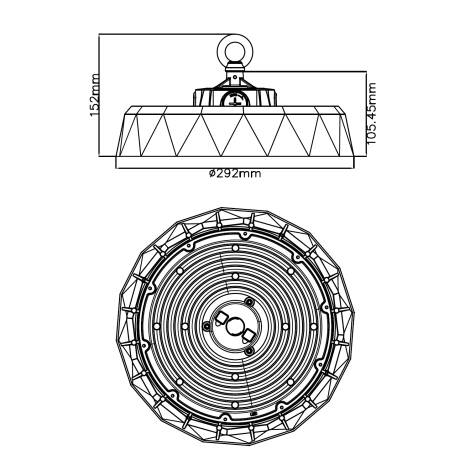

Dimensions
- Weight1.8 kg
- Dimensions105.45 mm x Ø292 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceSMD2835
- Type Of Dimming1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage150 W
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK09Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Optic90ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Working Temperature-30 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- CertificatesCE, RoHS, DLC, ERP, UKCA
- Guarantee7 years
- Product SeriesHBM
LED Features
- Colour Rendering Index85Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature3000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourWarm White
- Lumen30000 lm
- Luminous Efficiency200 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Power Factor0.95
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium, PC
Driver Information
- Driver BrandPHILIPS Xitanium
- Driver Intensity520 mA - 840 mA
- Driver Power8.3 W-150 W
- Driver Tension160 V DC - 260 V DCVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver1-10V
- WifiNo
Description
The Industrial UFO LED High Bay 150W is a robust lighting solution designed for demanding industrial environments. Featuring a luminous efficiency of 200 lm/W and equipped with a PHILIPS Xitanium driver with 0-10V dimming, it delivers reliable performance and precise control for high bay applications.
General information about Industrial UFO LED High Bay 150W 0-10V Dimmable 200lm/W HBM with PHILIPS Xitanium Driver
This high bay luminaire incorporates an aluminium and PC construction ensuring durability and optimal heat dissipation. It offers a luminous flux of 30,000 lumens with a CRI of 85 for accurate colour rendering. The unit operates within a voltage range of 220-240V AC and integrates a PHILIPS Xitanium driver with 1-10V dimming capability, providing effective light intensity control. Its IP65 rating guarantees protection against dust and water jets, while IK09 impact resistance enhances robustness in industrial settings. The luminaire belongs to the HBM series, known for high light output and narrow beam angles suitable for large heights. Electrical insulation class I and a power factor of 0.95 contribute to its electrical safety and efficiency.
Use and applications
The Industrial UFO LED High Bay is designed for installation in warehouses, loading and unloading bays, and industrial units, where durable and efficient lighting is essential. Its suitability for both indoor and outdoor environments is supported by its IP65 protection, ensuring reliable operation in exposed conditions. Industry and production sectors benefit from its high luminous output and dimmable driver, allowing adaptation to varying lighting requirements and energy management.
Operating reliably between -20 °C and +50 °C, this luminaire meets the demands of industrial zones and quality control areas. The combination of IK09 impact resistance and robust materials supports long-term installation in challenging environments. Its integration with a PHILIPS Xitanium driver ensures stable performance and ease of control, facilitating maintenance and operational safety.
Key benefits
- High luminous efficiency thanks to advanced LED technology and effective heat dissipation.
- Robust protection against dust and water ingress with IP65 rating, suitable for harsh industrial conditions.
- Impact resistance IK09 enhances durability in demanding environments.
- Precise dimming control via 1-10V driver for adaptable lighting levels.
- Reliable electrical safety with class I insulation and high power factor.
Highlighted specifications
Power: 150 W; Luminous flux: 30,000 lm; CRI: 85; Protection: IP65, IK09; Voltage: 220-240V AC; Driver: PHILIPS Xitanium 1-10V dimmable.
Installation and maintenance
Installation must follow the indicated mounting system for high bay luminaires to ensure optimal performance and safety. The luminaire requires connection to a 220-240V AC supply and integration with compatible dimming controls. Maintenance is facilitated by its durable construction and standard electrical insulation class I. Disconnect the power supply before any intervention.
