  • 9 W
    Wattage 9 W
  • 990 lm
    Lumens 990 lm
  • Ø85 mm
    Cut Out Dimensions Ø85 mm
  • 95 mm
    Diameter 95 mm

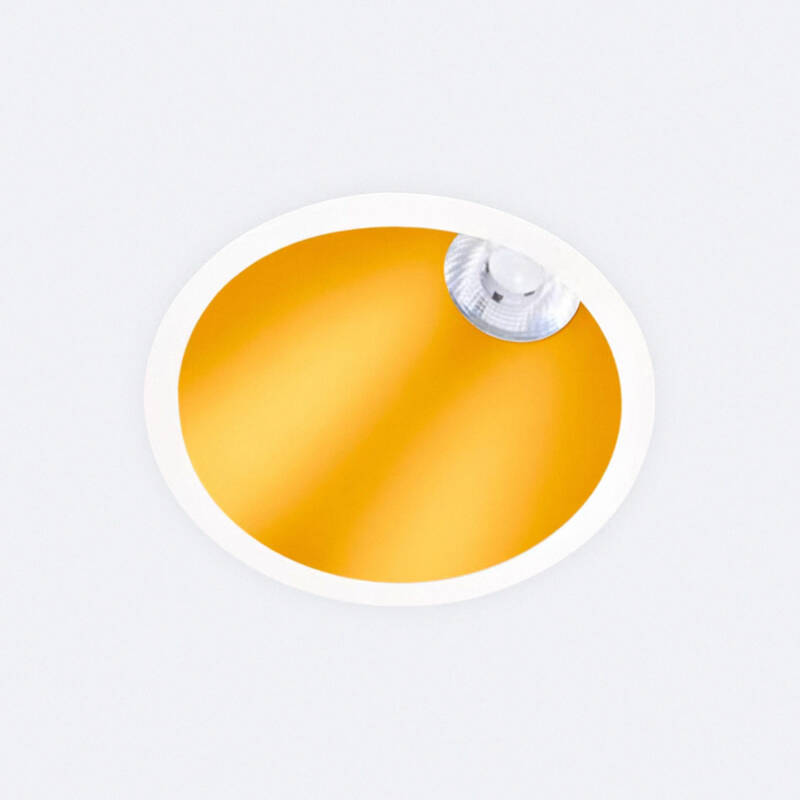

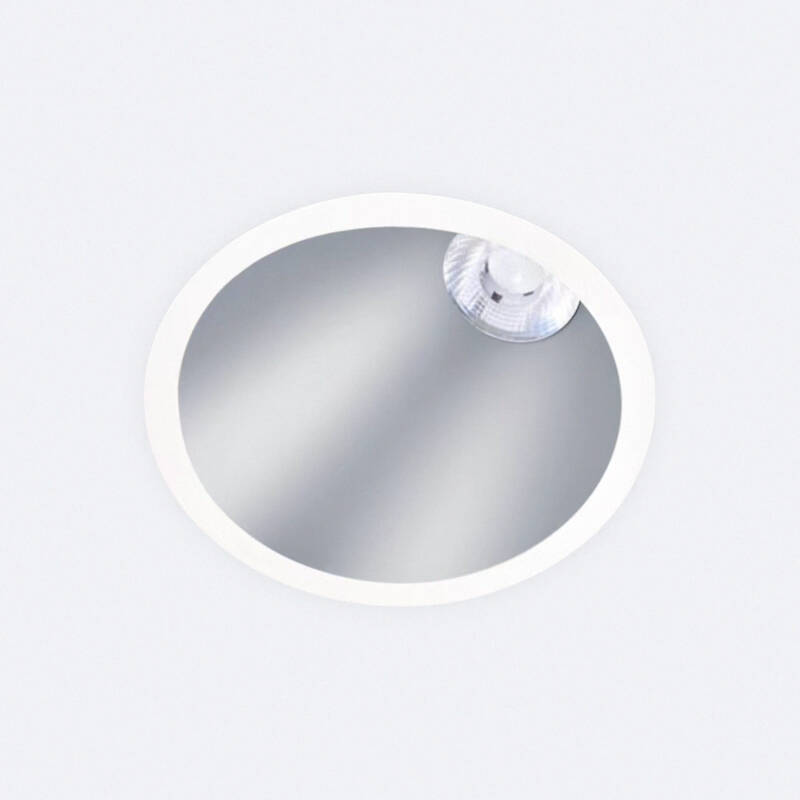

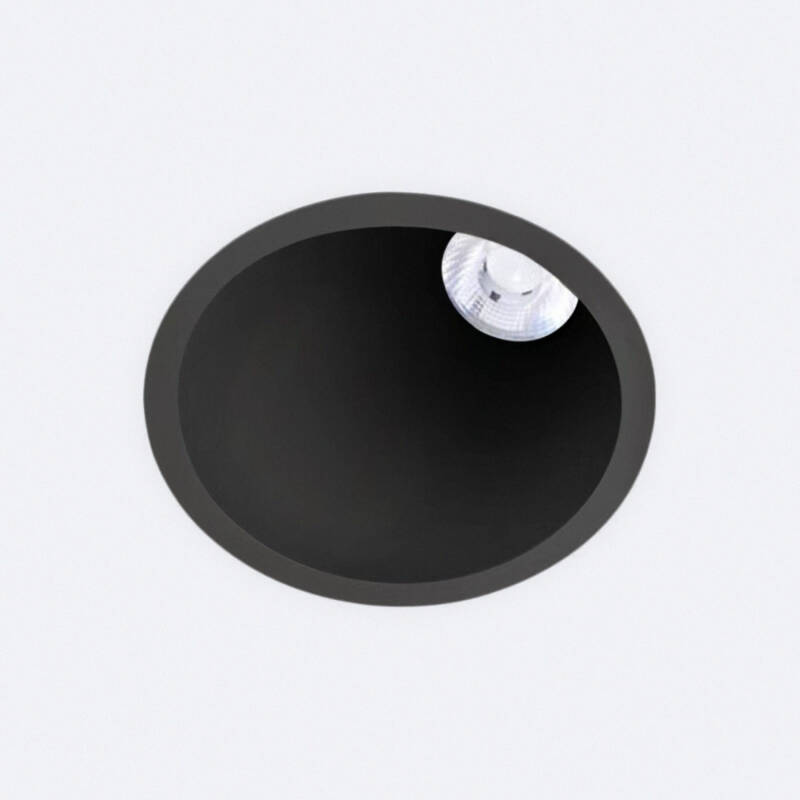

Image of Areni Conical 20º Inclination 9W / 12W LED Downlight Ø85mm Cut Out
  • 9 W

    Wattage

    9 W

  • 990 lm

    Lumens

    990 lm

  • Ø85 mm

    Cut Out Dimensions

    Ø85 mm

  • 95 mm

    Diameter

    95 mm

  • 86 mm

    Height

    86 mm

  • 220-240V AC

    Voltage Range

    220-240V AC

  • IP20

    IP Rating

    IP20

  • 110 lm/W

    Luminous Efficiency

    110 lm/W

  • 36º

    Beam Angle

    36º

  • Aluminium, PC

    Fitting Material

    Aluminium, PC

  • -20 °C~+70 °C

    Working Temperature

    -20 °C~+70 °C

Areni Conical 20º Inclination 9W / 12W LED Downlight Ø85mm Cut Out

Download technical datasheet

Ref. Ledkia: 152109

Wattage 9 W

Colour Temperature 4000K Neutral White

Colour Gold

Pre-Order, estimated shipping from 17/06/2025

12,49 €

VAT included
Energetic efficiency

Pre-Order, estimated shipping from 17/06/2025

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Return

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 5-7 days Free Delivery

    If you place your order today before 18:00h, delivery within 5-7 days (working days).


    Shipping is free on purchases over 49,99 € (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
      ColourGold
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
      Driver Intensity250 mA - 300 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension30 V-40 V
    • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
      Fitting MaterialAluminium, PC
    • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
      Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
      InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
      Light ColourNeutral White
    • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
      LocationIndoor
    • Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
      Lumens990 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency110 lm/W
    • Physical configuration of the product, such as round, square, or elongated. It helps to integrate it into the aesthetics and design of the space where it will be installed.
      ShapeCircular
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
      Wattage9 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+70 °C

  • Product Data

    • Number or name that identifies the series or product line to which an item belongs, generally indicating the style, characteristics or version of a range.
      Product SeriesAreni
    • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
      Warranty3 years

  • Product Information

    • It reflects the type of driver used in the product, which regulates the energy that powers the LEDs or electrical components. It can be constant current, voltage, or with other configurations.
      Type Of DriverLIFUD
Illuminate your outdoor spaces

Description

The Areni Conical 20º Inclination 9W / 12W LED Downlight Ø85mm Cut Out  is the ideal solution for replacing rings with halogen bulbs or old high consumption halogen downlights. Its conical design optimises light distribution and reduces glare, providing more comfortable and efficient lighting in commercial, residential and hospitality environments.

Efficiency and light output

Available in 9W and 12W, this LED downlight offers a high-performance alternative with up to 10 times lower energy consumption compared to traditional systems. Its COB LED technology provides powerful and homogeneous illumination with a colour rendering index (CRI 90), ensuring natural colour perception and improving visibility in any application.

Conical anti-glare design

Thanks to its conical design, this downlight minimises glare, creating a more comfortable environment and reducing visual fatigue. Its optimised, recessed optics direct the light efficiently, ensuring focused illumination without unnecessary scattering. This makes it an ideal choice for spaces where high visual comfort is required, such as offices, corridors, hotels and shops.

Professional and adaptable installation

Its high quality aluminium structure guarantees excellent thermal dissipation, extending the life of the LED and preventing overheating. With a Ø85 mm cut-out, it is easy to install in false ceilings, adapting to smaller spaces without the need for structural modifications.

Advantages over traditional systems

Unlike halogen downlights, this LED spotlight eliminates the need for external transformers, reducing energy consumption and eliminating electrical noise. Its external No Flicker driver guarantees stable, flicker-free illumination, protecting the eyesight and improving the visual experience. It also allows driver interchangeability, offering compatibility with dimming systems such as TRIAC, DALI or 1-10V, making it a versatile solution for projects where lighting control is required in offices, hotels and commercial spaces.

Applications and versatility

Designed to provide homogeneous, shadow-free illumination, its controlled beam optimises light distribution in any space. Thanks to its high performance and anti-glare design, this spotlight is ideal for lighting walkways, reception areas, retail, commercial, office and residential spaces. Its compatibility with dimmable drivers makes it a flexible option for professional lighting projects.
