Wattage 7 W
Voltage Range 220-240V AC
Lumen 540 lm
Cut Out Dimensions Ø70 mm
Wattage
7 W
Voltage Range
220-240V AC
Lumen
540 lm
Cut Out Dimensions
Ø70 mm
Diameter
90 mm
Glare Factor
UGR <19
IP Rating
IP20
Battery Operated
No
Dimensions
25 mm x Ø90 mm
Height
25 mm
Luminous Efficiency
82 lm/W
Beam Angle
60º
Round 7W SOLID Slim LED Downlight Ø70mm
Ref. Ledkia: 81144
(23)4.5 out of 5 stars
Colour Temperature Warm White 3000K
Premium range
6,49 €3,39 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

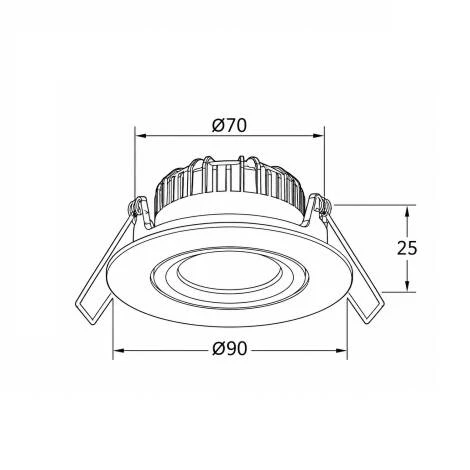

Dimensions
- Dimensions25 mm x Ø90 mm
- Cut Out DimensionsØ70 mm
Downloads
PDF Datasheet 81144_163331 IE
DoC_81144_163331
DoC_81144_163331
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity25 mA
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceCOB
- Nominal Voltage170 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage7 W
LED Features
- Beam Angle60ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index86Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature3000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <19Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourWarm White
- Lumen540 lm
- Luminous Efficiency82 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- Ambient Working Temperature-30 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeCircular
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- WifiNo
Description
This downlight LED features a slim, circular design with a 7W power consumption and a cut-out diameter of Ø70 mm, ideal for recessed installation in indoor environments.
General information about Round 7W SOLID Slim LED Downlight Ø70mm
The Round 7W SOLID Slim LED Downlight Ø70mm is a recessed, directional LED downlight designed for indoor use. It offers a luminous flux of 540 lumens with a luminous efficiency of 82 lm/W, delivering quality illumination with a beam angle of 60º. The fitting is made of durable PC material and features a white finish. It has a colour rendering index (CRI) of 86, ensuring good colour fidelity, and a glare factor UGR <19 for visual comfort. The downlight operates within a voltage range of 220-240V AC and has an ambient working temperature between -30 °C and +45 °C. It holds CE, RoHS, and UKCA certifications, confirming compliance with safety and environmental standards.
Use and applications
This downlight is suitable for various indoor spaces including offices, stores, and shopping centres. Its directional COB LED source makes it ideal for focused lighting in customer service areas, workstations, meeting rooms, and internal corridors.
Its compact dimensions (25 mm height x Ø90 mm diameter) and recessed installation type allow seamless integration into ceilings, providing a clean and professional look.
Highlighted specifications
Power: 7 W; Cut Out Dimensions: Ø70 mm; Colour Rendering Index: 86; Beam Angle: 60º.
Installation and maintenance
Installation is recessed, requiring a Ø70 mm cut-out. The fitting includes spring clips for secure mounting. Disconnect the power supply before any intervention. Maintenance consists of periodic cleaning to ensure optimal light output and visual performance.
