PIR Motion Sensor for E27 Bulbs

The PIR Motion Detector for E27 Bulbs is a sensor device designed for motion detection using PIR technology, operating at a voltage range of 220-240V AC and suitable for indoor environments. It features a 360° detection range and works within an ambient temperature range from -20 °C to +50 °C, making it compatible with standard electrical installations.

General information about PIR Motion Detector for E27 Bulbs

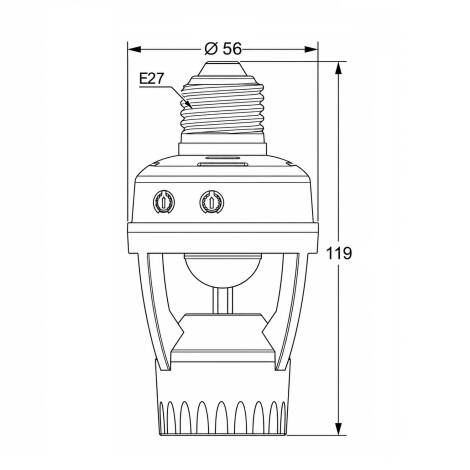

This device is a PIR motion detector with an E27 base, designed to integrate into lighting control systems by detecting infrared emissions from people and heat sources. It activates when motion is detected within a 6-metre range and deactivates when no movement is sensed. The sensor includes adjustable ON-time settings from 10 seconds up to 5 minutes and sensitivity to ambient light conditions, enabling operation during day and night. The detector is built with a PCB fitting material and measures 116.5 mm in length with a diameter of 55.5 mm. It has an IP20 protection rating, suitable for indoor use, and complies with CE, RoHS, and UKCA certifications, ensuring safety and regulatory compliance. The device operates at a frequency of 50-60 Hz and nominal voltage between 100 V and 240 V.

Use and applications

The main function of this motion detector is to automate lighting control by detecting presence through PIR technology. It is intended for indoor installations, particularly in environments where motion-activated lighting enhances functionality and energy management. This product fits well in commercial or residential sectors requiring reliable presence detection, thanks to its adjustable sensitivity (10 Lux to 2000 Lux) and detection angle of 360°.

For optimal performance, the sensor should be installed at heights between 2 and 3.5 metres, ensuring no obstructions interfere with detection. The device requires a compatible E27 lamp and supports a maximum load of 60W. It does not include an app or wireless connectivity, so control is direct via the sensor. This solution offers straightforward integration into existing lighting setups, providing precise motion-based activation and timing control.

Key benefits

• Reliable presence detection thanks to PIR sensor technology with a 360° detection angle.
• Adjustable ON-time and sensitivity settings for tailored lighting control based on ambient light.
• Compatible with standard E27 lamp fittings, facilitating easy installation and replacement.
• Wide voltage range (100 V - 240 V) suitable for typical indoor electrical systems.
• Certified safety and quality with CE, RoHS, and UKCA marks, ensuring compliance with European standards.

Highlighted specifications

Sensor Type: PIR; Voltage Range: 220-240V AC; Frequency: 50-60 Hz; Detection Distance: 6 m; Ambient Temperature Range: -20 °C to +50 °C

Installation and maintenance

The PIR Motion Detector is designed for straightforward installation into E27 lamp holders, requiring no additional mounting accessories. It must be positioned to avoid obstructions that could block infrared detection, ensuring accurate sensor performance. Installation height is recommended between 2 and 3.5 metres. The device supports a maximum load of 60W and should not be installed inside closed luminaires to prevent overheating and ensure sensor functionality. Follow electrical safety protocols during installation.

Disconnect the power supply before any intervention.

Frequently asked questions

• What is the maximum load supported? — The device supports a maximum load of 60W.
• Is this sensor suitable for outdoor use? — The device has an IP20 rating and is intended for indoor use only.
• Does this detector include wireless connectivity? — No, it does not include app control or wireless features.
• What is the detection range? — The sensor detects motion up to 6 metres within a 360° angle.
