Range Expert
  • 75 W
    Wattage 75 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 11250 lm
    Lumen 11250 lm
  • 105
    Number of LEDs 105

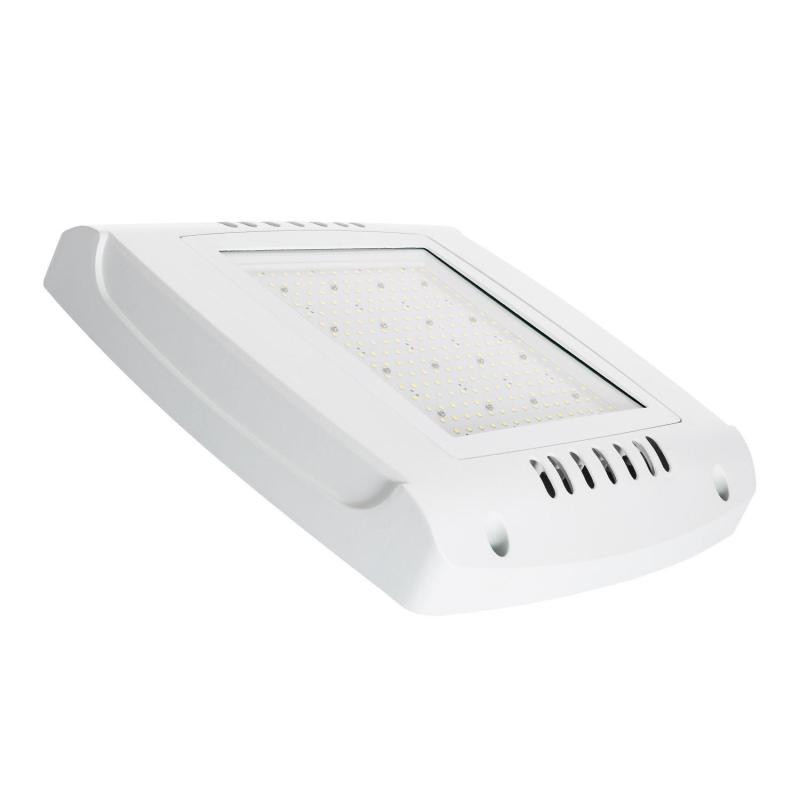

Image of 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver
    Image of 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver
    Image of 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver
    Image of 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver
    Image of 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver
    Image of 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver
    Image of 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver
    Image of 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver
1 / 7
  • 75 W

    Wattage

    75 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 11250 lm

    Lumen

    11250 lm

  • 105

    Number of LEDs

    105

  • 1-10 V

    Type Of Dimming

    1-10 V

  • 0.95

    Power Factor

    0.95

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 65 mm x 400 mm x 400 mm

    Dimensions

    65 mm x 400 mm x 400 mm

  • 400 mm

    Width

    400 mm

  • 65 mm

    Height

    65 mm

  • IK08

    IK Protection

    IK08

75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver

Download technical datasheet

Ref. Ledkia: 79756

Colour Temperature Daylight 5000K

Before 161,60 €

-17% (You save 26,94 €)

134,66 €

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Depth400 mm
  • Width400 mm
  • Height65 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_79756_160600

Certificates and Stamps

CertificateCertificateCertificateCertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 265 V
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection1 kV
    • Type Of Dimming1-10 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage75 W

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK08
    • InstallationSurface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic120º

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index70
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Light ColourDaylight
    • Lumen11250 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency150 lm/W
    • Number of LEDs105
    • Power Factor0.95

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialAluminium, Glass

  • Product Information

    • BrandWisteria
    • CertificatesCE, RoHS, CB, ISO9001, SAA, ISO14001, ISO45001
    • Guarantee3 years

  • Driver Information

    • Driver BrandPHILIPS Xitanium
    • WifiNo

Description

The 75W 150lm/W Canopy LED Spotlight for Gas Stations 1-10V Dimmable LUMILEDS Philips Xitanium Driver  for Petrol Stations offers an intense and wide light due to its large 120° opening angle. It features a compact and waterproof aluminium housing with a high degree of protection against dust and water IP65. In addition, this LED Canopy spotlight does not allow emerging fuel gases to penetrate into the interior.

It has the protection and design suitable for use as lighting in petrol stations, as well as an attractive and elegant design and a luminous efficiency of 150 lm/W. It integrates a driver inside, to ensure correct stagnation and avoid explosions due to gases derived from the fuel. The integrated driver is a Philips Xitanium Driver, a prestigious brand leader in the market.

Due to its high quality, it is developed under strict quality parameters, ensuring optimum heat dispersion and maximising the service life.

Specially designed for lighting in petrol stations, it can also be used for industrial applications, inside warehouses, or outdoors, work areas, etc.

*Recommended for a maximum height of 5 metres.
