Wattage 80 W
Voltage Range 220-240V AC
Lumen 12000 lm
Diameter 321 mm
Wattage
80 W
Voltage Range
220-240V AC
Lumen
12000 lm
Diameter
321 mm
Number of LEDs
360
Type Of Dimming
0-10 V
Power Factor
0.9
IP Rating
IP65
Battery Operated
No
Dimensions
165 mm x Ø321 mm
Height
165 mm
IK Protection
IK08
0–10V Dimmable LED Canopy Light for Gas Stations LUMILEDS 150lm/W SOSEN
Ref. Ledkia: 180979
Wattage 80 W
Colour Temperature Selectable (Cool - Daylight) 4000K - 5000K - 5700K
In Stock, delivery in 15-20 days
146,99 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

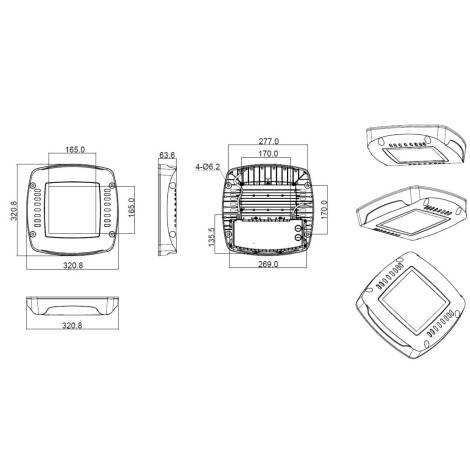

Dimensions
- Dimensions165 mm x Ø321 mm
Downloads
PDF Datasheet 180979_365868 IE
Specifications_DriverSOSEN
DoC_180979_365868
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage120 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage80 W
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000K - 5000K - 5700KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourSelectable (Cool - Daylight)
- Lumen12000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Number of LEDs360
- Power Factor0.9
- Standard colour deviation (MacAdam)SDCM ≤ 7
Materials and Finishes
- ColourWhite
- Fitting MaterialDie Cast Aluminium, Glass
- Includessafety cable, Driver
- RAL Colour1127
Mechanical Features
- Ambient Working Temperature-20 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketCeiling with U-bracket
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Optic120ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- SupportSurface
Product Information
- CertificatesCE, RoHS, EMC
- Guarantee5 years
- Product SeriesCanopy
Driver Information
- Auxiliary Cable0-10V
- Driver BrandSOSEN
- Driver Intensity0.19 A - 0.75 A
- Driver Power34.2 W-150 W
- Driver Tension180 V - 300 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
- WifiNo
Description
The 0–10V Dimmable LED Canopy Light is designed for outdoor gas station lighting, offering a luminous efficiency of 150 lm/W and a 120º optic angle for broad coverage and uniform illumination. Featuring a die cast aluminium body with a glass diffuser, it ensures protection with an IP65 rating and impact resistance of IK08, suitable for demanding environments.
General information about 0–10V Dimmable LED Canopy Light for Gas Stations LUMILEDS 150lm/W SOSEN
This LED canopy light belongs to the Canopy series, specifically engineered for installation under canopies and covered areas such as petrol stations and parking zones. It integrates a LUMILEDS SMD2835 light source with a colour rendering index (CRI) of 70 and a standard colour deviation of SDCM ≤ 7. The fixture features a 0% ULOR rating, optimising downward light distribution. It includes a 0–10 V dimmable driver and comes with a safety cable for secure installation. Overvoltage protection up to 6 kV enhances operational reliability.
Use and applications
Ideal for outdoor use in the energy sector, particularly at gas stations, this canopy light is suitable for mounting on surfaces such as ceilings with a U-bracket. It is designed to illuminate access points, façades, yards, perimeter walls, and internal roads, ensuring safety and visibility in these critical areas.
Key benefits
- High luminous efficiency of 150 lm/W provides effective illumination with controlled energy use.
- Robust protection with an IP65 rating and IK08 impact resistance for durability in outdoor environments.
- 0–10 V dimming capability allows precise adjustment of light levels to suit varying operational needs.
- Overvoltage protection up to 6 kV safeguards the fixture against electrical surges.
- Long life span with a rated operating life of 100,000 hours reduces replacement frequency and maintenance.
Highlighted specifications
Power factor: 0.90; Operating temperature range: -20 °C to +45 °C; Electrical insulation class: Class I.
Installation and maintenance
The light is designed for surface mounting on ceilings using a U-bracket. Installation must follow the specified mounting system and connection guidelines. The product includes a driver and a safety cable to support secure and compliant installation. Disconnect the power supply before any intervention.
Frequently asked questions
- What type of dimming does this canopy light support? — It supports 0–10 V dimming for adjustable light output.
- Is the fixture suitable for outdoor use? — Yes, it has an IP65 protection rating suitable for outdoor environments.
- What is the impact resistance rating? — The product has an IK08 rating for resistance to mechanical impacts.
- Does it include overvoltage protection? — Yes, it includes protection up to 6 kV.
- What is the expected operational life? — The fixture has a rated life of 100,000 hours.
