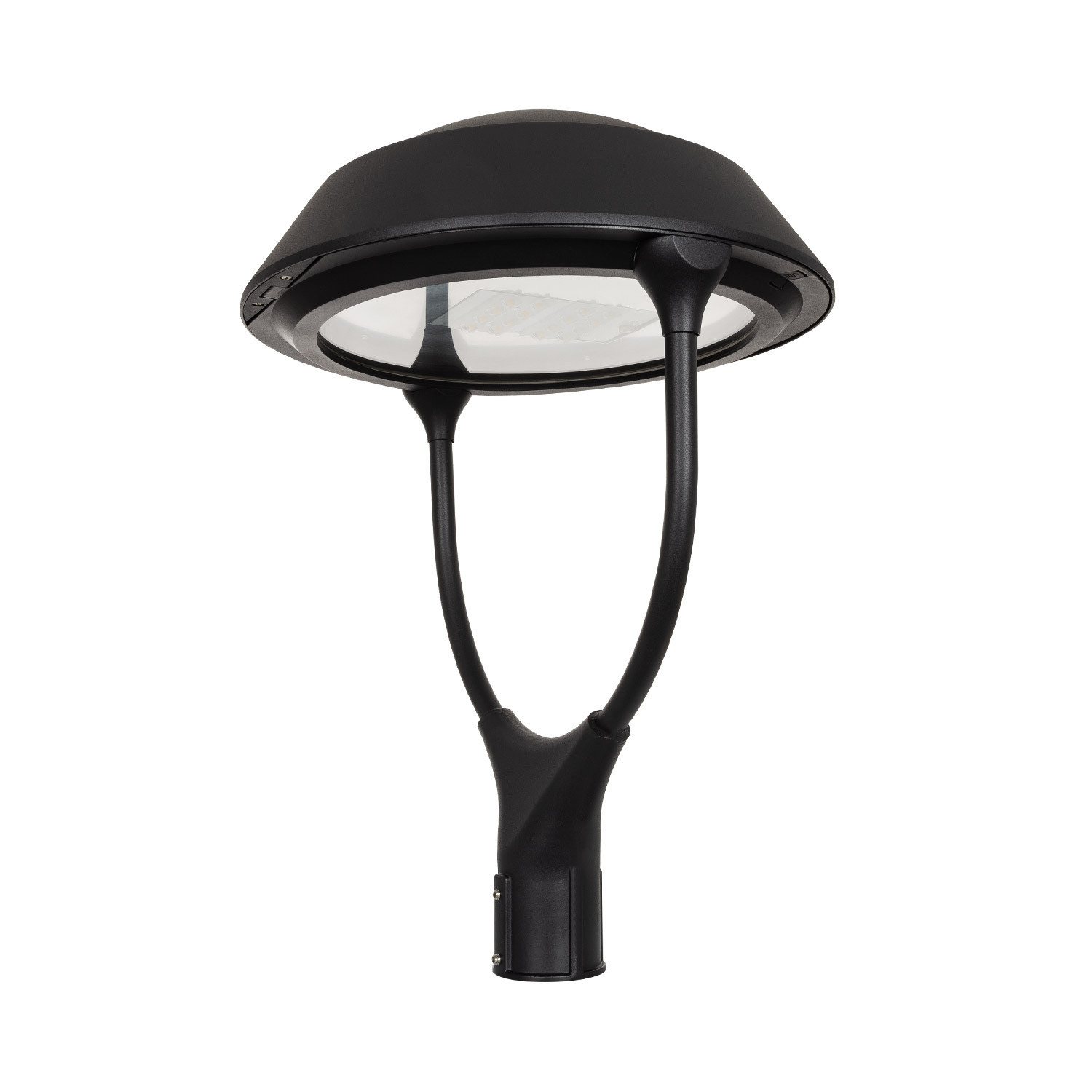

40W LED Street Light 1-10V Dimmable LUMILEDS PHILIPS Xitanium Aventino
Price
Before €
€
Price not available
Ref: 70529 / LMNR-VNTN-40W-PHLPS-XTNM-10V
The 40W LED Street Light 1-10V Dimmable LUMILEDS PHILIPS Xitanium Aventino is one of the latest generation of luminaires, offering instantaneous lighting thanks to its LED technology, as well as high power. It is the ideal replacement for the old discharge lamps, improving the quality of the light and notably reducing its energy consumption.
Incorporated in the LUXEON 5050 2D light source. The light source is protected with tempered glass with an IP66 protection factor that makes it weatherproof. Lumileds technology guarantees high light output with extreme durability. Lumileds is a company that develops, manufactures and distributes lighting and holds more than 200 patents related to LED technology.
The body of the luminaire has been manufactured using the injection method to guarantee the optimum quality of the heatsink, in high quality aluminium. It has an interior hinge that improves its aesthetics without losing its versatility. An anti-corrosion treatment has been applied to it, both chemical and mechanical, which is resistant to UV rays and which further improves its aesthetic durability. In addition, for greater safety, the luminaire has a surge protector.
A LED driver converts the alternating current from the mains supply into direct current, which can be used to illuminate the LED chips. The Xitanium Driver that it incorporates is from the prestigious company PHILIPS, one of the most innovative and prestigious brands in the lighting industry. This driver has been specially designed for Public Lighting. This range of drivers offers a unique reliability and flexibility, providing a high performance and optimum efficiency of LEDs. The entire range of Xitanium drivers incorporates an IP65 housing that protects against humidity, vibrations and temperature, guaranteeing maximum durability. In addition, it includes both over-temperature and surge protection.
This version is capable of regulating the luminaire by means of 1-10V regulation, that is, the voltage of an alternate circuit is modified to regulate the intensity of light in the luminaire.
Reducing energy consumption means significant savings for any urban centre. Enjoy the best street lighting with the different options of our Aventino Luminaire at your online shop Ledkia.
* The colour code of the luminaire is RAL 9005
* Fixing diameter: from Ø50 ~ Ø75mm.
Power: | 40 W |
Power Factor: | 0.95 |
Voltage: | 220-240V AC |
Multi-Voltage: | 100-240V AC |
Frequency: | 50-60 Hz |
Protection Class: | I |
Dimmable: | 1-10 V |
Light Source: | LUMILEDS SMD5050 |
Number of LEDs: | 24 |
CRI: | 80 |
Lumens: | 5400 lm |
Luminous Efficiency: | 135 lm/W |
LED Performance: | 145 lm/W |
Energy Efficiency 2021 (UE-1369/2017): | A+ |
Energy Efficiency 2023 (UE-2019/2015): | D |
Lens Type: | Transparent |
Use: | Outdoor |
IP Protection: | IP66 |
IK Protection: | IK09 |
Material: | Aluminium |
Size: | Ø485x696 mm |
Height: | 696 mm |
Diameter: | Ø485 mm |
Fixing Diameter: | Ø75 mm |
Total Weight: | 6 kg |
Working Temperature: | -20°C ~ +45°C |
Driver: | PHILIPS Xitanium |
Life Span: | 100,000 Hours |
Warranty: | 5 Years |
Certifications: | CE & RoHS, ENEC |
Brand Component | LUMILEDS |
