Power:
40 W
Voltage:
220-240V AC
Lumens:
6000 lm
Number of LEDs:
24
Dimmable:
1-10 V
Power Factor:
0.95
IP Protection:
IP66
Size:
440x766 mm
IK Protection:
IK09
Luminous Efficiency:
150 lm/W
Beam Angle:
140ºx60º / 120ºx120º
Material:
Glass, Aluminium

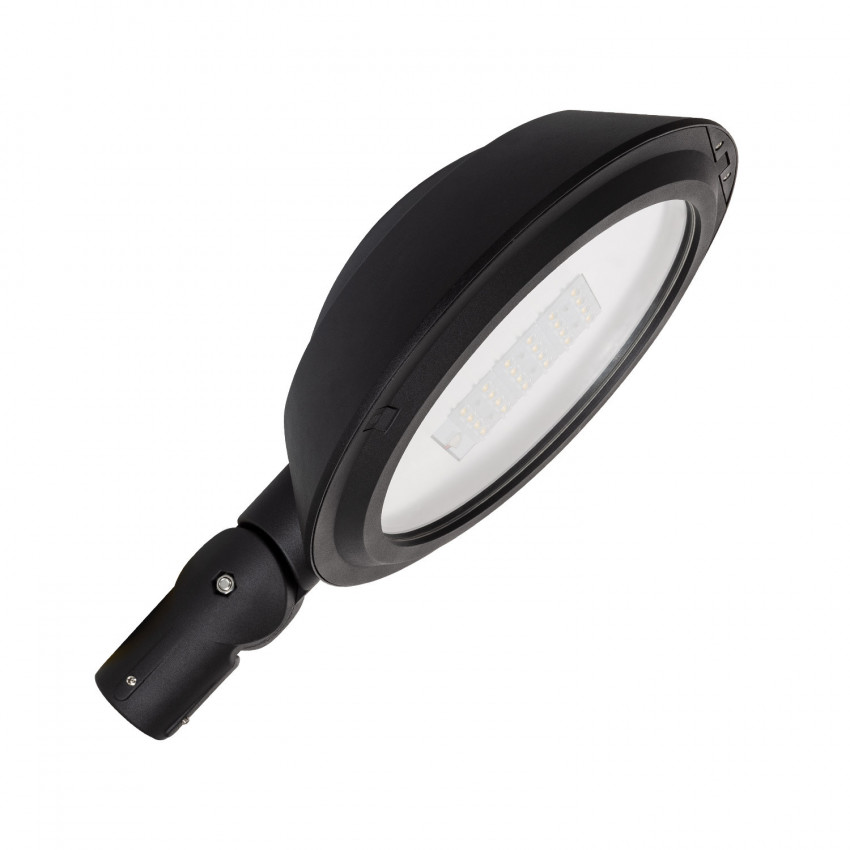

40W LED Street Light 1-10V Dimmable LUMILEDS PHILIPS Xitanium Villa
Ref. Ledkia: 70510
Ref. Fab: VLL-40W-PHLPS-XTNM-10V-AS-BF
Choose Colour Temperature
Daylight 6000K
Choose Optic
Asymetric 140ºx60º
In stock, estimated delivery 9 to 10 days
333,00 €
23% VAT includedIn stock, estimated delivery 9 to 10 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Don't forget the accessories 3
Column Support for a Villa LED Street Light
In Stock, delivery in 15-20 days
8,33 €
60cm Wall Support for Street Lights
In Stock, delivery in 15-20 days
1 options39,23 €
70cm Wall Support for Street Lights
Pre-Order, estimated shipping from 22/05/2024
1 options95,14 €
Dimensions
- Total Weight:10,2Kg
- Size:440x766 mm
Downloads
Technical Data Sheet PDF
Xitanium Outdoor LED Driver
Certificates and Stamps
Energy Efficiency
Regulation 2021Regulation 2023Technical Specifications
- Power:40 W
- Power Factor:0.95
- Voltage:220-240V AC
- Multi-Voltage:100-240V AC
- Frequency:50-60 Hz
- Protection Class:I
- Dimmable:1-10 V
- Light Source:LUMILEDS SMD5050
- Number of LEDs:24
- Lumens:6000 lm
- Luminous Efficiency:150 lm/W
- LED Performance:160 lm/W
- Energy Efficiency 2021 (UE-1369/2017):A+
- Energy Efficiency 2023 (UE-2019/2015):C
- Beam Angle:140ºx60º / 120ºx120º
- Use:Outdoor
- IP Protection:IP66
- IK Protection:IK09
- FHSINST:Less than 0,1%
- Material:Aluminium, Glass
- Size:440x766 mm
- Fixing Diameter:Ø77 mm
- Total Weight:10,2Kg
- Working Temperature:-20°C ~ +45°C
- Driver:PHILIPS Xitanium
- Life Span:100,000 Hours
- Warranty:5 Years
- Certifications:CE & RoHS, ENEC
- Brand ComponentLUMILEDS
Our advantages
Team of experts at your service
Personal customer service
24-hour express delivery
Stock of more than 12,000 references
Warranty up to 5 years
Our professionals guarantee you the highest quality and reliability
Best price guarantee
Compared to the most outstanding websites in the industry
Description
The 40W LED Street Light 1-10V Dimmable LUMILEDS PHILIPS Xitanium Villa is one of the latest generation of luminaires, offering instantaneous lighting thanks to its LED technology, as well as high power. It is the ideal replacement for the old discharge lamps, improving the quality of light and significantly reducing its energy consumption.
Characteristics of the 40W LED Street Light 1-10V Dimmable LUMILEDS PHILIPS Xitanium Villa
Incorporated in the LUXEON 5050 2D light source. The light source is protected with tempered glass with an IP66 protection factor that makes it weatherproof. Lumileds technology guarantees high light output with extreme durability. Lumileds is a company that develops, manufactures and distributes lighting and holds more than 200 patents related to LED technology.
The body of the luminaire has been manufactured using the injection method to guarantee the optimum quality of the heatsink, in high quality aluminium. It has an interior hinge that improves its aesthetics without losing its versatility. An anti-corrosion treatment has been applied to it, both chemical and mechanical, which is resistant to UV rays and which further improves its aesthetic durability. In addition, for greater safety, the luminaire has a surge protector.
Characteristics of the XITANIUM Dimmable 1-10V Driver
A LED driver converts the alternating current from the mains supply into direct current, which can be used to illuminate the LED chips. The Xitanium Driver that it incorporates is from the prestigious company PHILIPS, one of the most innovative and prestigious brands in the lighting industry. This driver has been specially designed for Public Lighting. This range of drivers offers a unique reliability and flexibility, providing a high performance and optimum efficiency of LEDs. The entire range of Xitanium drivers incorporates an IP65 housing that protects against humidity, vibrations and temperature, guaranteeing maximum durability. In addition, it includes both over-temperature and surge protection.
This version is capable of regulating the luminaire by means of 1-10V regulation, that is, the voltage of an alternate circuit is modified to regulate the intensity of light in the luminaire.
Reducing energy consumption means significant savings for any urban centre. Enjoy the best street lighting with the different options of our Villa Luminaire on your online shop Ledkia
* The colour code of the luminaire is RAL 9011
* To install the Villa LED Luminaire in some columns it is necessary to use the 'LED Villa Column Fixing Support' (see accessories).
