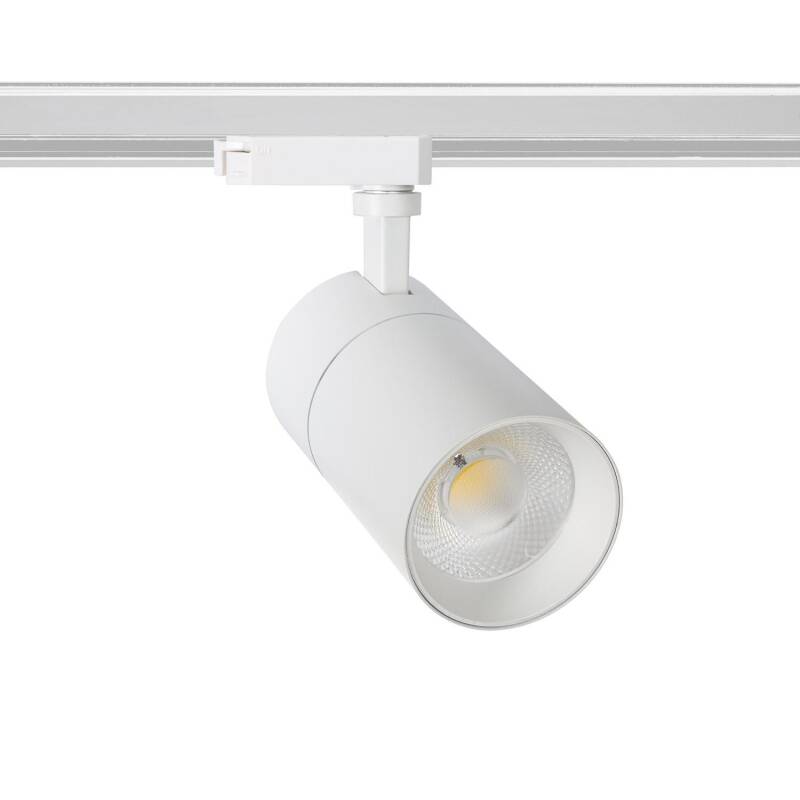

1-Circuit Track LED Spotlight 30W Mallet Dimmable White

LED track spotlight for single-circuit rails delivering 30 W with integrated driver and a focused 36º beam. It uses a COB light source and reaches an efficacy of 100 lm/W for commercial-grade highlighting with a compact cylindrical body.

General information about 1-Circuit Track LED Spotlight 30W Mallet Dimmable White

This track spotlight combines a COB module with a refined cylindrical housing to provide crisp accent lighting on single-phase rails. The aluminium and PC construction supports heat management and durability, while the integrated driver simplifies connection to mains. With a luminous output of 3.000 lm and a UGR <15 design, it enhances visual comfort by controlling glare in retail and office environments.

The directional head allows precise aiming, and the 36º distribution concentrates light onto products or focal areas. It operates within 190 V - 260 V and a working range of -20 °C a +45 °C, supporting consistent performance in indoor spaces. Finished in white, it blends cleanly with contemporary ceilings without drawing attention away from displays.

Use and applications

The track spotlight concentrates light to define zones and enhance product visibility on shelves or work surfaces. In shops, controlled glare through UGR management and a 36º beam helps shape scenes and guide the shopper’s eye. In offices or receptions, the directional adjustment focuses accents without flooding the field, supported by stable light quality from the COB module.

Electrical conditions such as 190 V - 260 V range and -20 °C a +45 °C operation enable reliable use across typical indoor environments, while single-circuit rail compatibility ensures straightforward system planning. As a result, it becomes a precise solution for accent tasks where control of the cone and comfort are required.

Key benefits

• Defined product highlighting thanks to its 36º beam.
• Enhanced visual comfort by design with UGR control.
• Efficient illumination for commercial spaces through 100 lm/W efficacy.
• Accurate aiming and flexibility via directional head.
• Consistent colour rendering suitable for retail by its CRI performance.
• Clean integration on ceilings with a discreet white finish.

Highlighted specifications

Power factor: 0,9; Dimensions: 204 mm x Ø79 mm; Lifetime: 50.000 hours; Guarantee: 3 years.

Installation and maintenance

Designed for single-circuit track systems, installation follows the indicated rail-mount procedure: insert the adaptor in the rail, align the contacts and lock the mechanism before energising the line. Ensure mechanical engagement and correct polarity of the connector to avoid poor contact. Periodically dust the reflector and body to maintain optical performance.

Disconnect the power supply before any intervention.

Specialized lighting distribution in Ireland. If you are looking to buy 1-Circuit Track LED Spotlight 30W Mallet Dimmable White with a professional warranty, the Mallet is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

• What track type is it compatible with? — It is designed for single-phase rails.
• Is dimming supported? — No dimming type is specified for this model.
• What operating conditions does it support? — It works from -20 °C a +45 °C within a nominal 190 V - 260 V range.
• What maintenance is recommended? — Keep the lens and heatsink free of dust and verify the rail contacts remain firmly locked.
• What is the expected service life? — Up to 50.000 hours in indoor environments.
