Voltage Range 220-240V AC
Diameter 108 mm
IP Rating IP20
Dimensions 26.5 mm x Ø108 mm
Voltage Range
220-240V AC
Diameter
108 mm
IP Rating
IP20
Dimensions
26.5 mm x Ø108 mm
Height
26.5 mm
Fitting Material
PC
360º Microwave Radar Surface Motion Sensor
Ref. Ledkia: 78295
(1)5 out of 5 stars
Colour White
14,49 €
VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

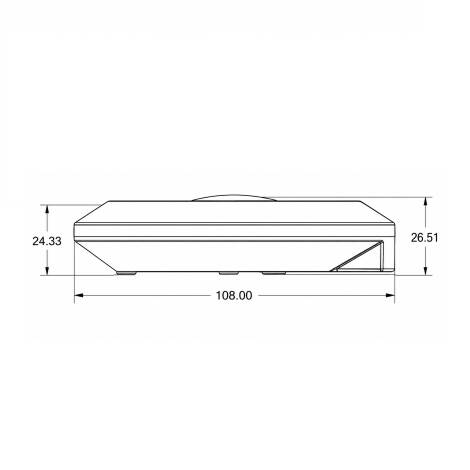

Dimensions
- Diameter108 mm
- Height26.5 mm
Downloads
Technical Data Sheet PDF
DoC_78295_158107
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-20 °C~+40 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Detection distance range8 m
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorRadar
- Sensor TypeRadar Motion
Electrical Features
- Frequency50-60 Hz
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Driver Information
- WifiNo
Description
The 360º Microwave Radar Surface Motion Sensor is an energy-saving switch capable of detecting the presence of human movement in a 360º coverage angle, thanks to its integrated radar sensor. Get comfort, security, automatism, energy saving and practicality thanks to the 360º Microwave Radar Surface Motion Sensor.
Its operation is very simple: when it detects the presence within its detection field, it automatically identifies whether it is day or night, so you can control your luminaires in complete comfort. In addition, it can work both day and night, by adjusting the position of the LUX button. You can also program the time delay to control how long it will take to switch off the luminaire once it stops detecting presence.
It can control LED luminaires up to 1000W and traditional luminaires up to 2000W. Installation is recommended at a height of 1.5-4 m and its detection distance is approximately 8 metres at a 360º angle.
Minimum standby time: 10 seconds ±3 sec.
Maximum standby time: 15 minutes ±3 min.
