Range Essential
  • 220-240V AC
    Voltage Range 220-240V AC
  • 75 mm
    Diameter 75 mm
  • IP44
    IP Rating IP44
  • 67 mm x Ø75 mm
    Dimensions 67 mm x Ø75 mm
Image of Twilight Sensor Wall Mounted 25A IP44
    Image of Twilight Sensor Wall Mounted 25A IP44
    Image of Twilight Sensor Wall Mounted 25A IP44
    Image of Twilight Sensor Wall Mounted 25A IP44
    Image of Twilight Sensor Wall Mounted 25A IP44
1 / 4
  • 220-240V AC

    Voltage Range

    220-240V AC

  • 75 mm

    Diameter

    75 mm

  • IP44

    IP Rating

    IP44

  • 67 mm x Ø75 mm

    Dimensions

    67 mm x Ø75 mm

  • 67 mm

    Height

    67 mm

  • PC

    Fitting Material

    PC

Twilight Sensor Wall Mounted 25A IP44

Download technical datasheet

Ref. Ledkia: 100313

Colour White

6,79 €

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

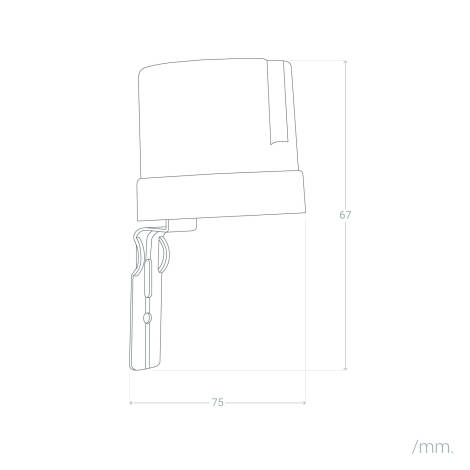

Dimensions

  • Height67 mm
  • Diameter75 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_100313_206857

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Frequency50-60 Hz
    • Sensitivity10 Lux~100 Lux
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+40 °C
    • InstallationSurface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP44
    • SensorDusk to Dawn
    • Sensor TypeDusk to Dawn Sensor

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC

Description

This product is a twilight sensor with the ability to automatically switch the light on or off depending on the ambient light. It is suitable for outdoor use and is surface mounted, either on a wall or on the luminaire pole itself.

This Twilight Sensor Wall Mounted 25A IP44 can support 6000W LED power with a maximum rated current of 25A. It has an IP44 rating, which makes it resistant to dust and water ingress. In addition, it operates on a voltage of 220V-240V and a frequency of 50/60Hz. The ambient light required to activate or deactivate the sensor is <10-50Lux.ON and >50-100Lux.OFF.
