Voltage Range 220-240V AC
Max Wattage 400 W
IP Rating IP44
Dimensions 130 mm x 75 mm x 118 mm
Voltage Range
220-240V AC
Max Wattage
400 W
IP Rating
IP44
Dimensions
130 mm x 75 mm x 118 mm
Width
75 mm
Height
130 mm
Fitting Material
PC
180º Adjustable PIR Motion Sensor
Ref. Ledkia: 100208
Colour White
7,89 €
VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

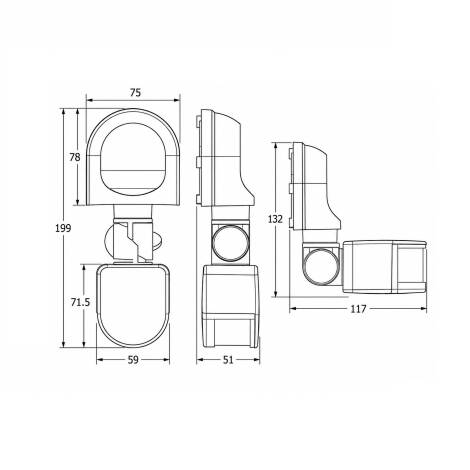

Dimensions
- Depth118 mm
- Height130 mm
- Width75 mm
Downloads
Technical Data Sheet PDF
DoC_100208_206760
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Detection distance range12 m
- Detection Range180 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP44The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
- Sensor TypePIR
Electrical Features
- Frequency50-60 Hz
- Max Wattage400 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The 180º Adjustable PIR Motion Sensor is an ideal solution to improve security and comfort indoors and outdoors. With a detection angle of 180º and an adjustable distance of 2-12 meters, it can detect movements in a wide area. The delay time is also adjustable from 10 seconds to 7 minutes , allowing for greater flexibility in system configuration.
With a 220-240V AC 50-60 Hz power supply, this sensor has a maximum load rating of 1200W for incandescent lamps and 300W for energy saving lamps and LEDs. Plus, its adjustable ambient light sensor detects the amount of light in the environment, triggering detection only when light is low.
With an IP44 rating, this PIR motion sensor is weather resistant, and can be used outdoors without worry. It is a practical and reliable solution to improve security and energy efficiency in any environment.
