Range Essential
  • 220-240V AC
    Voltage Range 220-240V AC
  • 400 W
    Max Wattage 400 W
  • Ø73 mm
    Cut Out Dimensions Ø73 mm
  • 73 mm
    Diameter 73 mm

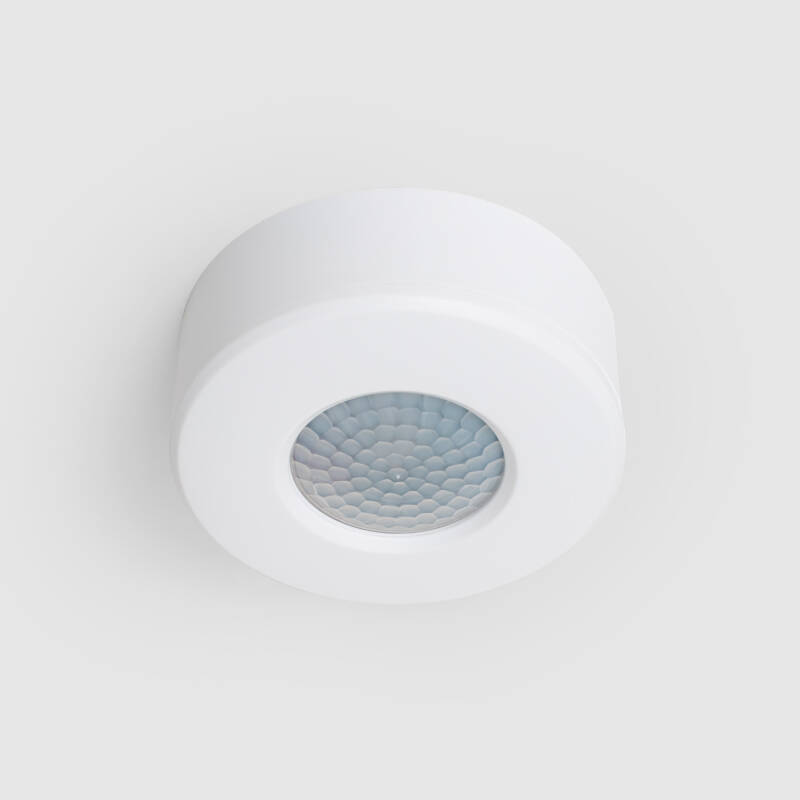

Image of 360º Residential PIR Motion Sensor Recessed/Surface Mounted
    Image of 360º Residential PIR Motion Sensor Recessed/Surface Mounted
    Image of 360º Residential PIR Motion Sensor Recessed/Surface Mounted
    Image of 360º Residential PIR Motion Sensor Recessed/Surface Mounted
    Image of 360º Residential PIR Motion Sensor Recessed/Surface Mounted
    Image of 360º Residential PIR Motion Sensor Recessed/Surface Mounted
1 / 5
  • 220-240V AC

    Voltage Range

    220-240V AC

  • 400 W

    Max Wattage

    400 W

  • Ø73 mm

    Cut Out Dimensions

    Ø73 mm

  • 73 mm

    Diameter

    73 mm

  • IP20

    IP Rating

    IP20

  • 32 mm x Ø73 mm

    Dimensions

    32 mm x Ø73 mm

  • 32 mm

    Height

    32 mm

  • PC

    Fitting Material

    PC

  • 360 °

    Detection Range

    360 °

  • II

    Electrical Insulation Class

    II

  • PIR

    Sensor

    PIR

  • 50-60 Hz

    Frequency

    50-60 Hz

360º Residential PIR Motion Sensor Recessed/Surface Mounted

Download technical datasheet

Ref. Ledkia: 100150

Colour White

    11,39 €

    VAT included

    In Stock, delivery in 15-20 days

    PRO CLUB badge

    Are you a lighting professional or a company?

    • Great discounts off PVP
    • Extended Warranty
    • Exclusive Services

    Buy now, pay later

    Credit payment

      • 30 calendar days to return

        You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


        Custom-made products and cut-to-size strips are excluded.


        Full conditions here: After-Sales Service.

      • 5-7 days Delivery

        If you place your order today before 18:00h, delivery within 5-7 days (working days).


        Shipping is free on purchases over 49,99 € (incl. VAT).


        Full conditions here: Shipping methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


        More information: Payment methods.

      • Warranty up to 5 years

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.


        Full conditions here: After-Sales Service.

    Dimensions

    • Height32 mm
    • Diameter73 mm
    • Cut Out DimensionsØ73 mm

    Downloads

    • pdf file

      PDF Datasheet 100150_206690 IE

    • pdf file

      DoC_100150_206690

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Mechanical Features

      • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
        Ambient Working Temperature-20 °C~+50 °C
      • Detection distance range8 m
      • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
        Detection Range360 °
      • InstallationRecessed, Surface
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • SensorPIR
      • Sensor TypePIR

    • Electrical Features

      • Electrical Insulation ClassII
      • Frequency50-60 Hz
      • Max Wattage400 W
      • Sensitivity10 Lux~2000 Lux
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC

    • Product Information

      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years

    • Materials and Finishes

      • ColourWhite
      • Fitting MaterialPC

    • Driver Information

      • WifiNo

    Description

    This PIR motion sensor has a versatile design that can be surface or recess mounted. It has a wide detection range of 360º , which allows it to cover a large area.

    The sensor can detect motion at a maximum distance of 8 meters in ambient temperature conditions below 24℃. The delay time can be adjusted from 10 seconds to 7 minutes to customize how long the light stays on after motion is detected.

    This motion sensor is powered by a 220-240V/AC 50/60Hz power supply and has a maximum load rating of 800W for incandescent lamps, or 400W for LED/energy saving lamps. It also has an ambient light setting, allowing you to customize the sensitivity of the sensor to the light in your environment.

    The recommended installation height for this motion sensor is 2.5 to 4 meters on the wall, or 2 to 4 meters on the ceiling. It has an IP20 rating, which means it is protected against solid objects larger than 12.5mm , but it is not protected against the ingress of liquids. Therefore, it is recommended for indoor use.

    This motion sensor is ideal for use in commercial and residential areas where automatic lighting is required. Its versatile design allows for easy installation in downlights or surfaces, making it ideal for renovations and new construction projects.
