Voltage Range 220-240V AC
Lumen 20 lm
Cut Out Dimensions Ø25 mm
Diameter 40 mm

1 / 6

Voltage Range
220-240V AC
Lumen
20 lm
Cut Out Dimensions
Ø25 mm
Diameter
40 mm
Number of LEDs
2
IP Rating
IP68
Battery Operated
No
Dimensions
36 mm x Ø40 mm
Height
36 mm
IK Protection
IK06
Luminous Efficiency
100 lm/W
Fitting Material
Aluminium

Colour Temperature Cool White 4000K

Warm White 3000K

In Stock, delivery in 15-20 days

Cool White 4000K

In Stock, delivery in 15-20 days

7,49 €

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

Dimensions

Height36 mm
Diameter40 mm
Cut Out DimensionsØ25 mm

Downloads

Technical Data Sheet PDF
DoC_2574_4825

Certificates and Stamps

Technical Specifications

Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- No. Of Lights1
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Mechanical Features
- Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
  IK ProtectionIK06
- InstallationRecessed, Floor
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP68
- LocationOutdoor
LED Features
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature4000K
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours40.000 hours
- Light ColourCool White
- Lumen20 lm
- Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
  Luminous Efficiency100 lm/W
- Number of LEDs2
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- WifiNo

Description

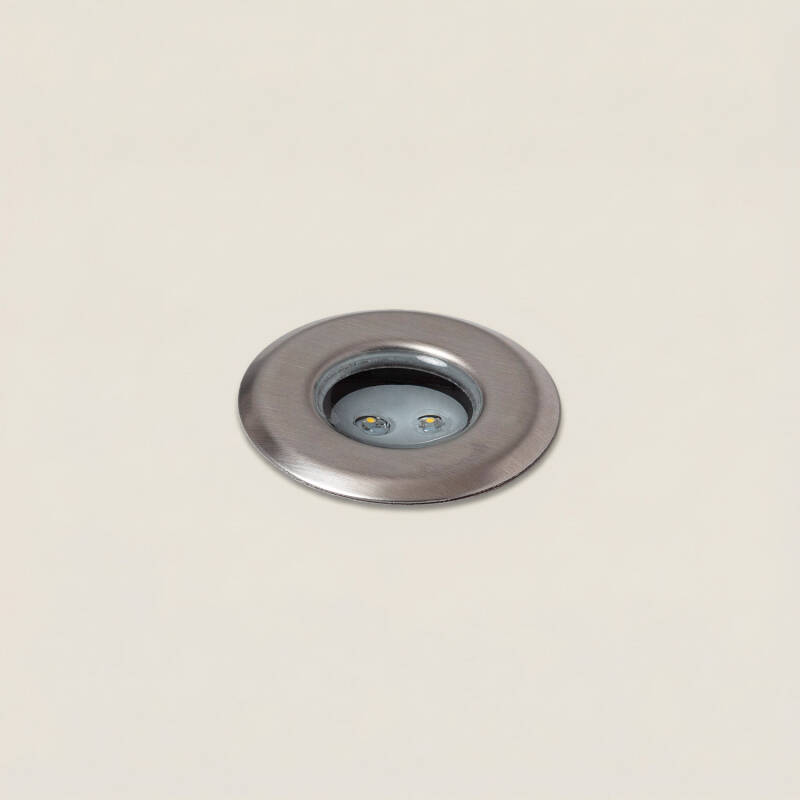

The Mini Ground Recessed LED Spotlight presents a compact, recessed floor fitting crafted in aluminium, designed to deliver focused illumination with a single point of light.

General information about Mini Ground Recessed LED Spotlight

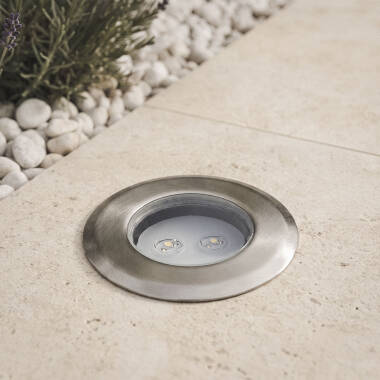

This recessed spotlight features a minimalist cylindrical form with a stainless steel bezel, integrating seamlessly into architectural flooring. It operates at 0.20 W power with a luminous output of 20 lumens and offers a long lifespan of 40,000 hours, ensuring durability in various decorative lighting projects.

Design and visual presence

The spotlight’s compact dimensions (36 mm height x Ø40 mm diameter) and recessed installation contribute to a discreet visual impact. Its aluminium body with a grey finish blends smoothly with outdoor environments, while the stainless steel trim provides a refined edge that complements diverse architectural styles.

Use and application

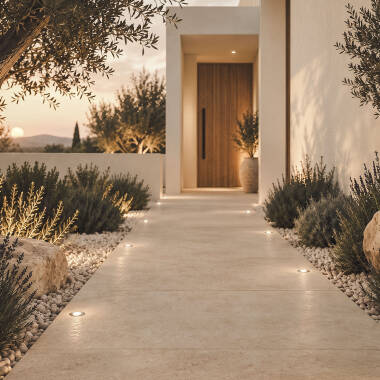

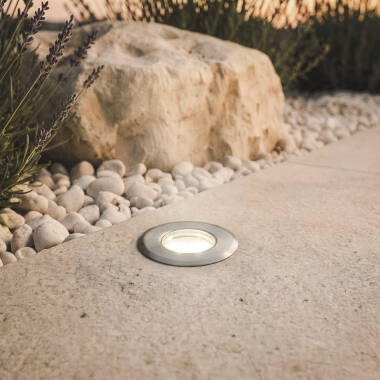

Ideal for outdoor settings such as gardens, hallways, terraces, and balconies, this spotlight supports compositions where precise, directional lighting enhances spatial definition. Its IP68 rating confirms suitability for exterior use, integrating naturally into landscaping and architectural projects requiring subtle illumination.

Key benefits

The compact recessed format allows for a clean, unobtrusive integration into floor surfaces.
Aluminium construction ensures material robustness and visual coherence with outdoor environments.
Single point of light delivers focused illumination for accentuation within architectural compositions.
Long operational life reduces maintenance frequency and supports project sustainability.
IP68 protection secures performance in outdoor conditions, expanding application versatility.

Highlighted specifications

Material: Aluminium; Installation: Recessed floor mounting; Power: 0.20 W; Luminous flux: 20 lumens; Dimensions: 36 mm x Ø40 mm; Cut-out: Ø25 mm; Voltage: 220–240 V AC; IP rating: IP68.

Installation and maintenance

Installation follows recessed floor mounting guidelines to ensure secure placement and optimal visual integration. Maintenance involves basic cleaning with a soft, dry cloth to preserve material finish and performance. Disconnect the power supply before any intervention.

Frequently asked questions

What type of installation does this spotlight require? — Recessed floor installation.
How many points of light does it have? — One point of light.
Is the spotlight suitable for outdoor use? — Yes, it has an IP68 rating for outdoor environments.
Does it include a light source? — The product includes LED lighting integrated in the design.

Specialized decorative lighting distribution in Ireland. If you are looking to buy Mini Ground Recessed LED Spotlight with a refined decorative approach, it is designed to integrate naturally into different projects. Estimated shipping in 3 to 4 days (subject to stock availability). View price and availability here.
