|Team of experts at your service
0
Range Expert
  • 8 W
    Wattage 8 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 700 lm
    Lumen 700 lm
  • 80 mm
    Diameter 80 mm
Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
    Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
    Video of ECLIPSE L LED Downlight Ø68 mm Cut Out
    Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
    Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
    Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
    Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
    Video of ECLIPSE L LED Downlight Ø68 mm Cut Out
    Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
1 / 8
  • 8 W

    Wattage

    8 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 700 lm

    Lumen

    700 lm

  • 80 mm

    Diameter

    80 mm

  • 0.95

    Power Factor

    0.95

  • UGR <3

    Glare Factor

    UGR <3

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 75 mm x Ø80 mm

    Dimensions

    75 mm x Ø80 mm

  • 75 mm

    Height

    75 mm

  • 84 lm/W

    Luminous Efficiency

    84 lm/W

  • Aluminium

    Fitting Material

    Aluminium

Aurlux Lighting

ECLIPSE L LED Downlight Ø68 mm Cut Out

Aurlux Lighting
Download technical datasheet

Ref. Ledkia: 179931

Manuf. ref.: 0096652

Installation type Recessed

Colour Black

Wattage 8 W

Colour Temperature 4000K

Type Of Driver Standard

    In Stock, delivery in 16-21 days

    Aurlux Lighting Surface

    70,00 €

    VAT included

    In Stock, delivery in 16-21 days

    Includes Driver

    PRO CLUB badge

    Are you a lighting professional or a company?

    • Great discounts off PVP
    • Extended Warranty
    • Exclusive Services

    Buy now, pay later

    Credit payment

      • 30 calendar days to return

        You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


        Custom-made products and cut-to-size strips are excluded.


        Full conditions here: After-Sales Service.

      • 5-7 days Delivery

        If you place your order today before 18:00h, delivery within 5-7 days (working days).


        Shipping is free on purchases over 49,99 € (incl. VAT).


        Full conditions here: Shipping methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


        More information: Payment methods.

      • Warranty up to 5 years

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.


        Full conditions here: After-Sales Service.

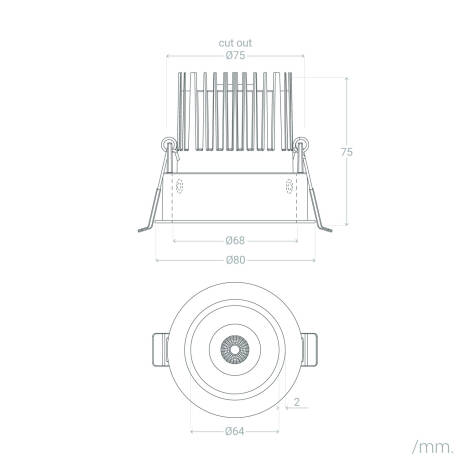

    Dimensions

    • Height75 mm
    • Diameter80 mm
    Scheme image

    Downloads

    • pdf file

      Technical Data Sheet PDF

    • pdf file

      DoC_179931_363605

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • Electrical Insulation ClassII
      • Frequency50-60 Hz
      • Light SourceCITILED COB
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC
      • Wattage8 W

    • Product Information

      • BrandAurlux Lighting
      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years
      • Product SeriesEclipse

    • LED Features

      • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
        Colour Rendering Index97
      • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
        Colour Temperature4000K
      • Low-glare products offer more comfortable lighting, suitable for extended use.
        Glare FactorUGR <3
      • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
        Hours50.000 hours
      • Light ColourCool White
      • Lumen700 lm
      • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
        Luminous Efficiency84 lm/W
      • Power Factor0.95

    • Mechanical Features

      • Ability to move or rotate the spotlight to direct the light as desired.
        DirectionalNo
      • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
        Fire RatedNo
      • InstallationRecessed, False ceiling
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • LocationIndoor
      • ShapeCircular

    • Materials and Finishes

      • ColourBlack
      • Fitting MaterialAluminium
      • IncludesDriver

    • Driver Information

      • Driver Intensity220 mA
      • Driver ModelLF-GIF009YS
      • Driver Power9.2 W
      • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
        Driver Tension25 V-42 V
      • Type Of DriverStandard
      • WifiNo

    Description

    The ECLIPSE L LED Downlight Ø68 mm Cut Out is a LED downlight featuring a CITILED COB light source and an integrated driver. It incorporates advanced Darklight technology that eliminates visible LEDs, delivering precise and comfortable lighting with high colour rendering (CRI 97).

    General information about ECLIPSE L LED Downlight Ø68 mm Cut Out

    This luminaire is constructed with an aluminium fitting that ensures durability and effective heat dissipation. It operates at a voltage range of 220-240 V AC with a luminous efficiency of 84 lm/W. The product features electrical insulation class II and a lifespan of 50.000 hours. Designed for indoor use, it has an IP20 rating and is part of the Eclipse collection, which is built around a multi-mount LED core compatible with various installation options. The advanced optical control system delivers light exactly where needed, avoiding glare and visible light sources, supporting high visual comfort and architectural integration. The downlight is circular in shape and certified with CE, RoHS, and UKCA standards.

    Use and applications

    The ECLIPSE L LED Downlight is a solution oriented to indoor lighting projects where precise optical control and visual comfort are essential. It fits well in office environments thanks to its high CRI, which enhances colour fidelity, and the Darklight technology that ensures glare control (UGR). It is also suitable for retail spaces where accurate lighting enhances product presentation, supported by its efficient light distribution.

    Operating within standard indoor conditions, this downlight functions reliably at the specified voltage and frequency. Its aluminium construction and electrical insulation class II provide safety and robustness for professional installations. This product is a practical choice for projects requiring a discreet, high-performance lighting solution with integrated driver compatibility.

    Key benefits

    • High visual comfort thanks to Darklight technology that eliminates visible LED sources.
    • Accurate colour rendering with a CRI of 97, ensuring faithful colour reproduction.
    • Efficient luminous output of 84 lm/W for effective illumination.
    • Durable aluminium fitting providing reliable heat dissipation.
    • Integrated driver included for simplified installation and operation.

    Highlighted specifications

    Material: Aluminium; Luminous efficiency: 84 lm/W; Colour rendering index: 97; Electrical insulation: Class II.

    Installation and maintenance

    Installation follows the system indicated for recessed downlights with a Ø68 mm cut-out. The product includes an integrated driver to facilitate electrical connection and ensure consistent performance. Maintenance is simplified due to the durable aluminium construction and the long lifespan of 50.000 hours, reducing the need for frequent replacements. Disconnect the power supply before any intervention.


    Specialized lighting distribution in Ireland. If you are looking to buy ECLIPSE L LED Downlight Ø68 mm Cut Out with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 5 to 6 days (subject to stock availability). Quality certified by CE, RoHS, and UKCA for professional installations and projects. Check price and availability here.

    Frequently asked questions

    • What type of light source does this downlight use? — It uses a CITILED COB LED module.
    • Is the driver included with the product? — Yes, the product comes with an integrated driver.
    • Can this downlight be installed in damp environments? — It is rated IP20, suitable for indoor dry locations only.
    • What is the expected lifespan of the luminaire? — The product has a lifespan of 50.000 hours.
    • Does it provide glare control? — Yes, it incorporates Darklight technology for effective glare reduction.
