Wattage 60 W
Voltage Range 220-240V AC
Lumen 7200 lm
Diameter 208 mm
Wattage
60 W
Voltage Range
220-240V AC
Lumen
7200 lm
Diameter
208 mm
Type Of Dimming
1-10 V
Power Factor
0.95
IP Rating
IP65
Battery Operated
No
Dimensions
663 mm x Ø208 mm
Height
663 mm
IK Protection
IK08
Luminous Efficiency
120 lm/W
60W Espirit Dossel LED Streetlight PHILIPS Xitanium
Ref. Ledkia: 127659
Colour Temperature Cool White 4000K
193,99 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions663 mm x Ø208 mm
- Fixing DiameterØ79 mm x Ø89 mm
Downloads
PDF Datasheet 127659_267479 IE
DoC_127659_267479
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceLUMILEDS 5050
- Nominal Voltage90 V - 305 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage60 W
Product Information
- CertificatesCE, RoHS
- Guarantee5 years
- Product SeriesDossel
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourCool White
- Lumen7200 lm
- Luminous Efficiency120 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.95
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
Driver Information
- Driver BrandPHILIPS Xitanium
- Driver Intensity900 mA-2200 mA
- Driver Power65 W
- Driver Tension24 V-50 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description

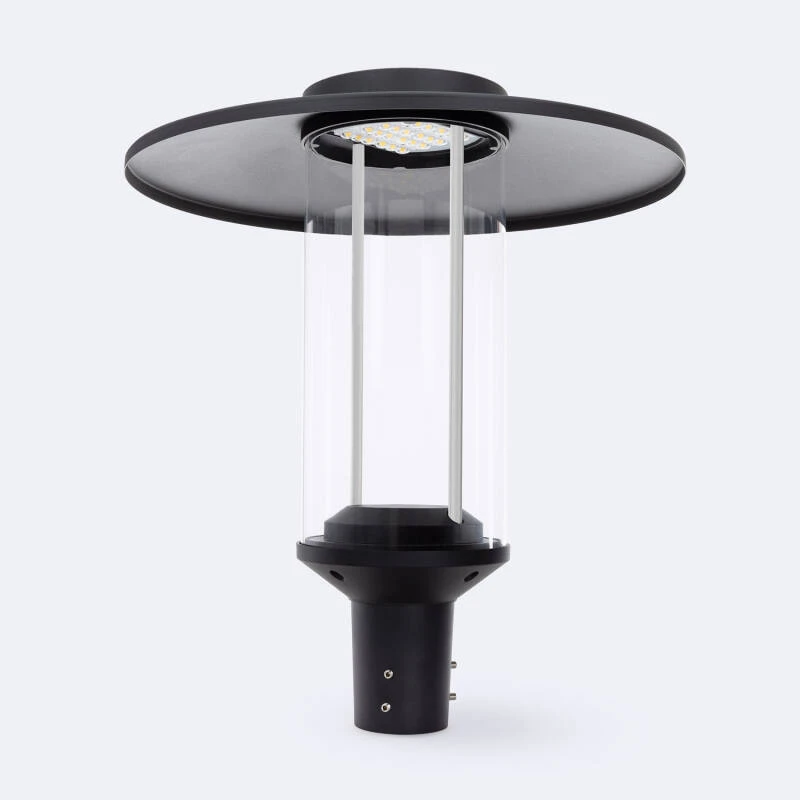

The 60W Espirit Dossel LED Streetlight PHILIPS Xitanium offers reliable outdoor public lighting with a robust IP65 rating and IK08 protection, ensuring resistance to environmental factors and impacts.
General information about 60W Espirit Dossel LED Streetlight PHILIPS Xitanium
This streetlight belongs to the Dossel series, designed for outdoor public spaces. It features a 60W power LED source with a luminous efficiency of 120 lm/W, delivering 7200 lumens. The fixture is equipped with a PHILIPS Xitanium driver supporting 1-10 V dimming and offers overvoltage protection up to 10 kV. Its body is made of aluminium, and it operates within an ambient temperature range of -20 °C to +50 °C. The product is certified with CE and RoHS marks for compliance.
Use and applications
Indicated for outdoor public administration environments, this streetlight is suitable for a variety of exterior locations such as access points, pedestrian pathways, façades, gardens, and outdoor car parks. It is designed to provide continuous illumination in public spaces, including covered outdoor areas like porches and canopies, ensuring versatile application in urban and communal settings.
Key benefits
- High luminous efficiency ensures effective illumination with 7200 lumens at 60W power consumption.
- Robust protection with IP65 and IK08 ratings for resistance against dust, water, and mechanical impacts.
- Reliable dimming control via 1-10 V system for adaptable lighting levels according to needs.
- Overvoltage protection up to 10 kV safeguards electrical components from surges.
- Long service life with a rated lifetime of 100,000 hours, reducing replacement frequency.
Highlighted specifications
Power factor: 0.95; Driver voltage range: 24 V - 50 V; Nominal voltage: 90 V - 305 V; Dimensions: 663 mm x Ø208 mm.
Installation and maintenance
Installation should follow the mounting system specified for the Dossel series streetlights. The fixture supports secure outdoor mounting with appropriate brackets and connectors. Disconnect power supply before any electrical intervention. Maintenance involves periodic inspection of the driver and optical components to ensure optimal performance and safety.
Frequently asked questions
- What dimming control does this streetlight support? — It supports 1-10 V dimming for adjustable lighting levels.
- What is the ingress protection rating? — The product has an IP65 rating for dust and water resistance.
- Which driver brand is used? — It uses a PHILIPS Xitanium driver.
- What is the rated lifetime of the LED? — The LED source has a life expectancy of 100,000 hours.
- Is the product certified? — Yes, it holds CE and RoHS certifications.
Specialized distribution of technical lighting in Ireland. If you are looking to buy 60W Espirit Dossel LED Streetlight PHILIPS Xitanium for a professional or technical project, the Dossel series identifies the product range this reference belongs to. Estimated shipping time is 3 to 4 days (subject to stock availability). CE, RoHS certified. Check price and availability.
