  • 12V DC, 24V DC, 48V DC
    Voltage Range 12V DC, 24V DC, 48V DC
  • 54 W
    Max Wattage 54 W
  • DALI
    Type Of Dimming DALI
  • IP20
    IP Rating IP20
Image of DALI DT6/DT8 LED Driver 3-45V Output 350-1200mA 4-Channel SKYDANCE DA4-C
    Image of DALI DT6/DT8 LED Driver 3-45V Output 350-1200mA 4-Channel SKYDANCE DA4-C
    Image of DALI DT6/DT8 LED Driver 3-45V Output 350-1200mA 4-Channel SKYDANCE DA4-C
    Image of DALI DT6/DT8 LED Driver 3-45V Output 350-1200mA 4-Channel SKYDANCE DA4-C
1 / 3
  • 12V DC, 24V DC, 48V DC

    Voltage Range

    12V DC, 24V DC, 48V DC

  • 54 W

    Max Wattage

    54 W

  • DALI

    Type Of Dimming

    DALI

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 170 mm x 50 mm x 23 mm

    Dimensions

    170 mm x 50 mm x 23 mm

  • 50 mm

    Width

    50 mm

  • 170 mm

    Height

    170 mm

  • PC

    Fitting Material

    PC

  • SKYDANCE

    Brand

    SKYDANCE

  • Yes

    Dimmable

    Yes

  • 23 mm

    Depth

    23 mm

Skydance

DALI DT6/DT8 LED Driver 3-45V Output 350-1200mA 4-Channel SKYDANCE DA4-C

Skydance
Download technical datasheet

Ref. Ledkia: 109394

Manuf. ref.: DA4-C

Colour White

    Before 29,99 €

    -18% (You save 5,40 €)

    24,59 €

    VAT included

    In Stock, delivery in 15-20 days

    PRO CLUB badge

    Are you a lighting professional or a company?

    • Great discounts off PVP
    • Extended Warranty
    • Exclusive Services

    Buy now, pay later

    Credit payment

      • 30 calendar days to return

        You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


        Custom-made products and cut-to-size strips are excluded.


        Full conditions here: After-Sales Service.

      • 5-7 days Delivery

        If you place your order today before 18:00h, delivery within 5-7 days (working days).


        Shipping is free on purchases over 49,99 € (incl. VAT).


        Full conditions here: Shipping methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


        More information: Payment methods.

      • Warranty up to 5 years

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.


        Full conditions here: After-Sales Service.

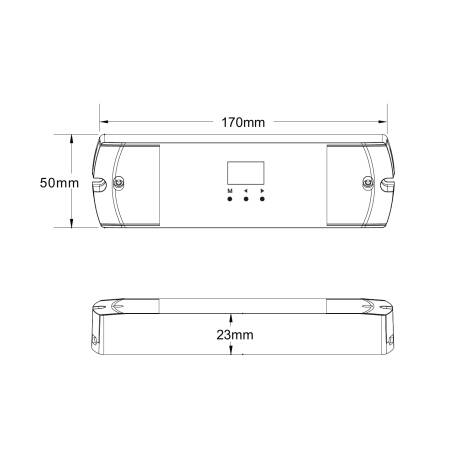

    Dimensions

    • Height170 mm
    • Depth23 mm
    • Width50 mm
    Scheme image

    Downloads

    • pdf file

      PDF Datasheet 109394_222533 IE

    • pdf file

      Instruction Manual

    • pdf file

      DoC_109394_222533

    Certificates and Stamps

    CertificateCertificate

    Technical Specifications

    • Electrical Features

      • Max Wattage54 W
      • Type Of DimmingDALI
      • Voltage level required for the product to function correctly.
        Voltage Range12V DC, 24V DC, 48V DC

    • Mechanical Features

      • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
        Ambient Working Temperature-20 °C~+50 °C
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • LocationIndoor

    • Product Information

      • BrandSKYDANCE
      • CertificatesCE, RoHS
      • Guarantee5 years

    • Materials and Finishes

      • ColourWhite
      • Fitting MaterialPC

    • Driver Information

      • WifiNo

    Description

    The 4-Channel DALI Dimmer 3-45V DC Constant Current is a dimmer that is designed to provide constant current over a voltage range of 3-45 VDC at a current intensity of 150-500mA or 350-1200mA per channel. This dimmer offers an effective solution for lighting systems that require individualised current management.

    Each channel can be configured with a selectable DALI address, allowing up to four different DALI addresses for independent control. The dimmer complies with the DALI protocol standard IEC 62386-102, IEC 62386-207 and is compatible with other international DALI products, ensuring interoperability in existing systems.

    The DALI address can be manually assigned and displayed on a digital display or automatically assigned by a DALI master. In addition, this dimmer uses pulse width modulation (PWM) for digital dimming, with a selectable PWM frequency of 1000/2000/4000/8000Hz, providing flexibility in dimming settings. It also features overheat protection, short-circuit protection and a quick self-test function.
