Wattage 200 W
Voltage Range 220-240V AC
Lumen 24000 lm
Diameter 380 mm
Wattage
200 W
Voltage Range
220-240V AC
Lumen
24000 lm
Diameter
380 mm
Power Factor
0.95
IP Rating
IP54
Battery Operated
No
Dimensions
85 mm x Ø380 mm
Height
85 mm
IK Protection
IK08
Luminous Efficiency
120 lm/W
Fitting Material
Aluminium

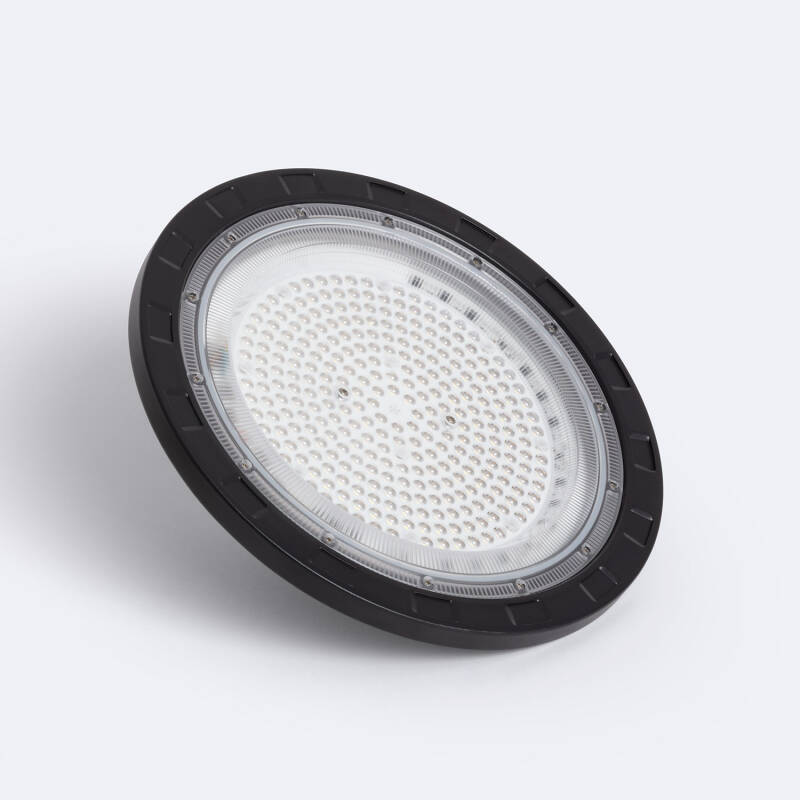

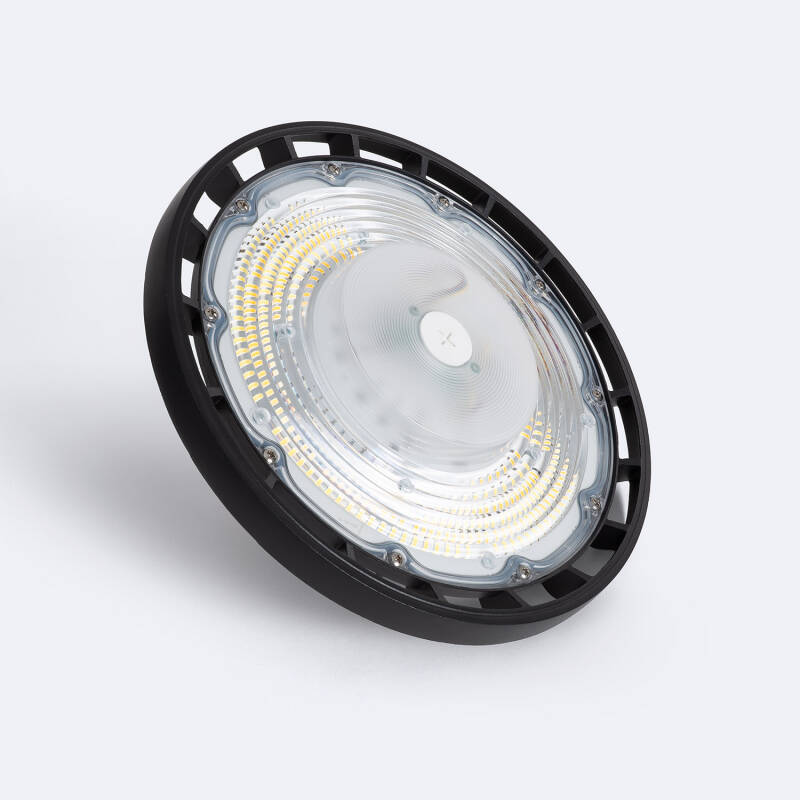

200W UFO LED High Bay Light Solid S2 120lm/W
Ref. Ledkia: 108381
Before 44,99 €
33,49 €
VAT included
Colour Temperature Daylight 5000K
Pre-Order, estimated delivery from 10 weeks
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

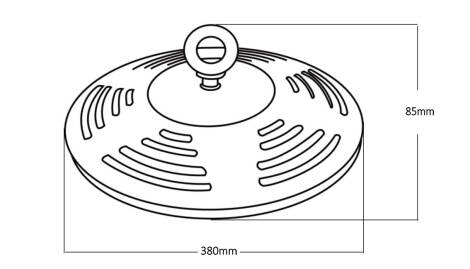

Dimensions
- Dimensions85 mm x Ø380 mm
Downloads
PDF Datasheet 108381_221007 IE
DoC_108381_221007
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Frequency50-60 Hz
- Light SourceEPISTAR SMD2835
- Nominal Voltage190 V - 260 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection4 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage200 W
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationPendant
- IP RatingIP54The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Optic90ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Product Information
- CertificatesCE, RoHS
- Guarantee3 years
- Product SeriesU-SOLID-S2
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours60.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourDaylight
- Lumen24000 lm
- Luminous Efficiency120 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.95
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
Driver Information
- WifiNo
Description
The 200W Industrial UFO Solid S2 LED Highbay 120lm/W provides high luminous power in a very small space thanks to the advances and latest generation technologies that it incorporates.
Features of the 200W Industrial UFO Solid S2 LED Highbay 120lm/W
It has EPISTAR SMD 2835 LEDs of high efficiency and energy efficiency, which together with the rest of the high quality components that it mounts achieve a luminaire performance of up to 120 lm/W.
Its innovative aluminium-finished heatsink keeps the working temperature constant and optimally dissipates the heat generated by the conversion of electrical energy into light energy.
Applications of the 200W Industrial UFO Solid S2 LED Highbay 120lm/W
Its slim design allows this luminaire to be used in all types of industrial premises, both indoors and outdoors, even in the most unfavourable situations. It is used in all types of industrial or work areas, such as industrial buildings, workshops, factories, warehouses or car parks.
The LED industrial lighting is particularly interesting in the professional field due to the savings it provides in terms of consumption and maintenance of the luminaires. It also stands out for its immediate, flicker-free start-up, which allows activity to be restored instantly after, for example, a power cut.
What does Solid mean?
The Solid system is based on eliminating any perishable elements that could shorten the LED's lifespan. SSD stands for Solid State Drive. SSD technology makes it possible to increase the life of the LED so that the efficiency, quality and performance of the product is superior to other LED products on the market. By eliminating the DRIVER, one of the main components that cause the luminaire to cease to function and be useful, we have achieved a longer life for our LED luminaires.
*If you wish to install this model of luminaire in an industry with three-phase machinery, electronics or servomotors, we advise you to consult our sales department.
