Wattage 150 W
Voltage Range 220-240V AC
Lumen 27000 lm
Number of LEDs 800
Wattage
150 W
Voltage Range
220-240V AC
Lumen
27000 lm
Number of LEDs
800
Power Factor
0.9
IP Rating
IP65
Battery Operated
No
Dimensions
88 mm x 105 mm x 656 mm
Width
105 mm
Height
88 mm
IK Protection
IK09
Luminous Efficiency
180 lm/W
Linear HBL LED High Bay 0-10V Dimmable 180 lm/W Zhaga LEDVANCE Dimmable IP65
Ref. Ledkia: 182109
Wattage 150 W
Sensor Type Without sensor
Colour Temperature Daylight 5000K
Optic 90ºx110º
Pre-Order, estimated shipping from 02/12/2026
107,99 €
VAT included
Pre-Order, estimated shipping from 02/12/2026
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

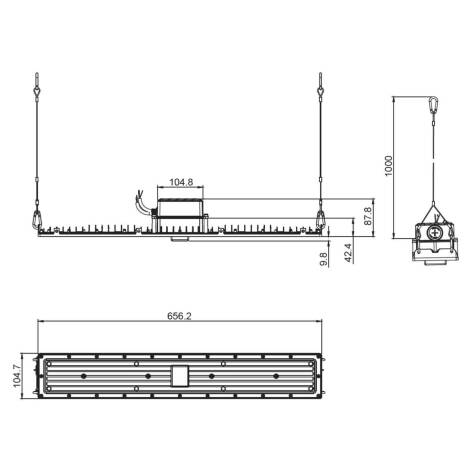

Dimensions
- Weight1.7 kg
- Cable Length300 mm
- Dimensions88 mm x 105 mm x 656 mm
Downloads
Technical Data Sheet PDF
Daylight Sensor Manual
PIR Sensor Manual
RADAR Sensor Manual
Manual Ledvance Driver
HBL EVO Manual
DoC_182109_370434
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Remote ControlNo
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage150 W
Materials and Finishes
- ColourBlack
- Fitting MaterialPolycarbonate, Aluminium, Polyester
- Includessafety cable, Driver, Screws
- Not IncludedBattery, Remote
- RAL Colour9017
Mechanical Features
- Ambient Working Temperature-20 °C~+35 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- IK ProtectionIK09Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationPendant
- Installation of the bracketSuspension
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Maximum installation height12 m
- Optic90ºx110ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Sensor TypeWithout sensor
- SupportPendant
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
- Product SeriesHBL ZHAGA
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourDaylight
- Linkable connectionNo
- Lumen27000 lm
- Luminous Efficiency180 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Number of LEDs800
- Power Factor0.9
- Standard colour deviation (MacAdam)SDCM ≤ 7
Driver Information
- Driver BrandLEDVANCE
- Driver Intensity400 mA - 530 mA
- Driver Power150 W-250 W
- Driver Tension180 V - 305 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
- WifiNo
Description
The Linear HBL LED High Bay luminaire offers a 0–10 V dimmable control system combined with a high luminous efficiency of 180 lm/W and an IP65 rating, making it suitable for demanding indoor industrial environments.
General information about Linear HBL LED High Bay 0-10V Dimmable 180 lm/W ZHAGA LEDVANCE Driver IP65
This product is part of the HBL ZHAGA series within the industrial high bay lighting family. It features a ZHAGA LEDVANCE driver designed for easy integration and reliable performance. The fitting combines a die-cast aluminium body with polycarbonate and polyester components to meet IP65 protection and IK09 impact resistance standards. It includes a safety cable, driver, and screws as part of the package. Its colour rendering index (CRI) of 70 ensures adequate colour fidelity for industrial applications.
Use and applications
Designed for indoor use, this high bay luminaire is ideal for industrial units and production areas. It is particularly suited for environments requiring reliable, high-efficiency lighting with robust protection against dust and water ingress. The pendant suspension mounting facilitates installation in large indoor spaces typical of manufacturing and industrial sectors.
Key benefits
- High luminous efficiency of 180 lm/W enables effective illumination with optimized energy use.
- 0–10 V dimmable control allows precise adjustment of light levels to suit operational needs.
- IP65 protection rating ensures resistance to dust and water jets, suitable for harsh indoor environments.
- IK09 impact resistance provides enhanced mechanical protection against impacts.
- LEDVANCE driver simplifies installation and maintenance procedures.
Highlighted specifications
Voltage range: 220–240 V AC; Overvoltage protection: 6 kV; Power factor: 0.9; Electrical insulation class: Class I.
Installation and maintenance
The luminaire is designed for pendant suspension mounting using the included bracket system. Installation requires connection to a 220–240 V AC supply with adherence to electrical safety standards. The product includes necessary screws and a safety cable for secure fixing. Maintenance should be performed with the power disconnected, following standard industrial lighting protocols.
Frequently asked questions
- Is the luminaire dimmable? — Yes, it supports 0–10 V dimming control.
- What is the protection rating? — It has an IP65 rating for dust and water resistance.
- What type of driver is included? — A LEDVANCE ZHAGA driver is integrated.
- Can it be used outdoors? — It is specified for indoor industrial use only.
- What is the expected lifespan? — The indicated life expectancy is 100,000 hours.
Specialized technical lighting distribution in Ireland. If you are looking to buy Linear HBL LED High Bay 0-10V Dimmable 180 lm/W ZHAGA LEDVANCE Driver IP65 for a technical or professional project, this reference meets the specified requirements for its application. Estimated shipping time of 3 to 4 days (subject to stock availability). CE, RoHS, and UKCA certified. Check price and availability.
