Wattage 150 W
Voltage Range 220-240V AC
Lumen 27000 lm
Number of LEDs 800
Wattage
150 W
Voltage Range
220-240V AC
Lumen
27000 lm
Number of LEDs
800
Type Of Dimming
0-10 V
Power Factor
0.9
IP Rating
IP65
Battery Operated
No
Dimensions
88 mm x 105 mm x 656 mm
Width
105 mm
Height
88 mm
IK Protection
IK09
Linear HBL EVO LED High Bay 0-10V Dimmable 180 lm/W LEDVANCE Dimmable
Ref. Ledkia: 182074
Wattage 150 W
Sensor Type Without sensor
Colour Temperature Daylight 5000K
Optic 90ºx110º
Pre-Order, estimated shipping from 02/12/2026
107,99 €
VAT included
Pre-Order, estimated shipping from 02/12/2026
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Videos
HBL EVOTutorial

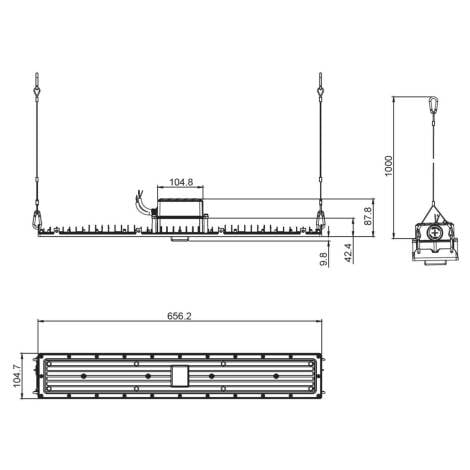

Dimensions
- Cable Length300 mm
- Dimensions88 mm x 105 mm x 656 mm
Downloads
Technical Data Sheet PDF
Manual Ledvance Driver
HBL EVO Manual
DoC_182074_370404
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-20 °C~+35 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK09Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationPendant
- Installation of the bracketSuspension
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Maximum installation height12 m
- Maximum number of nodes/sensors32
- Optic90ºx110ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Sensor TypeWithout sensor
- SupportPendant
- Transmission distance between nodes/sensors15 m
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage150 W
Materials and Finishes
- ColourBlack
- Fitting MaterialPolycarbonate, Aluminium, Polyester
- Includessafety cable, Driver
- Not IncludedRemote
- RAL Colour9017
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
- Product SeriesHBL EVO
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourDaylight
- Linkable connectionNo
- Lumen27000 lm
- Luminous Efficiency180 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Number of LEDs800
- Power Factor0.9
- Standard colour deviation (MacAdam)SDCM ≤ 7
Driver Information
- Driver BrandLEDVANCE
- Driver Intensity0.4 A - 0.53 A
- Driver Power150 W-250 W
- Driver Tension180 V - 300 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
- WifiNo
Description
The Linear HBL EVO LED High Bay is a 0–10 V dimmable industrial lighting solution with a luminous efficiency of 180 lm/W, featuring a LEDVANCE driver designed for demanding indoor environments.
General information about Linear HBL EVO LED High Bay 0-10V Dimmable 180 lm/W LEDVANCE Driver
This high bay LED luminaire belongs to the HBL EVO series of industrial luminaires, combining a body made of aluminium with polycarbonate and polyester components. It integrates a LUMILEDS SMD2835 light source and offers a colour rendering index (CRI) of 70. The product features a power factor of 0.9 and provides overvoltage protection up to 6 kV. Its protection ratings include IP65 for dust and water ingress and IK09 for impact resistance. The unit has a ULOR of 0%, ensuring no upward light emission.
Use and applications
The Linear HBL EVO is intended for indoor use in industrial units and production areas. It is suitable for industry and production sectors requiring robust and efficient lighting in large indoor spaces. Its suspension bracket installation enables flexible mounting in high-ceiling environments.
Key benefits
- High luminous efficiency: 180 lm/W ensures effective illumination with optimized energy use.
- Reliable protection: IP65 and IK09 ratings provide resistance against dust, water, and mechanical impacts.
- Dimmable control: 0–10 V driver allows precise adjustment of light levels to suit operational needs.
- Enhanced electrical safety: Overvoltage protection up to 6 kV safeguards the fixture from electrical surges.
- Long service life: Rated for 100,000 hours, reducing the frequency of replacements and maintenance.
Highlighted specifications
Voltage range: 220–240 V AC; Ambient working temperature: -20 °C to +35 °C; Electrical insulation class: I.
Installation and maintenance
The luminaire is designed for suspension mounting using the supplied bracket and includes a safety cable for secure installation. Electrical connection requires adherence to safety protocols, including disconnecting power before any intervention. Maintenance focuses on verifying driver functionality and ensuring the IP65 enclosure integrity.
Frequently asked questions
- Is the luminaire dimmable? — Yes, it features a 0–10 V dimmable LEDVANCE driver.
- What is the protection rating? — It has an IP65 rating for dust and water protection.
- Which light source technology is used? — The product uses LUMILEDS SMD2835 LEDs.
- Does it include the driver? — Yes, the driver is included with the luminaire.
- Is a remote control included? — No, remote control is not included.
Specialized technical lighting distribution in Ireland. If you are looking to purchase Linear HBL EVO LED High Bay for a professional or technical project, this reference gathers the specifications indicated for its application. Estimated shipping time is 3 to 4 days (subject to stock availability). The product holds CE, RoHS, and UKCA certifications. Check price and availability.
