100W 170lm/W Industrial UFO HBF SAMSUNG LED High Bay DALI Dimmable

Energetic efficiency
Download technical datasheet

Ref. Ledkia: 88038

Ref. Fab: C-UFO-G4-SMS-100-DL-35-5000

Choose Colour Temperature

Daylight 5000K

Choose Optic

30º

In Stock, delivery in 15-20 days

Before 118,92 €

-31% (You save 36,39 € )

82,53 €

23% VAT included

In Stock, delivery in 15-20 days

Includes: Driver

Buy now, pay later

Credit payment

You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


Custom-made products and cut-to-size strips are excluded.


Full conditions here: After-sales service.

If you place your order today before 18:00h, delivery within 5-7 days (working days).


Shipping is free on purchases over 49,99 € (incl. VAT).


Full conditions here: Delivery methods.

payment method image 1

payment method image 2

At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


More information: Payment methods.

Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


You will find the exact product warranty in the technical details.


Full conditions here: After-sales service.

Dimensions

  • Size:180xØ255 mm
  • Height:180 mm
  • Diameter:Ø250 mm

Downloads

  • Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Energy Efficiency

Efficiency energeticRegulation 2021
Efficiency energeticRegulation 2023

Technical Specifications

  • Power:100 W
  • Power Factor:0.99
  • Voltage:220-240V AC
  • Frequency:50-60 Hz
  • Driver Output:180-260V DC // 500mA
  • Protection Class:I
  • Dimmable:DALI
  • Light Source:SAMSUNG SMD3030
  • CRI:80
  • Lumens:15000 lm
  • Luminous Efficiency:150 lm/W
  • LED Performance:170 lm/W
  • Energy Efficiency 2021 (UE-1369/2017):A++
  • Energy Efficiency 2023 (UE-2019/2015):C
  • Use:Outdoor, Indoor
  • IP Protection:IP65
  • IK Protection:IK08
  • Flicker Free:YES
  • Material:Glass, Aluminium
  • Installation:Pendant
  • Size:180xØ255 mm
  • Height:180 mm
  • Diameter:Ø250 mm
  • Cable Length300 mm
  • Working Temperature:-30°C ~ +50°C
  • Includes:Driver
  • Driver:LIFUD
  • Life Span:100,000 Hours
  • Warranty:5 Years
  • Certifications:CE & RoHS, TÜV, ENEC
  • Brand ComponentSAMSUNG

Our advantages

  • Team of experts at your service

    Personal customer service

  • 24-hour express delivery

    Stock of more than 12,000 references

  • Warranty up to 5 years

    Our professionals guarantee you the highest quality and reliability

  • Best price guarantee

    Compared to the most outstanding websites in the industry

Description

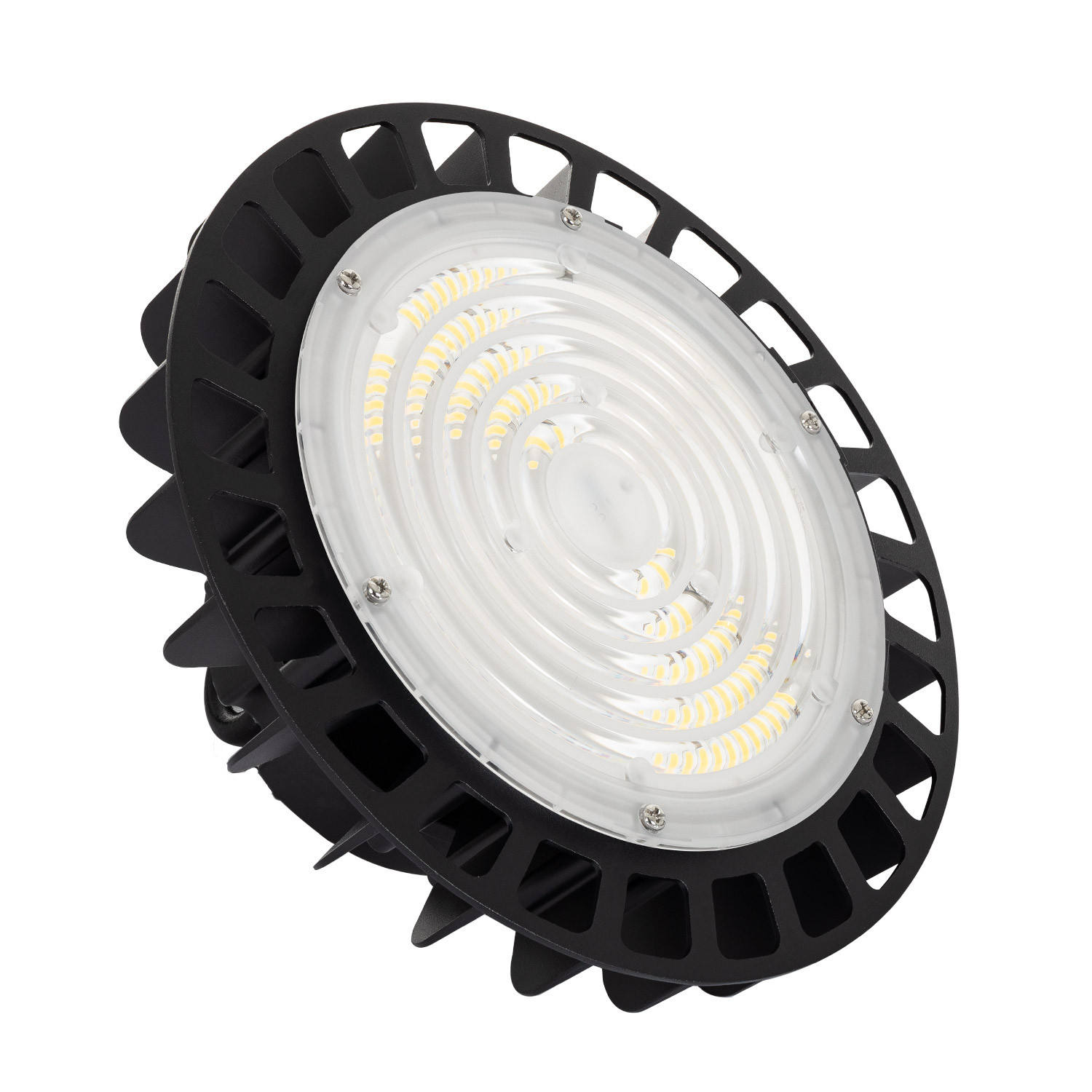

The 100W 170lm/W Industrial UFO HBF SAMSUNG LED High Bay DALI Dimmable is a high-power LED luminaire with a very small footprint, thanks to state-of-the-art technology. It has been possible to create one of the best LED hoods on the market thanks to its energy savings, zero maintenance, long life and high reliability and flexibility.

Features of the 100W 170lm/W Industrial UFO HBF SAMSUNG LED High Bay DALI Dimmable

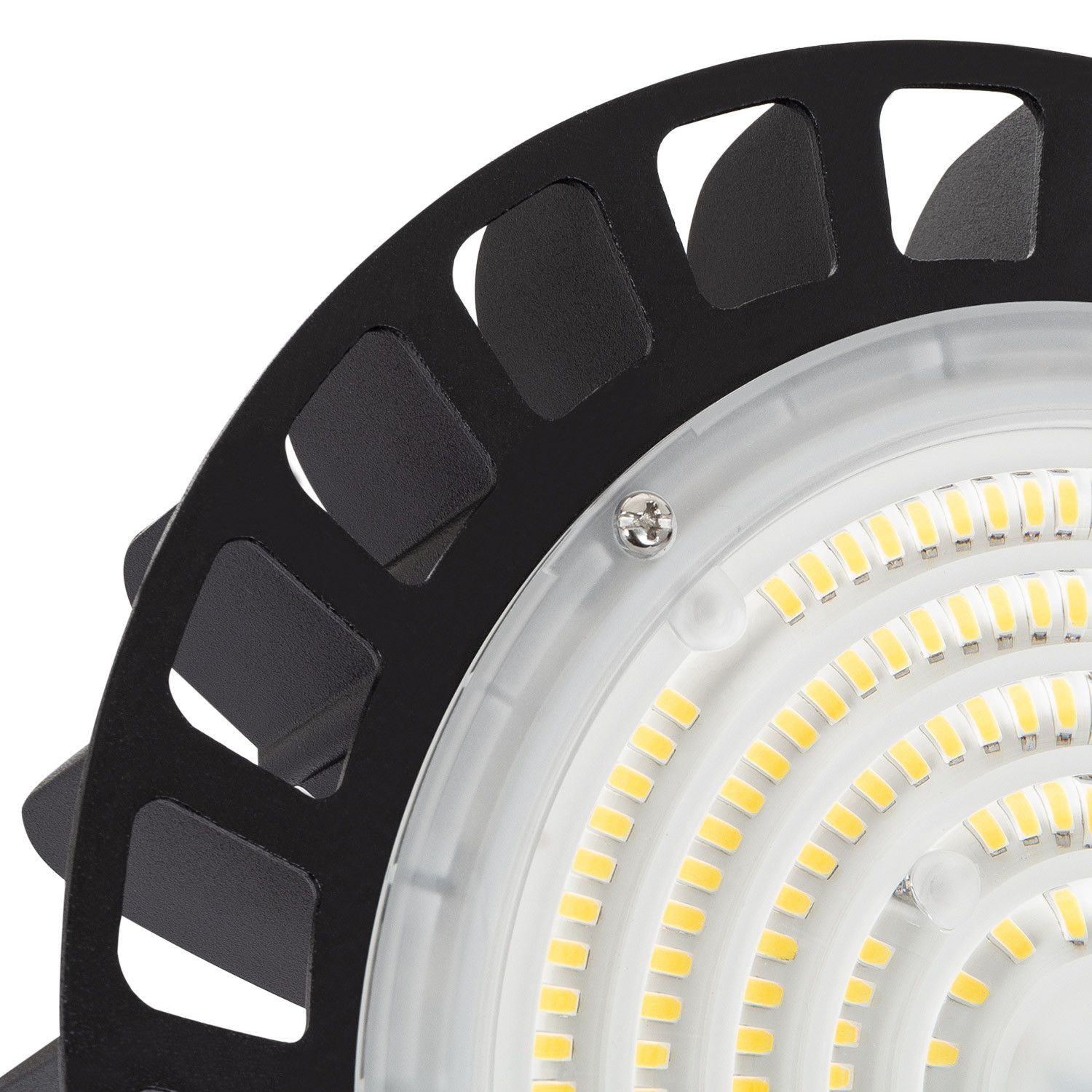

It has high-efficiency LEDs from SAMSUNG and a LIFUD Flicker Free driver, which together with the rest of the high quality components incorporated, achieve a LED performance of up to 170 lm/W.

Available with lenses of various apertures, which help to emit a semi-diffuse light with a specific angle of aperture, which is interesting because the power of these luminaires can be annoying when looking directly at them.

The LIFUD Driver of this luminaire incorporates 4KV protection against overloads, short circuits, temperature, high input voltage and output voltage, making it a very safe driver. In addition, this driver is Flicker Free, avoiding light flicker and therefore reducing eye fatigue.

It has high efficiency, high PF (Power Factor) and low THD (Harmonic Diffusion). It includes over-temperature protection to greatly improve the stability of the product by preventing the LEDs from burning out.

Advantages of the 100W 170lm/W Industrial UFO HBF SAMSUNG LED High Bay DALI Dimmable

This luminaire is perfect for all types of industrial premises, both indoors and outdoors, even in the most unfavourable situations. It is used in all types of industrial or work areas, such as industrial buildings, workshops, factories, warehouses or car parks.

The LED industrial lighting is particularly interesting in the professional field due to the savings it provides in terms of consumption and maintenance of the luminaires. It also stands out for its immediate start-up, without delays or flickering, which allows activity to be restored instantly.

What does DALI (Digital Addressable Lighting Interface) mean?

The DALI dimming system is a protocol that uses a digital signal to dim the light intensity, program on/off switching, automate scenarios and generate timers.

A DALI network consists of a DALI controller or master and one or more DALI Drivers. This is useful for saving energy and adapting to different scenarios and is becoming a standard for lighting control in large buildings such as offices, shops, restaurants, hotels, road networks and motorways.
