Colour Anthracite
In Stock, delivery in 15-20 days
Buy now, pay later
Credit paymentDimensions
- Weight1.7 kg
- Dimensions500 mm x 140 mm x 75 mm
Downloads
PDF Datasheet 114698_234932 IE
Instruction Manual
DoC_114698_234932
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceCOB
- No. Of Lights1
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage9 W
Mechanical Features
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- IK ProtectionIK04Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationFloor, Surface, Vertical
- IP RatingIP54The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
LED Features
- Beam Angle70ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature2200K - 3000K - 4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Light ColourCCT
- Lumen850 lm
- Luminous Efficiency94 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- RangeSheffield
Materials and Finishes
- ColourAnthracite
- Fitting MaterialAluminium
Driver Information
- WifiNo
Description

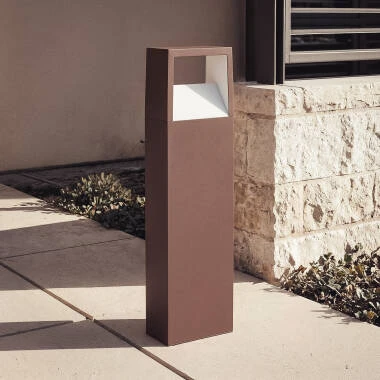

The 9W Sheffield Outdoor Aluminium Bollard 50cm is an excellent choice for any outdoor space that requires indirect lighting to mark a pathway or area. Made from premium quality aluminium, it combines durability with modern or minimalist styling.
Features of the 9W Sheffield Outdoor Aluminium Bollard 50cm
A highlight of this beacon is the ability to adjust the colour temperature to suit the user's needs and preferences, thanks to the integrated selector on the driver. This selector is located at the top of the beacon, where the light point is located. To adjust the colour of the light to our liking, we will have to disassemble the head and access the selector mentioned above. On the other hand, the connection to the mains is made by means of the wiring located inside the body that will be in contact with the surface. This feature allows the lighting to be adapted to create different atmospheres, from a cosy warm light to a neutral or cold light.
