This product is discontinued

Below you can find the substitute product or some equivalents.

If you have any queries, please call us on telephone (01) 486 3779.

Voltage Range 24V DC
Colour Transparent
Cut Points 10 cm
LED Strip Installation 10 m

1 / 4

Voltage Range
24V DC
Colour
Transparent
Cut Points
10 cm
LED Strip Installation
10 m
IP Rating
IP68
Battery Operated
No
Dimensions
5 mm x 12 mm x 5 m
Width
12 mm
Height
5 mm
Fitting Material
PCB, Epoxy Resin, Silicone
Dimmable
Yes

Dimensions

Width12 mm
Length5 m
Height5 mm

Downloads

Technical Data Sheet PDF
manual_tiras_led_6_idiomas
DoC_102033_209504

Certificates and Stamps

Technical Specifications

Electrical Features
- Electrical Insulation ClassIII
- LED Strip Installation10 m
- Light SourceLUMILEDS 5050
- Mains connectionTransformer
- Voltage level required for the product to function correctly.
  Voltage Range24V DC
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Measurement at which the product can be cut.
  Cut Points10 cm
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP68
- LocationOutdoor
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesDIVE-12
LED Features
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours40.000 hours
- Light ColourRGB
- Number of LEDs Per Metre60 led/m
- Power Per Meter12 W/m
Materials and Finishes
- ColourTransparent
- Fitting MaterialPCB, Epoxy Resin, Silicone
Driver Information
- WifiNo

Description

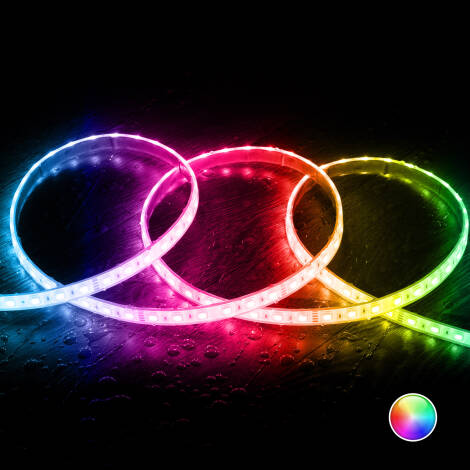

The 5m 24V DC RGB Submersible LED Strip 12mm Wide cut at Every 10cm IP68 is an excellent choice for those who want versatile and colourful decorative lighting. Its flexible design adapts to any location where you want to add a personalised touch of colour.

Features of the 5m 24V DC RGB Submersible LED Strip 12mm Wide cut at Every 10cm IP68

The 5m 24V DC RGB Submersible LED Strip 12mm Wide cut at Every 10cm IP68 has a length of 5 metres and integrates 300 high efficiency SMD5050 technology LEDs. The RGB LEDs allow for a wide range of colours, allowing you to customise the lighting to your liking. The bright light it emits is distributed at an angle of 120º. A power supply is required for operation.

The electronics of the LED Strip are coated with epoxy resin, which protects it from shocks and humidity. The IP68 protection factor makes this LED lighting perfect not only for outdoor spaces, but also for underwater use.

This LED strip can be cut every 10 cm, which allows full utilisation and perfect adaptation to the required length.

Advantages of the 5m 24V DC RGB Submersible LED Strip 12mm Wide cut at Every 10cm IP68

The RGB LED Strip 24V DC 60LED/m 5m Submersible IP68 Width 12mm Cut-off every 10cm is very versatile and allows for a wide variety of applications, such as accent lighting, decorative lighting or wayfinding. In addition, the extra flat design provides an ideal lighting effect for all types of projects with minimal visual impact. The strip comes with a 3M adhesive strip that makes it very easy to install on almost any surface.

Thanks to the wide range of colours offered, this LED strip is ideal for creating personalised atmospheres and bringing any space to life. It can be used on facades, pergolas, corridors, showcases, shelves, etc.
