Range Advanced
  • 36 W
    Wattage 36 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 5040 lm
    Lumen 5040 lm
  • 216
    Number of LEDs 216
Image of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
    Image of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
    Video of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
    Image of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
    Image of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
    Image of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
    Image of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
    Image of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
    Image of LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE
1 / 8
  • 36 W

    Wattage

    36 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 5040 lm

    Lumen

    5040 lm

  • 216

    Number of LEDs

    216

  • 0.9

    Power Factor

    0.9

  • IP66

    IP Rating

    IP66

  • No

    Battery Operated

    No

  • 69.5 mm x 85.5 mm x 1200 mm

    Dimensions

    69.5 mm x 85.5 mm x 1200 mm

  • 85.5 mm

    Width

    85.5 mm

  • 69.5 mm

    Height

    69.5 mm

  • IK08

    IK Protection

    IK08

  • 140 lm/W

    Luminous Efficiency

    140 lm/W

LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE

Download technical datasheet

Ref. Ledkia: 118700

Colour Temperature No Flicker Cool White 4000K

33,79 €

VAT included
Energetic efficiency

Pre-Order, estimated shipping from 09/06/2026

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Length120 cm
  • Depth1200 mm
  • Height69.5 mm
  • Width85.5 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    Instruction Manual

  • pdf file

    DoC_118700_249514

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle120º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
      LED Performance140 lm/W
    • Light ColourCool White
    • Linkable connectionYes
    • Lumen5040 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency140 lm/W
    • Maximum linkable number9
    • Maximum linkable power350 W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Number of LEDs216
    • Power Factor0.9

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage220 V - 240 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage36 W

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+40 °C
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK08
    • InstallationSurface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP66
    • LocationOutdoor, Indoor
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+40 °C

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesFlexiLite

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC

  • Driver Information

    • WifiNo

Description

Tri-proof LED enclosure for technical lighting projects: 36 W, driver for 220–240 V AC and linkable system with end-to-end connectors. Offers high output at 140 lm/W and robust surface installation for continuous light lines.

General information about LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE

This tri-proof luminaire integrates a sealed body in PC with opal diffuser and a high-efficiency LED module that delivers 5.040 lm. The built-in driver operates on 220–240 V, ensuring stable operation with a PF of 0,90. Its IP66 enclosure provides resistance to dust and water jets, while the IK08 rating adds impact protection in demanding environments. The 120 cm format houses 216 LEDs and a wide beam angle of 120º for homogeneous distribution. As part of the FlexiLite series, it supports linkable installation and continuous runs. Dimensions are 69,5 mm x 85,5 mm x 1.200 mm, facilitating installation in linear layouts with minimal profile. It is supplied for surface mounting and is class II for electrical insulation. The working temperature spans -20 °C a +40 °C, covering typical industrial and service conditions.

Use and applications

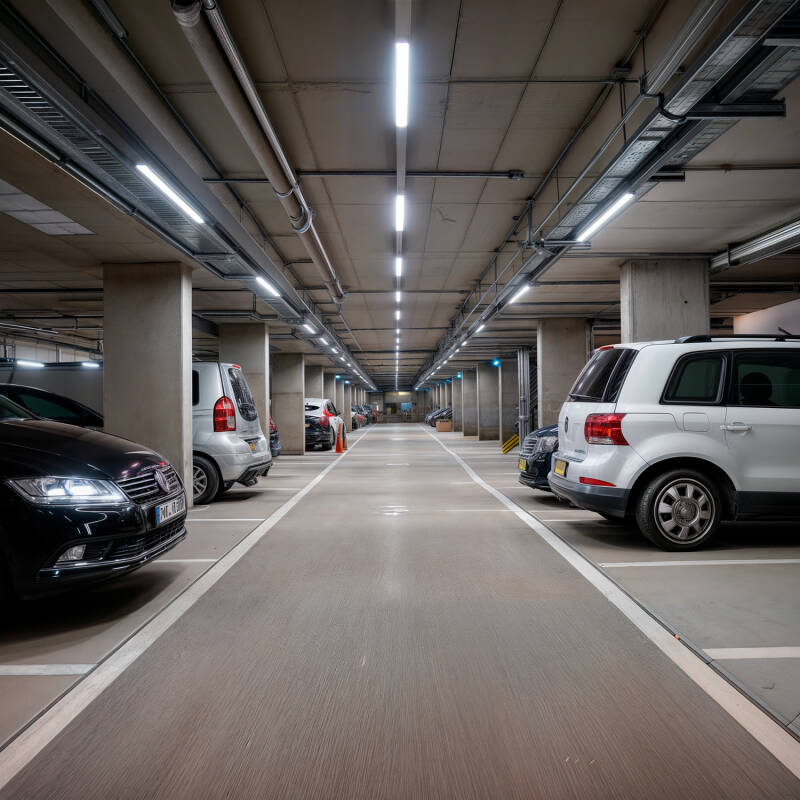

This tri-proof body provides uniform general lighting in technical environments, with a 120º opening supporting broad coverage. For indoor areas, it fits continuous lines in professional settings due to its linkable system and 5.040 lm output. For outdoor covered or exposed zones, the IP66 protection allows operation under dust and water jets, while IK08 improves mechanical robustness during routine handling or impacts.

In installations requiring straightforward integration with mains, the 220–240 V driver and PF 0,90 facilitate electrical design. Where thermal variance is present, the -20 °C a +40 °C range supports reliable operation without special conditioning. The class II construction simplifies protection measures in many layouts, and the surface brackets enable quick alignment for long, continuous rows.

Key benefits

  • Continuous light lines by linkable connection thanks to the linkable system and up to 9 units or 350 W totales.
  • High visual output due to 140 lm/W efficacy providing strong lumen delivery with contained power.
  • Operational security in harsh conditions by IP66 protection against dust and water jets.
  • Greater mechanical reliability through IK08 impact resistance on the enclosure.
  • Fast deployment on site through surface installation with compact 1.200 mm body.
  • Stable electrical behaviour by a mains driver with PF 0,90 in the 220–240 V range.

Highlighted specifications

Wattage: 36 W; Lumen: 5.040 lm; Beam angle: 120º; Ambient working temperature: -20 °C a +40 °C.

Installation and maintenance

Mount with the supplied surface brackets and secure the luminaire before electrical connection, as indicated in the mounting guide. Cable through the gland and connect to 220–240 V AC, 50/60 Hz; recommended supply conductor 1,5 mm² (manual, página 2). Do not install or store in corrosive environments with agents como azufre, cloro o ftalatos (manual, páginas 1–2). The light source is non-replaceable; at end of life, replace the entire luminaire (manual, página 2). Disconnect the power supply before any intervention.


Specialized lighting distribution in Ireland. If you are looking to buy LED Tri-Proof Light 120cm 4ft 36W High Lumen 140lm/W Linkable IP66 FLEXILITE with a professional warranty, the FlexiLite is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

  • What installation method is supported? — Surface mounting using brackets as indicated in the guide.
  • Can several units be connected in a row? — Yes, it allows linkable connection up to 9 luminaires or 350 W totales en conjunto.
  • What environmental conditions are acceptable? — Operation within -20 °C a +40 °C and protected against dust and water jets by IP66; avoid corrosive atmospheres.
  • Is the light source replaceable? — The integrated module is not replaceable; at end of life, the complete luminaire must be replaced.
  • What electrical supply is required? — Connection to 220–240 V AC, 50/60 Hz with recommended 1,5 mm² supply conductor.
