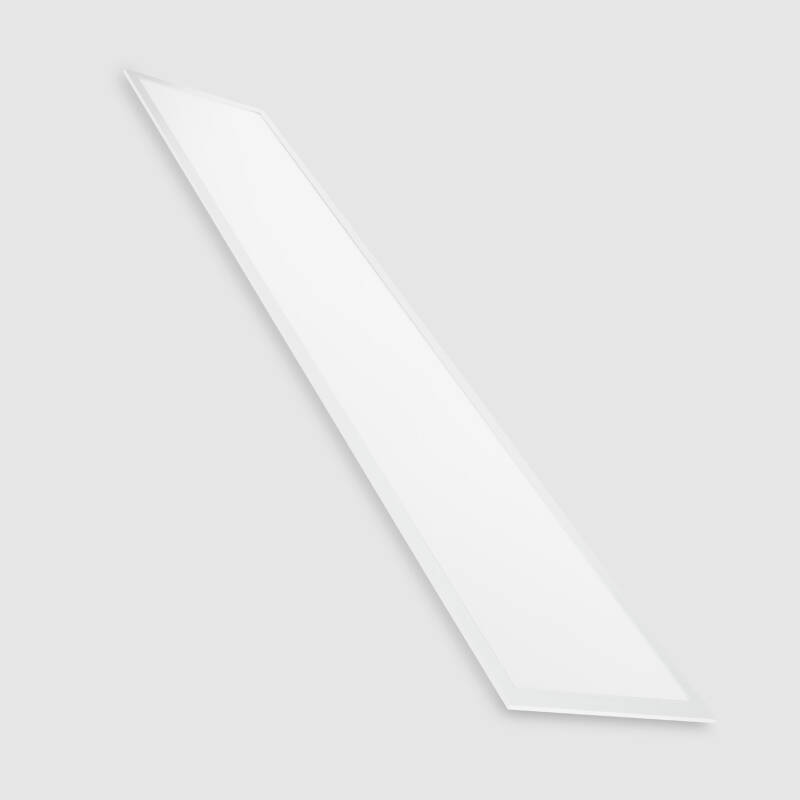

1200x300mm Nova Siri 28W LED Panel 5040lm 180 lm/W PHILIPS Certadrive

Technical Specifications

• Electrical Features

  • DimmableNo
  • Electrical Insulation ClassII
  • Frequency50-60 Hz
  • Light SourceSMD2835
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage30 V - 40 V
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage28 W

• Materials and Finishes

  • Box FormatIndustrial
  • ColourWhite
  • Fitting MaterialAluminium, Metal
  • Type Of LensOpaal

• LED Features

  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle120º
  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index80
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature4000K
  • Low-glare products offer more comfortable lighting, suitable for extended use.
    Glare FactorUGR <21
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours50.000 hours
  • Light ColourCool White
  • Lumen5040 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency180 lm/W
  • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
    No FlickerNo Flicker
  • Power Factor0.9

• Product Information

  • CertificatesCE, RoHS, LVD, EMC, UKCA
  • Guarantee3 years
  • Product SeriesNova Siri

• Mechanical Features

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-25 °C~+45 °C
  • Frame120x30 cm
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK04
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP22
  • LocationIndoor

• Driver Information

  • Driver BrandPHILIPS Certadrive
  • Driver Intensity700 mA
  • Driver Power28 W
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension30 V-40 V
  • Type Of DriverStandard
  • WifiNo
