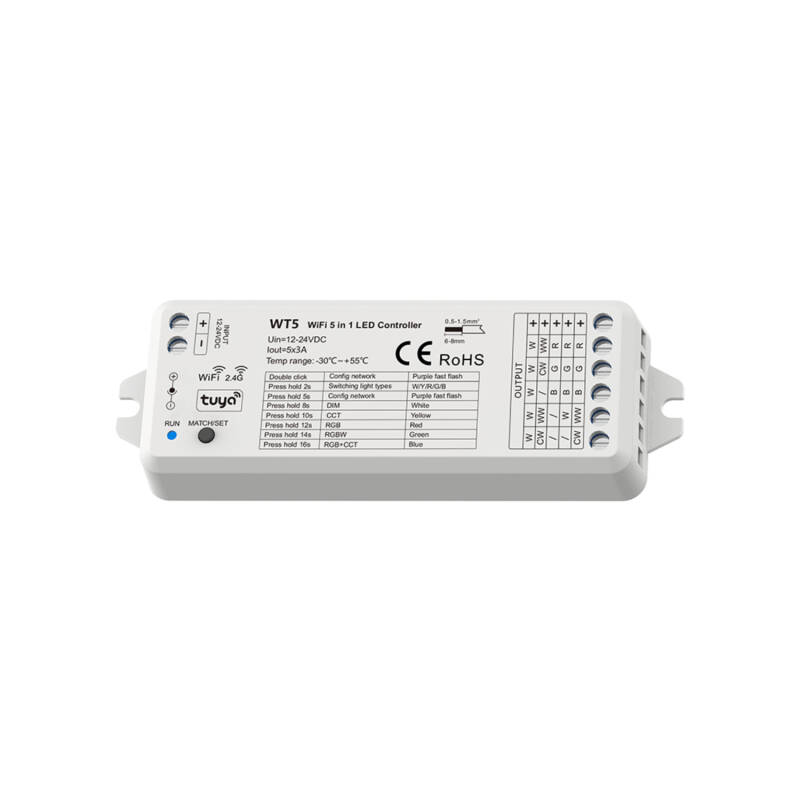

WiFi Controller for 12/24V RGB+CCT LED Strip SKYDANCE WT5 Compatible with RF Remote

The WiFi Controller SKYDANCE WT5 is a controller designed for 12V and 24V DC RGB+CCT LED strips, offering both Wi-Fi and RF connectivity for versatile lighting management. It operates with a maximum power of 360 W and a current intensity of 15,5 A, enabling precise control over lighting effects and colour temperature.

General information about WiFi Controller for 12/24V RGB+CCT LED Strip SKYDANCE WT5 Compatible with RF Remote

This device functions as a lighting control unit that integrates Wi-Fi and RF protocols to regulate LED strip lighting. It fits within professional lighting control systems, allowing remote adjustment of RGB and CCT channels. The controller features a compact design measuring 20 mm x 38 mm x 114 mm and includes protection rated as IP20. It supports configuration via the Tuya Smart app, facilitating flexible integration into indoor lighting installations. The unit complies with CE, RoHS, and UKCA certifications, ensuring adherence to European and UK standards.

Use and applications

Primarily, this controller manages the dimming and colour tuning of LED strips in indoor environments. It is suited for projects where precise control of RGB+CCT lighting is required, especially in professional or residential indoor spaces. The device is compatible with remote control via RF and app-based command through Tuya Smart, offering flexible operation for installers and end-users.

The controller requires a 12V or 24V DC power supply and connection to the LED strip wiring according to installation guidelines. It works in conjunction with RF remotes and app control, providing a reliable solution for lighting regulation in indoor settings. This product is designed for environments where robust connectivity and integration with wireless control systems are essential.

Key benefits

• Enables precise RGB+CCT lighting control thanks to integrated Wi-Fi and RF communication.
• Supports flexible remote management via RF remote and Tuya Smart app.
• Compact dimensions facilitate easy installation in indoor lighting projects.
• Certified with CE, RoHS, and UKCA for compliance with safety and quality standards.
• Operates reliably within a wide ambient temperature range from -30 °C to +55 °C.

Highlighted specifications

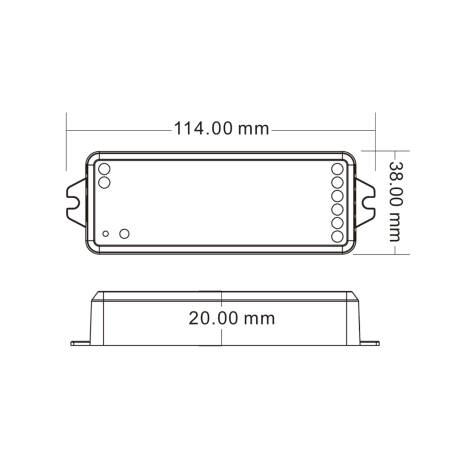

Maximum power: 360 W; Current capacity: 15,5 A; Voltage supply: 12V DC / 24V DC; Dimensions: 20 mm x 38 mm x 114 mm.

Installation and maintenance

Installation requires correct connection of the LED strip wiring to the controller terminals following the marked polarity and channel layout. Configuration involves pairing with the RF remote or linking to the Tuya Smart app for wireless control. The device must be installed in an indoor environment, avoiding exposure to moisture or dust beyond IP20 protection. Disconnect the power supply before any intervention to ensure safety. Proper mounting and cable management are essential for reliable operation and longevity.

Specialized lighting distribution in Ireland. If you are looking to buy WiFi Controller for 12/24V RGB+CCT LED Strip SKYDANCE WT5 Compatible with RF Remote with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

• How is the controller powered? — It requires a 12V or 24V DC power supply connected to the designated input terminals.
• Can the controller be used outdoors? — The device has an IP20 rating, so it is intended for indoor use only.
• How is the controller configured? — Configuration is done via RF remote pairing or through the Tuya Smart app.
• What types of LED strips are compatible? — It supports RGB+CCT LED strips operating at 12V or 24V DC.
• Is the controller compatible with voice assistants? — Compatibility claims are not confirmed and should be verified before use.
