Voltage Range 220-240V AC
Max Wattage 2400 W
Cut Out Dimensions Ø55 mm
Diameter 67 mm
Voltage Range
220-240V AC
Max Wattage
2400 W
Cut Out Dimensions
Ø55 mm
Diameter
67 mm
IP Rating
IP20
Dimensions
46.5 mm x Ø67 mm
Height
46.5 mm
Fitting Material
PC
Brand
MiBoxer
MiBoxer
MiBoxer HPS1-RF Recessed RADAR Motion Sensor
Ref. Ledkia: 179682
Manuf. ref.: 0096109
EAN 13: 8445044363094
18,40 €
VAT includedColour White
Producto no disponible
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

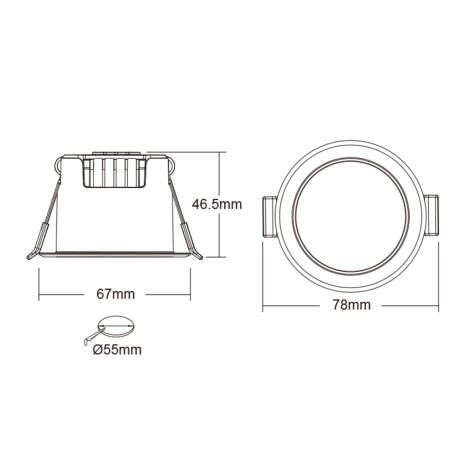

Dimensions
- Dimensions46.5 mm x Ø67 mm
- Cut Out DimensionsØ55 mm
Downloads
Technical Data Sheet PDF
HPS1_RF
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-10 °C~+40 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Detection distance range3 m - 8 m
- Detection Range120 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorRadar
- Sensor TypeRadar Motion
Electrical Features
- Frequency50-60 Hz
- Max Wattage2400 W
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Information
- BrandMiBoxer
- CertificatesCE, RoHS, UKCA, RED
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Driver Information
- WifiNo
Description
The MiBoxer HPS1-RF is a recessed radar motion sensor designed for indoor use, operating at a voltage range of 220-240V AC. This sensor features a 120° detection angle and supports a maximum load of 2400 W, making it suitable for precise presence detection in lighting control systems.
General information about MiBoxer HPS1-RF Recessed RADAR Motion Sensor
This radar motion sensor integrates seamlessly into lighting control installations, providing reliable presence detection for automated lighting management. Its recessed mounting design allows discreet integration into ceilings or panels. The device operates within a nominal voltage range of 100 V to 240 V and frequency of 50-60 Hz, ensuring compatibility with standard electrical networks. Although it features an IP20 protection rating, it is intended for indoor environments where protection against dust and moisture is not critical. The sensor’s radar technology enables accurate motion detection without relying on visible light, enhancing control reliability. Certified with CE, RED, RoHS, and UKCA, it meets relevant safety and electromagnetic compliance standards.
Use and applications
The primary function of the MiBoxer HPS1-RF sensor is to detect movement for lighting control, enabling automatic switching or dimming based on presence. It is ideal for indoor installations, particularly in professional environments such as offices or commercial buildings where precise lighting management is required. Thanks to its radar detection mode and recessed installation, it fits well in ceiling scenarios demanding aesthetic integration and reliable operation.
The sensor requires a standard 220-240 V AC supply and is designed for recessed mounting, ensuring a clean installation. No additional hubs or gateways are necessary for its basic operation, making it a straightforward solution for presence-based lighting control. Its integration facilitates efficient management of lighting circuits with loads up to 2400 W, supporting various lighting technologies through compatible control systems.
Key benefits
- Accurate presence detection thanks to radar technology, enabling responsive lighting control.
- Recessed design allows discreet installation, preserving ceiling aesthetics.
- Wide detection angle of 120°, covering extensive areas for efficient sensing.
- High load capacity up to 2400 W, suitable for various lighting circuits.
- Compliance with certifications including CE, RED, RoHS, and UKCA, ensuring safety and electromagnetic compatibility.
Highlighted specifications
Detection angle: 120°; Maximum load: 2400 W; Voltage range: 220-240 V AC; Ambient temperature: -10 °C to +40 °C.
Installation and maintenance
The MiBoxer HPS1-RF sensor is installed recessed into ceilings, requiring proper mounting according to the indicated installation system. It operates on a standard mains voltage and must be connected following electrical safety standards. Configuration involves integrating the sensor into the lighting control circuit, respecting its load capacity and detection parameters. Regular maintenance includes verifying sensor cleanliness and functionality to ensure optimal detection performance.
Disconnect the power supply before any intervention.
Specialized lighting distribution in Ireland. If you are looking to buy MiBoxer HPS1-RF Recessed RADAR Motion Sensor with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). Quality certified by CE, RED, RoHS, UKCA for professional installations and projects. Check price and availability here.
Frequently asked questions
- What type of sensor is the MiBoxer HPS1-RF? — It is a radar motion sensor designed for presence detection.
- Where is the sensor intended to be installed? — It is designed for recessed installation in indoor environments.
- What is the maximum load supported? — The sensor supports a maximum load of 2400 W.
- Is additional equipment required for operation? — No external hub or gateway is necessary for basic functionality.
- What is the operating voltage range? — The sensor operates between 220 and 240 V AC.
- How should the sensor be maintained? — Regular cleaning and functional checks are recommended to maintain detection accuracy.
