Voltage Range 12V DC, 24V DC
Max Wattage 288 W
IP Rating IP20
Battery Operated No
Voltage Range
12V DC, 24V DC
Max Wattage
288 W
IP Rating
IP20
Battery Operated
No
Dimensions
17 mm x 36 mm x 74.5 mm
Width
36 mm
Height
17 mm
Connectivity
Zigbee
Fitting Material
PC
Brand
MiBoxer
MiBoxer
MiBoxer SZ5 12/24V Zigbee Monochrome/CCT/RGB/RGBW/RGB+CCT compatible with RF Remote
Ref. Ledkia: 179612
Manuf. ref.: 0096028
EAN 13: 8445044362356
18,39 €
VAT includedNumber Of Channels 5
Producto no disponible
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions

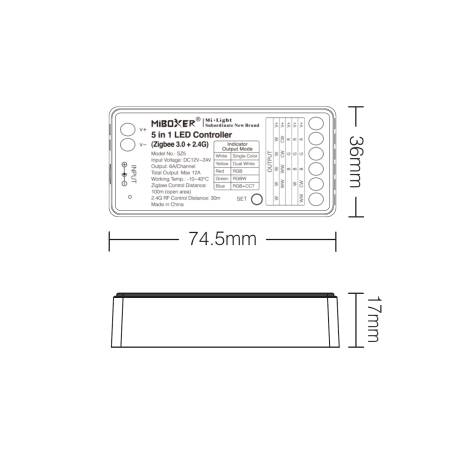

- Dimensions17 mm x 36 mm x 74.5 mm
Downloads
Technical Data Sheet PDF
SZ5
Certificates and Stamps
Technical Specifications
Electrical Features
- Max Wattage288 W
- Maximum Output Current12 A
- Voltage Range12V DC, 24V DCVoltage level required for the product to function correctly.
Driver Information
- ConnectivityZigbee
- WifiYes
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Mechanical Features
- Ambient Working Temperature-10 °C~+40 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandMiBoxer
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
The MiBoxer SZ5 is a control module designed for lighting regulation via Zigbee protocol, operating at a 12V or 24V DC voltage range. It supports multiple lighting types including Monochrome, CCT, RGB, RGBW, and RGB+CCT, and is compatible with RF remote control, offering versatile connectivity options for advanced lighting systems.
General information about MiBoxer SZ5 12/24V Zigbee Monochrome/CCT/RGB/RGBW/RGB+CCT compatible with RF Remote
This device functions as a control module that integrates into lighting automation systems to manage different types of LED lighting through Zigbee communication. It facilitates dimming and colour temperature adjustment for various lighting configurations. The module is housed in a plastic (PC) casing and operates safely within an indoor environment. Its compact dimensions of 17 mm x 36 mm x 74.5 mm make it suitable for discreet installation. The module is rated with IP20 protection, indicating basic protection against solid objects but no water resistance. It is certified under CE, RoHS, and UKCA standards, ensuring compliance with European and UK regulations.
Use and applications
This control module is intended for lighting regulation in indoor installations, making it suitable for projects in professional or residential settings where precise control of LED lighting types such as Monochrome, CCT, and RGB variants is required. It fits well in scenarios where Zigbee connectivity and RF remote control compatibility are essential for flexible lighting management.
The device operates on a 12V or 24V DC supply, which must be provided according to installation requirements. It does not include a remote control but supports compatibility with RF remotes. The module enables integration into lighting control systems via Zigbee protocol, allowing configuration and control through compatible interfaces. This solution is designed to support efficient dimming and colour control for diverse lighting channels.
Key benefits
- Enables precise dimming and colour temperature control thanks to support for multiple LED types including Monochrome, CCT, RGB, RGBW, and RGB+CCT.
- Offers versatile connectivity with Zigbee protocol and compatibility with RF remote control for flexible integration.
- Compact design with plastic housing suitable for indoor installation environments.
- Certified for safety and compliance with CE, RoHS, and UKCA standards.
- Operates on a low-voltage 12V or 24V DC supply, facilitating safe and efficient installation.
Highlighted specifications
Maximum power: 288 W; Protection rating: IP20; Dimensions: 17 mm x 36 mm x 74.5 mm; Ambient operating temperature: -10 °C to +40 °C.
Installation and maintenance
Installation must follow the indicated wiring and mounting procedures according to the system design. The module requires connection to a 12V or 24V DC power source and integration into a Zigbee-enabled network. Configuration includes pairing with compatible RF remotes or control systems. Proper cable management and secure mounting are essential for reliable operation. Disconnect the power supply before any intervention.
Specialized lighting distribution in Ireland. If you are looking to buy MiBoxer SZ5 12/24V Zigbee Monochrome/CCT/RGB/RGBW/RGB+CCT compatible with RF Remote with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). Quality certified by CE, RoHS, and UKCA for professional installations and projects. Check price and availability here.
Frequently asked questions
- How is the module powered? — It operates with a 12V or 24V DC power supply.
- What type of lighting does it control? — It supports Monochrome, CCT, RGB, RGBW, and RGB+CCT LED lighting types.
- Is it suitable for outdoor use? — The device has IP20 protection, which is intended for indoor environments only.
- How is the module controlled? — Via Zigbee protocol and compatible RF remote controls.
- What certifications does it have? — It is certified with CE, RoHS, and UKCA marks.
