This product is discontinued
Below you can find the substitute product or some equivalents.
If you have any queries, please call us on telephone (01) 486 3779.
Wattage 40 W
Voltage Range 220-240V AC
Power Factor 0.9
IP Rating IP20
Wattage
40 W
Voltage Range
220-240V AC
Power Factor
0.9
IP Rating
IP20
Battery Operated
No
Dimensions
28 mm x 41 mm x 115 mm
Width
41 mm
Height
28 mm
Fitting Material
PC
Brand
LIFUD
LIFUD

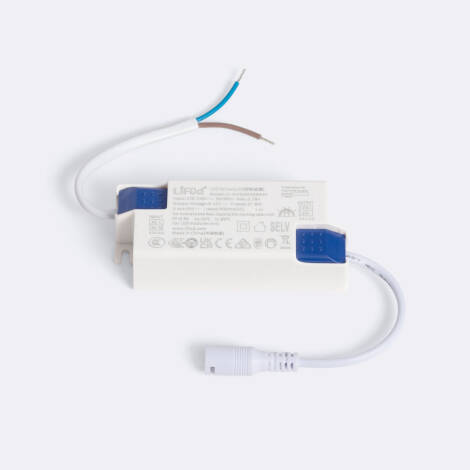

40W 25-42V Output 220-240V 1000mA LIFUD Driver LF-GIF040YS
Ref. Ledkia: 4232
Manuf. ref.: LF-GIF040Y-4232
6,69 €
220-240V LIFUD No Flicker Driver 9-42V Output 1000mA 40W LF-GIF040ES1000H
In Stock, delivery in 15-20 days
- Height 26 mm
- Working Temperature -30 °C~+45 °C
220-240V LIFUD No Flicker Driver 9-42V Output 1000mA 40W LF-GIF040ES1000H
In Stock, delivery in 15-20 days
6,69 €
Dimensions
- Depth115 mm
- Height28 mm
- Width41 mm
Downloads
Technical Data Sheet PDF
LF_GIF040YSDataSheetV1_1
DoC_4232_0
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage40 W
Product Information
- BrandLIFUD
- CertificatesCE, RoHS, TÜV
- Guarantee5 years
- Product SeriesGIFXXXY
LED Features
- Power Factor0.9
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Driver Information
- Driver Intensity1000 mA
- Driver Power40 W
- Driver Tension33 V-40 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverLIFUD
- WifiNo
Description
This Driver from the prestigious company LIFUD specially designed for LED panels, LED downlights, LED plates and LED ceiling lights because it incorporates the Jack. A LED driver is in charge of transforming the alternating current of the electrical network into direct current suitable for making the LED chips shine. To know if a driver is going to work with our luminary, PCB or panel we must consult the voltage and the output current of the driver.
Characteristics of the 40W 25-42V Output 220-240V 1000mA LIFUD Driver LF-GIF040YS
This driver has a multi-voltage output which means that it can deliver a constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. Once the driver is powered up, the voltage will be automatically adjusted and the voltage at the output will be constant. Its power factor is very high, making it a very efficient driver.
