Wattage 1500 W
Voltage Range 220-240V AC
Lumen 180000 lm
Type Of Dimming 0-10 V
Wattage
1500 W
Voltage Range
220-240V AC
Lumen
180000 lm
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
993 mm x 612 mm x 476 mm
Width
612 mm
Height
993 mm
IK Protection
IK10
Luminous Efficiency
150 lm/W

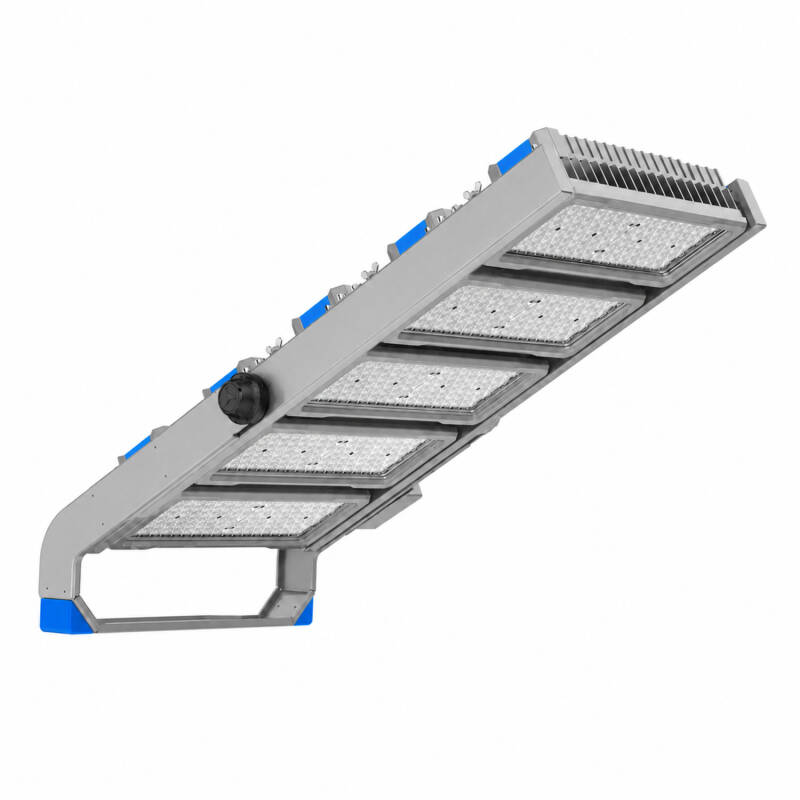

Professional Stadium 1500W LED Floodlight 0-10V DIMMABLE LUMILEDS 170lm/W INVENTRONICS IP66 Grey
Ref. Ledkia: 181301
Colour Temperature Daylight 5000K
Optic 60º
Pre-Order, estimated shipping from 30/10/2026
1.508,99 €
VAT includedPre-Order, estimated shipping from 30/10/2026
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

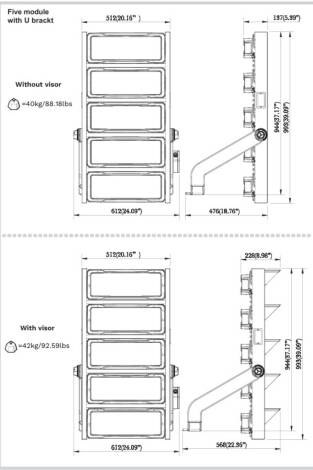

Dimensions
- Weight40 kg
- Dimensions993 mm x 612 mm x 476 mm
Downloads
PDF Datasheet 181301_367559 IE
Inventronics Driver Manual
Installation Manual
DoC_181301_367559
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Remote ControlNo
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage1500 W
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium, Glass, PC, Steel
- IncludesBracket, Quick Connector, Driver
- RAL Colour9006
Mechanical Features
- Ambient Working Temperature-30 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK10Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, On-wall base with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Modular Product (Requires Assembly)Yes
- Optic60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Rotation Angle0 ° - 90 °
Driver Information
- Auxiliary Cable0-10V
- Driver BrandINVENTRONICS
- Driver Intensity1600 mA
- Driver Power50 W-500 W
- Driver Tension480 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee7 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours80.000 HorasEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance170 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen180000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 5
Description
The Professional Stadium 1500W LED Floodlight offers powerful outdoor illumination with a 0-10V dimmable driver and IP66 protection, designed for demanding environments and precise lighting control.
General information about Professional Stadium 1500W LED Floodlight 0-10V DIMMABLE LUMILEDS 170lm/W INVENTRONICS IP66 Grey
This floodlight belongs to the Stadium Profesional series, featuring a modular design with a combination of steel, aluminium, glass, and polycarbonate materials. It integrates LUMILEDS SMD2835 LEDs with a luminous efficiency of 150 lm/W and a total luminous flux of 180,000 lumens. The fixture includes an INVENTRONICS driver with 0-10 V dimming capability and is rated IK10 and IP66 for impact and ingress protection. It has an electrical insulation class I and a power factor of 0.95, ensuring compatibility with standard 220-240V AC supplies.
Use and applications
This floodlight is intended for outdoor use and is suitable for illuminating access points, façades, gardens, yards, perimeters, and internal roads. It is ideal for sectors such as public administration, construction, energy facilities, hospitality, industry, logistics, offices, residential communities, retail, and transport areas. Its robust design and high luminous output make it well-suited for large-scale lighting projects requiring reliable performance.
Key benefits
- High luminous output: delivers 180,000 lumens for extensive area coverage using LUMILEDS technology.
- 0-10V dimming control: allows precise adjustment of light levels for energy management and ambience.
- Durable protection: rated IP66 and IK10, ensuring resistance to dust, water jets, and mechanical impacts.
- Long lifespan: with a life expectancy of 80,000 hours, reducing frequency of replacements.
- Modular construction: facilitates installation and maintenance with included bracket, quick connector, and driver.
Highlighted specifications
Wattage: 1500 W; Dimensions: 993 mm x 612 mm x 476 mm; Overvoltage protection: 10 kV; Colour rendering index (CRI): 80.
Installation and maintenance
The floodlight is designed for surface mounting using the included U-bracket, compatible with wall, pole, and on-wall base installations. The modular assembly requires customer installation following the provided manual. Electrical connections include a quick connector and must be performed with the power disconnected. Maintenance should comply with standard safety procedures and the driver specifications.
Frequently asked questions
- What type of dimming does this floodlight support? — It supports 0-10 V dimming for flexible light control.
- Is the floodlight suitable for outdoor environments? — Yes, it has an IP66 rating for protection against dust and water jets.
- What is the expected lifespan of the LEDs? — The product has a life expectancy of 80,000 hours.
- Which driver brand is used in this floodlight? — It uses an INVENTRONICS driver.
- Does the floodlight include mounting accessories? — Yes, it includes a bracket, quick connector, and driver.
Specialized technical lighting distribution in Ireland. If you are looking to buy Professional Stadium 1500W LED Floodlight 0-10V DIMMABLE LUMILEDS 170lm/W INVENTRONICS IP66 Grey for a technical or professional project, this reference gathers the indicated specifications for its application. Estimated shipping time of 3 to 4 days (subject to stock availability). CE, RoHS, UKCA certifications apply. Check price and availability.
This product requires assembly by the customer. For correct handling and installation, please refer to the installation manual.
