Wattage 900 W
Voltage Range 220-240V AC
Lumen 135000 lm
Number of LEDs 408
Wattage
900 W
Voltage Range
220-240V AC
Lumen
135000 lm
Number of LEDs
408
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
137 mm x 510 mm x 651 mm
Width
510 mm
Height
137 mm
IK Protection
IK10
Professional Stadium 900W LED Floodlight 0-10V Dimmable LUMILEDS 170lmn/W INVENTRONICS IP66
Ref. Ledkia: 181129
Colour Temperature Daylight 5000K
Optic 30º
In Stock, delivery in 16-21 days
915,99 €
VAT includedIn Stock, delivery in 16-21 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

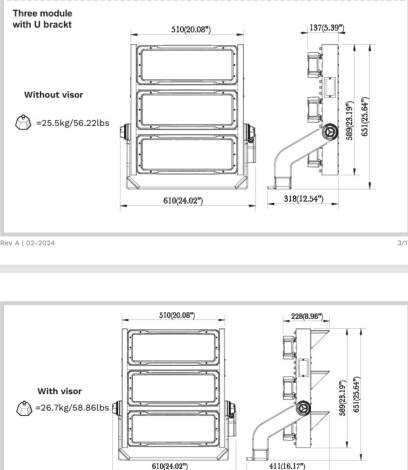

Dimensions
- Dimensions137 mm x 510 mm x 651 mm
- Weight25.5 kg
Downloads
PDF Datasheet 181129_366169 IE
Inventronics Driver Manual
Installation Manual
DoC_181129_366169
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Remote ControlNo
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage900 W
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium, Glass, PC, Steel
- IncludesBracket, Quick Connector, Driver
- RAL Colour9006
Mechanical Features
- Ambient Working Temperature-30 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK10Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketPole with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Modular Product (Requires Assembly)Yes
- Optic30ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Rotation Angle0 ° - 90 °
Driver Information
- Auxiliary Cable0-10V
- Driver BrandINVENTRONICS
- Driver Intensity1600 mA
- Driver Power50 W-500 W
- Driver Tension480 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
- WifiNo
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee7 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- HoursL70 100.00 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance170 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen135000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Number of LEDs408
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 5
Description
The Professional Stadium 900W LED Floodlight offers high-performance outdoor lighting with 0% ULOR and IP66 protection, featuring a 0-10V dimmable driver for adaptable illumination control.
General information about Professional Stadium 900W LED Floodlight 0-10V Dimmable LUMILEDS 170lmn/W INVENTRONICS IP66
This floodlight belongs to the Stadium Profesional series, designed for professional outdoor lighting applications. It incorporates LUMILEDS SMD2835 LEDs with a luminous efficiency of 150 lm/W and a total luminous flux of 135,000 lumens. The product features a steel and aluminium body with glass and polycarbonate components, ensuring an IK10 impact resistance grade and IP66 ingress protection. The integrated INVENTRONICS driver supports 0-10 V dimming, operating at a voltage range of 220-240 V AC. The floodlight has a nominal voltage range of 100 V - 277 V and a power factor of 0.95.
Use and applications
This floodlight is intended for outdoor use and is suitable for illuminating access points, façades, gardens, yards, perimeter walls, and internal roads. It is designed for sectors including public administration, construction, energy, industry, logistics, offices, residential communities, retail, and transport facilities. Its robust construction and high luminous output make it ideal for large-scale outdoor environments requiring powerful and adaptable lighting.
Key benefits
- High luminous efficiency: Provides 150 lm/W ensuring effective illumination for large outdoor areas.
- 0-10 V dimming: Enables precise adjustment of light levels for energy management and visual comfort.
- Robust construction: Steel and aluminium body with IK10 impact protection ensures resistance to mechanical stress.
- Weather protection: IP66 rating guarantees protection against dust and water ingress in outdoor environments.
- Zero upward light output ratio (ULOR 0%): Minimizes light pollution by preventing upward light emission.
Highlighted specifications
Power: 900 W; Dimensions: 137 mm x 510 mm x 651 mm; Colour Rendering Index (CRI): 80; Ambient working temperature: -30 °C to +45 °C.
Installation and maintenance
Installation is surface-mounted using the included bracket and pole with U-bracket system. The floodlight includes a quick connector and driver for simplified wiring. It requires assembly by the customer. Disconnect the power supply before installation or maintenance to ensure safety.
Frequently asked questions
- Is the driver dimmable? — Yes, it supports 0-10 V dimming.
- What is the IP rating? — The product has an IP66 rating for dust and water protection.
- Does it include mounting accessories? — Yes, it includes a bracket and quick connector.
- What is the impact resistance? — The floodlight has an IK10 rating.
- Is assembly required? — Yes, the product is modular and requires assembly by the customer.
Specialized technical lighting distribution in Ireland. If you are looking to buy Professional Stadium 900W LED Floodlight 0-10V Dimmable LUMILEDS 170lmn/W INVENTRONICS IP66 for a technical or professional project, this reference gathers the indicated specifications for its application. Estimated shipping time of 3 to 4 days (subject to stock availability). CE, RoHS, UKCA certified. Check price and availability.
This product requires assembly by the customer. For correct handling and installation, please refer to the installation manual.
