Wattage 1200 W
Voltage Range 220-240V AC
Lumen 180000 lm
Number of LEDs 408
Wattage
1200 W
Voltage Range
220-240V AC
Lumen
180000 lm
Number of LEDs
408
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
137 mm x 510 mm x 852 mm
Width
510 mm
Height
137 mm
IK Protection
IK10
Professional Stadium 1200W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS
Ref. Ledkia: 181126
Colour Temperature Daylight 5000K
Optic 60º
In Stock, delivery in 16-21 days
1.217,99 €
VAT includedIn Stock, delivery in 16-21 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Videos
Grey StadiumTutorial

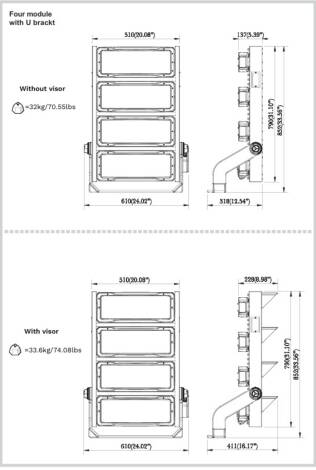

Dimensions
- Dimensions137 mm x 510 mm x 852 mm
- Weight32 kg
Downloads
PDF Datasheet 181126_366223 IE
Inventronics Driver Manual
Installation Manual
DoC_181126_366223
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Remote ControlNo
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage1200 W
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium, Glass, PC, Steel
- IncludesBracket, Quick Connector, Driver
- RAL Colour9006
Mechanical Features
- Ambient Working Temperature-30 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK10Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, On-wall base with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Modular Product (Requires Assembly)No
- Optic60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Rotation Angle-30 ° - 30 °
Driver Information
- Auxiliary Cable0-10V
- Driver BrandINVENTRONICS
- Driver Intensity1600 mA
- Driver Power50 W-500 W
- Driver Tension480 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee7 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours80.000 HorasEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance170 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen180000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Number of LEDs408
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 5
Description
The Professional Stadium 1200W LED Floodlight offers high-performance outdoor lighting with 0-10V dimming capability and a luminous efficiency of 150 lm/W, featuring a modular design and IP66 and IK10 protection for demanding environments.
General information about Professional Stadium 1200W LED Floodlight
This floodlight belongs to the Stadium Profesional series, designed for professional outdoor illumination. It incorporates a LUMILEDS SMD2835 light source with a power of 1200 W and a luminous flux of 180,000 lumens. The product includes a driver by INVENTRONICS with 0-10 V dimming and an overvoltage protection of 10 kV. Its construction features a body made of steel and aluminium with glass and PC components, ensuring compliance with CE, RoHS, and UKCA certificates. The floodlight has a power factor of 0.95 and a colour rendering index of 80.
Use and applications
This floodlight is indicated for outdoor use and is suitable for a variety of spaces such as access points, façades, gardens, outdoor car parks, yards, perimeters, and internal roads. It is oriented towards sectors including public administration, construction, energy stations, industry, logistics, residential communities, and transport facilities, providing versatile lighting solutions for large-scale and industrial environments.
Key benefits
- High luminous efficiency ensures effective illumination with a luminous efficiency of 150 lm/W.
- Robust protection with IP66 rating and IK10 impact resistance suitable for harsh outdoor conditions.
- Adjustable lighting levels through confirmed 0-10 V dimming for precise control of light output.
- Modular design facilitates flexible installation and maintenance, with included bracket, quick connector, and driver.
- Long service life with an indicated 80,000 hours of operation, reducing replacement frequency.
Highlighted specifications
Power: 1200 W; Protection rating: IP66; Impact resistance: IK10; Voltage range: 220–240 V AC; Dimensions: 137 mm x 510 mm x 852 mm.
Installation and maintenance
Installation is designed for surface mounting using the included bracket. The floodlight supports installation on walls, poles, or on-wall bases with U-brackets. Electrical connections include a quick connector and require adherence to safety protocols, including disconnecting power before intervention. The product is modular and requires assembly by the customer, with detailed instructions available in the installation manual.
Frequently asked questions
- Does the floodlight support dimming? — Yes, it features 0-10 V dimming capability.
- What is the protection rating of the floodlight? — It has a degree of protection IP66.
- Which driver brand is included? — The floodlight includes an INVENTRONICS driver.
- Is the product suitable for outdoor use? — It is designed specifically for outdoor environments.
- What is the expected service life? — The indicated service life is 80,000 hours.
Specialized technical lighting distribution in Ireland. If you are looking to purchase Professional Stadium 1200W LED Floodlight for a professional or technical project, this reference meets the specified requirements for its application. Estimated shipping time of 3 to 4 days (subject to stock availability). CE, RoHS, and UKCA certified. Check price and availability.
This product requires assembly by the customer. For correct handling and installation, please refer to the installation manual.
