Wattage 300 W
Voltage Range 220-240V AC
Lumen 45000 lm
Number of LEDs 408
Wattage
300 W
Voltage Range
220-240V AC
Lumen
45000 lm
Number of LEDs
408
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
140 mm x 297 mm x 484 mm
Width
297 mm
Height
140 mm
IK Protection
IK10
Profesional Stadium 300W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS
Ref. Ledkia: 181063
Colour Temperature Daylight 5000K
Optic 30º
In Stock, delivery in 16-21 days
322,99 €
VAT included
In Stock, delivery in 16-21 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

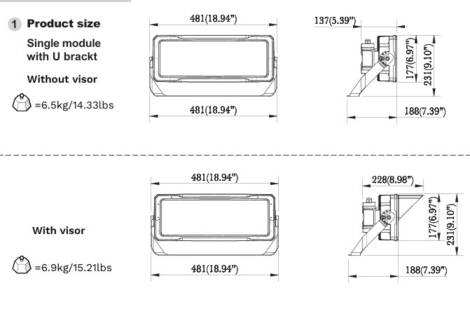

Dimensions
- Dimensions140 mm x 297 mm x 484 mm
- Weight6.5 kg
Downloads
PDF Datasheet 181063_366061 IE
Inventronics Driver Manual
Installation Manual
DoC_181063_366061
Certificates and Stamps
Technical Specifications
Driver Information
- Auxiliary Cable0-10V
- Driver BrandINVENTRONICS
- Driver Intensity1600 mA
- Driver Power50 W-500 W
- Driver Tension480 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Selectable Wattage300 W - 200 W - 100 W
- Type Of Driver0-10V
- WifiNo
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage300 W
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium, Glass, PC, Steel
- IncludesBracket, Quick Connector, Driver
- RAL Colour9006
Mechanical Features
- Ambient Working Temperature-30 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK10Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, On-wall base with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Modular Product (Requires Assembly)Yes
- Optic30ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Rotation Angle0 ° - 90 °
LED Features
- Brightness range45000 lm - 30000 lm - 15000 lm
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours80.000 HorasEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance170 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen45000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Number of LEDs408
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 5
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
- Product SeriesStadium PRO-I
Description
The Profesional Stadium 300W LED Floodlight is designed for outdoor lighting with 0-10V dimming control and a luminous efficiency of 150 lm/W, offering a high-performance solution for demanding environments.
General information about Profesional Stadium 300W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS
This floodlight belongs to the Stadium Profesional series and features a modular design with a combination of steel and aluminium components, along with a glass and polycarbonate cover. It integrates a LUMILEDS SMD2835 light source and an INVENTRONICS driver with 0-10 V dimming capability. The product offers a luminous flux of 45,000 lumens at 300 W power and includes overvoltage protection up to 10 kV. Its protection ratings are IP66 and IK10, suitable for outdoor installations requiring durability and resistance to impacts.
Use and applications
Indicated for outdoor environments, this floodlight is suited for illuminating access points, façades, and outdoor car parks. It is oriented towards sectors such as public administration, construction, industry, logistics, and transport facilities. Its robust design and high luminous output make it appropriate for demanding professional and technical applications in areas requiring reliable and adjustable lighting.
Key benefits
- High luminous efficiency: Provides 150 lm/W, ensuring effective illumination with controlled power consumption.
- Dimmable driver: Equipped with a 0-10 V dimmable INVENTRONICS driver, allowing precise adjustment of light levels.
- Robust protection: Rated IP66 and IK10 for resistance against dust, water, and mechanical impacts.
- Overvoltage protection: Integrated protection up to 10 kV safeguards the floodlight from electrical surges.
- Long service life: Life expectancy of 80,000 hours reduces the frequency of replacements in demanding installations.
Highlighted specifications
Power: 300 W; Dimensions: 140 mm x 297 mm x 484 mm; Colour Rendering Index: 80; Ambient working temperature: -30 °C to +45 °C.
Installation and maintenance
Installation is surface-mounted using included brackets with options for wall, pole, or on-wall base mounting with U-bracket support. The product includes a quick connector and driver for simplified wiring. Installation must follow the specific mounting system indicated, and the electrical insulation class is I. Disconnect the power supply before any intervention. Maintenance should comply with technical manuals to ensure correct operation.
Frequently asked questions
- Is the floodlight dimmable? — Yes, it supports 0-10 V dimming control.
- What is the protection rating? — The floodlight has IP66 and IK10 protection ratings.
- Does it include mounting accessories? — It includes a bracket and quick connector for installation.
- What is the expected lifespan? — The product has an indicated life of 80,000 hours.
- Can it operate in low temperatures? — It operates between -30 °C and +45 °C ambient temperature.
Specialized technical lighting distribution in Ireland. If you are looking to buy Profesional Stadium 300W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS for a professional or technical project, this reference gathers the indicated specifications for its application. Estimated shipping time of 3 to 4 days (subject to stock availability). CE, RoHS, and UKCA certified. Check price and availability.
This product requires assembly by the customer. For correct handling and installation, please refer to the installation manual.
