Wattage 600 W
Voltage Range 220-240V AC
Lumen 90000 lm
Number of LEDs 408
Wattage
600 W
Voltage Range
220-240V AC
Lumen
90000 lm
Number of LEDs
408
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
137 mm x 510 mm x 450 mm
Width
510 mm
Height
137 mm
IK Protection
IK10
Profesional Stadium 600W LED Floodlight 0-10V Dimmable LUMILEDS 170lm/W INVENTRONICS
Ref. Ledkia: 181058
Colour Temperature Daylight 5000K
Optic 60º
In Stock, delivery in 16-21 days
624,99 €
VAT includedIn Stock, delivery in 16-21 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Videos
Grey StadiumTutorial

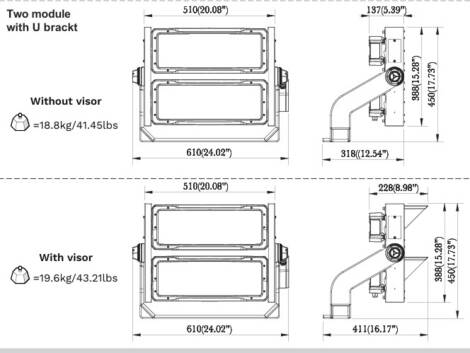

Dimensions
- Dimensions137 mm x 510 mm x 450 mm
- Weight18.8 kg
Downloads
PDF Datasheet 181058_366008 IE
Inventronics Driver Manual
Installation Manual
DoC_181058_366008
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Remote ControlNo
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage600 W
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium, Glass, PC, Steel
- IncludesBracket, Quick Connector, Driver
- RAL Colour9006
Mechanical Features
- Ambient Working Temperature-30 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK10Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, On-wall base with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Modular Product (Requires Assembly)No
- Optic60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Rotation Angle-30 ° - 30 °
Driver Information
- Auxiliary Cable0-10V
- Driver BrandINVENTRONICS
- Driver Intensity1600 mA
- Driver Power50 W-500 W
- Driver Tension480 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
- WifiNo
Product Information
- CertificatesRoHS, CE, UKCA
- Guarantee7 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours80.000 HorasEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance170 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen90000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Number of LEDs408
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 5
Description
The Profesional Stadium 600W LED Floodlight offers high-power outdoor lighting with 0-10V dimming control and a luminous efficiency of 150 lm/W, designed for demanding environments requiring robust performance and precise regulation.
General information about Profesional Stadium 600W LED Floodlight
This LED floodlight belongs to the Stadium Profesional series, featuring a 600 W power rating and delivering up to 90,000 lumens. It incorporates a LUMILEDS SMD2835 light source combined with an INVENTRONICS driver supporting 0-10 V dimming. The fixture is built with a steel and aluminium body and a glass front, providing a degree of protection IP66 and IK10 impact resistance. It includes overvoltage protection rated at 10 kV and a power factor of 0.95, ensuring electrical stability.
Use and applications
Ideal for outdoor locations, this floodlight is suitable for illuminating access points, façades, gardens, outdoor car parks, yards, perimeters, and internal roads. It is oriented towards sectors such as public administration, construction, energy facilities, industry, logistics, residential communities, and transport and mobility areas. Its robust protection and high luminous output make it appropriate for challenging environments requiring reliable, high-intensity lighting.
Key benefits
- High luminous output: provides powerful illumination with 90,000 lumens ensuring visibility in large outdoor spaces.
- Precise dimming control: 0-10 V regulation allows adjustment of light levels to suit specific needs and energy management.
- Durable construction: made with steel and aluminium materials and protected by IP66 and IK10 ratings for resistance against dust, water, and impacts.
- Reliable driver: equipped with an INVENTRONICS driver designed for stable performance and compatibility with the dimming system.
- Overvoltage protection: safeguards electrical components with a protection level of 10 kV, enhancing operational safety.
Highlighted specifications
Power: 600 W; Luminous efficiency: 150 lm/W; Protection: IP66, IK10; Power factor: 0.95; Colour rendering index: 80.
Installation and maintenance
The floodlight is designed for surface mounting and includes installation options with a U-bracket suitable for walls, poles, and on-wall bases. It comes with a bracket, quick connector, and driver included. Installation must be performed by qualified personnel, following safety instructions such as disconnecting the mains power before any intervention. The LED driver should only be connected once installation is complete.
Frequently asked questions
- What type of dimming does this floodlight support? — It supports 0-10 V dimming for adjustable light output.
- What is the ingress protection rating? — The product has a degree of protection IP66, suitable for outdoor use.
- What materials are used in the construction? — The body is made of steel and aluminium with a glass front.
- Is overvoltage protection included? — Yes, it features protection rated at 10 kV.
- What is the expected lifespan? — The floodlight has a rated life of 80,000 hours.
Specialized technical lighting distribution in Ireland. If you are looking to buy Profesional Stadium 600W LED Floodlight for a technical or professional project, this reference meets the specifications indicated for its application. Estimated shipping time of 3 to 4 days (subject to stock availability). Check price and availability.
Installation notice: before starting, switch off the mains power supply. The LED driver must not be connected to the mains until installation is fully complete. Installation by a qualified installer is recommended.
This product requires assembly. Please refer to the installation manual for correct handling and assembly.
*The customer’s visual perception of sizes, colors, or textures may be affected by factors such as lighting, screen calibration, or the device used. For this reason, the images are merely illustrative and may not fully reflect the product’s actual characteristics. Please note that some of the ambient photographs shown on the website correspond to real environments, while others may have been generated or edited using artificial intelligence. In no case do they constitute an exact representation of the product or intend to mislead. To learn about the product’s real characteristics, please refer to the technical sheet and product description.
