Wattage 600 W
Voltage Range 220-240V AC
Lumen 90000 lm
Type Of Dimming 0-10 V
Wattage
600 W
Voltage Range
220-240V AC
Lumen
90000 lm
Type Of Dimming
0-10 V
Power Factor
0.98
IP Rating
IP66
Battery Operated
No
Dimensions
447 mm x 196 mm x 353 mm
Width
196 mm
Height
447 mm
IK Protection
IK08
Luminous Efficiency
150 lm/W

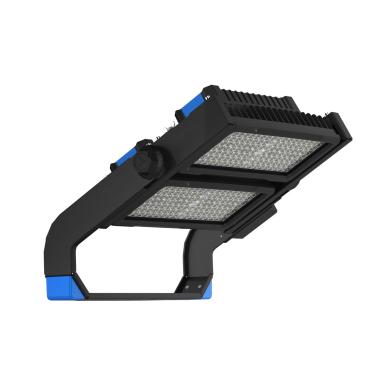

LIFUD 0-10V Dimmable 600W Stadium LED Floodlight 160lm/W IP66
Ref. Ledkia: 110478
Colour Temperature Daylight 5000K
Optic 60º
In Stock, delivery in 16-21 days
Premium range
646,99 €Before 552,99 €
507,99 €
VAT included
In Stock, delivery in 16-21 days
Modular Product (Requires Assembly)
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions447 mm x 196 mm x 353 mm
- Cable Length60 mm
- Weight8.25 kg
Downloads
PDF Datasheet 110478_225303 IE
Stadium LIFUD Installation Manual
DoC_110478_225303
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceSMD5050
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage600 W
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Ceiling with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Modular Product (Requires Assembly)Yes
- Optic60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Special Installation EnvironmentHigh ambient temperature
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours60.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance160 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen90000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.98
- Standard colour deviation (MacAdam)SDCM ≤ 5
Materials and Finishes
- ColourBlack
- Fitting MaterialPC, Aluminium
Driver Information
- Driver BrandLIFUD
- Driver Intensity0.9 A
- Driver Power180 W
- Driver Tension90 V - 305 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The LIFUD 0-10V Dimmable 600W Stadium LED Floodlight offers high luminous efficiency with IP66 protection and IK08 impact resistance, designed for demanding indoor and outdoor environments.
General information about LIFUD 0-10V Dimmable 600W Stadium LED Floodlight 160lm/W IP66
This stadium LED floodlight belongs to the Stadium Profesional series and features a modular design with a 600 W power rating and a luminous efficiency of 150 lm/W. It incorporates a LIFUD driver with 0-10 V dimming capability and operates within a voltage range of 220-240 V AC. The product is built with a die-cast aluminium and PC body and provides overvoltage protection up to 6 kV. Certified with CE, RoHS, and UKCA marks, it ensures compliance with essential safety and quality standards. More details about this floodlight series can be found here.
Use and applications
This LED floodlight is suitable for both indoor and outdoor installations, making it ideal for public administration and industrial production sectors. It is recommended for illuminating access points such as entrances and roundabouts as well as building façades. Its robust protection ratings and high ambient temperature tolerance enable use in challenging environments requiring reliable and powerful lighting solutions.
Key benefits
- High luminous efficiency of 150 lm/W ensures effective lighting output for large areas.
- 0-10 V dimming allows precise adjustment of light levels to suit different needs.
- IP66 rating provides strong protection against dust and water ingress for outdoor use.
- IK08 impact resistance enhances durability against mechanical impacts.
- Overvoltage protection up to 6 kV safeguards the floodlight against electrical surges.
Highlighted specifications
Power: 600 W; Dimensions: 447 mm x 196 mm x 353 mm; Colour Rendering Index (CRI): 70; Ambient working temperature: -20 °C to +50 °C.
Installation and maintenance
The floodlight is designed for surface mounting using a U-bracket, allowing installation on walls or ceilings. It supports mounting options including wall with U-bracket, on-wall base with U-bracket, and ceiling with U-bracket. Installation must comply with electrical safety standards, and it is essential to disconnect the power supply before any intervention. Maintenance procedures should follow the installation manual to ensure correct handling and longevity.
Frequently asked questions
- What type of dimming does this floodlight support? — It supports 0-10 V dimming for adjustable light levels.
- What is the IP rating of this product? — It has a grade of protection IP66, suitable for outdoor environments.
- Which driver brand is used? — The floodlight includes a LIFUD driver.
- What is the impact resistance rating? — It features IK08 protection against mechanical impacts.
- Is assembly required? — Yes, this is a modular product requiring assembly by the customer.
Specialized technical lighting distribution in Ireland. If you are looking to buy LIFUD 0-10V Dimmable 600W Stadium LED Floodlight 160lm/W IP66 for a technical or professional project, this reference gathers the indicated specifications for its application. Estimated shipping in 3 to 4 days (subject to stock availability). CE, RoHS, UKCA certifications apply. Check price and availability.
This product requires assembly by the customer. For correct handling and installation, please refer to the installation manual.
