Wattage 400 W
Voltage Range 220-240V AC
Lumen 60000 lm
Type Of Dimming 0-10 V
Wattage
400 W
Voltage Range
220-240V AC
Lumen
60000 lm
Type Of Dimming
0-10 V
Power Factor
0.98
IP Rating
IP66
Battery Operated
No
Dimensions
340 mm x 115 mm x 351 mm
Width
115 mm
Height
340 mm
IK Protection
IK08
Luminous Efficiency
150 lm/W

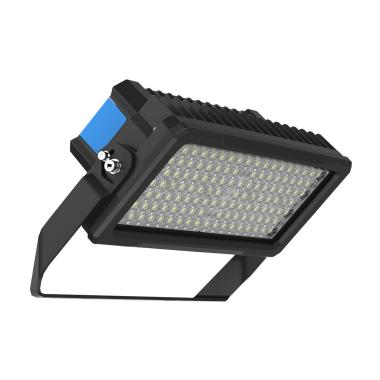

LIFUD 0-10V Dimmable 400W Stadium LED Floodlight 160lm/W IP66
Ref. Ledkia: 110463
Colour Temperature Daylight 5000K
Optic 60º
In Stock, delivery in 16-21 days
Premium range
322,99 €Before 371,99 €
338,99 €
VAT included
In Stock, delivery in 16-21 days
Modular Product (Requires Assembly)
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions340 mm x 115 mm x 351 mm
- Weight5.05 kg
- Cable Length60 mm
Downloads
PDF Datasheet 110463_225102 IE
Stadium LIFUD Installation Manual
DoC_110463_225102
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceSMD5050
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage400 W
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Ceiling with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Modular Product (Requires Assembly)Yes
- Optic60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Special Installation EnvironmentHigh ambient temperature
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours60.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance160 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen60000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.98
- Standard colour deviation (MacAdam)SDCM ≤ 5
Materials and Finishes
- ColourBlack
- Fitting MaterialPC, Aluminium
Driver Information
- Driver BrandLIFUD
- Driver Intensity0.9 A
- Driver Power180 W
- Driver Tension90 V - 305 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The LIFUD 0-10V Dimmable 400W Stadium LED Floodlight offers high-performance lighting with IP66 protection and an IK08 impact resistance rating, designed for demanding indoor and outdoor environments requiring robust illumination.
General information about LIFUD 0-10V Dimmable 400W Stadium LED Floodlight 160lm/W IP66
This stadium LED floodlight belongs to the Stadium Profesional series, featuring a modular design with a 400 W power rating and a luminous efficiency of 150 lm/W. It integrates a LIFUD driver with 0-10 V dimming capability, delivering a high lumen output of 60,000 lm. The product combines an aluminium and polycarbonate body with an electrical insulation class I, ensuring compliance with CE, RoHS, and UKCA certifications. Its compact dimensions of 340 mm x 115 mm x 351 mm facilitate integration into various installations.
Use and applications
Suitable for both indoor and outdoor locations, this floodlight is ideal for illuminating access points, entrances, roundabouts, and façades. It is primarily targeted at the industry and production sectors, providing versatile lighting solutions for stadiums, sports facilities, and large-scale architectural applications requiring reliable and adjustable illumination.
Key benefits
- Dimmable control with 0-10 V enables precise adjustment of light levels to suit different environments and operational needs.
- High luminous efficiency of 150 lm/W ensures effective illumination with a powerful 60,000 lumen output.
- Robust IP66 protection safeguards the floodlight against dust and water ingress, suitable for harsh outdoor conditions.
- IK08 impact resistance provides protection against mechanical impacts, enhancing durability in demanding settings.
- Modular design allows for flexible assembly and maintenance, adapting to various installation requirements.
Highlighted specifications
Power: 400 W; Voltage range: 220-240 V AC; Driver power: 180 W; Colour rendering index (CRI): 70.
Installation and maintenance
The floodlight is designed for surface mounting with options for installation using a U-bracket on wall, on-wall base, or ceiling. Assembly is required as it is a modular product. Disconnect the power supply before any intervention. For correct handling and installation, refer to the installation manual. The product is suitable for environments with ambient temperatures between -20 °C and +50 °C, including areas with high ambient temperature.
Frequently asked questions
- Is the floodlight dimmable? — Yes, it supports 0-10 V dimming for adjustable light output.
- What is the protection rating? — It has an IP66 rating for dust and water resistance.
- What driver brand is used? — The product includes a LIFUD driver.
- Can it be installed outdoors? — Yes, it is suitable for both indoor and outdoor use.
- Does it require assembly? — Yes, it is a modular product that requires assembly by the customer.
Specialised technical lighting distribution in Ireland. If you are looking to buy LIFUD 0-10V Dimmable 400W Stadium LED Floodlight 160lm/W IP66 for a professional project, this reference meets the specifications indicated for its application. Estimated delivery in 3 to 4 days (subject to stock availability). CE, RoHS, UKCA certifications apply. Check price and availability.
This product requires assembly by the customer. For correct handling and installation, please refer to the installation manual.
