Panel Solar Fotovoltaico Monocristalino JINKO Tier 1 XXXW Tiger Pro KMXXXM-XXHLX

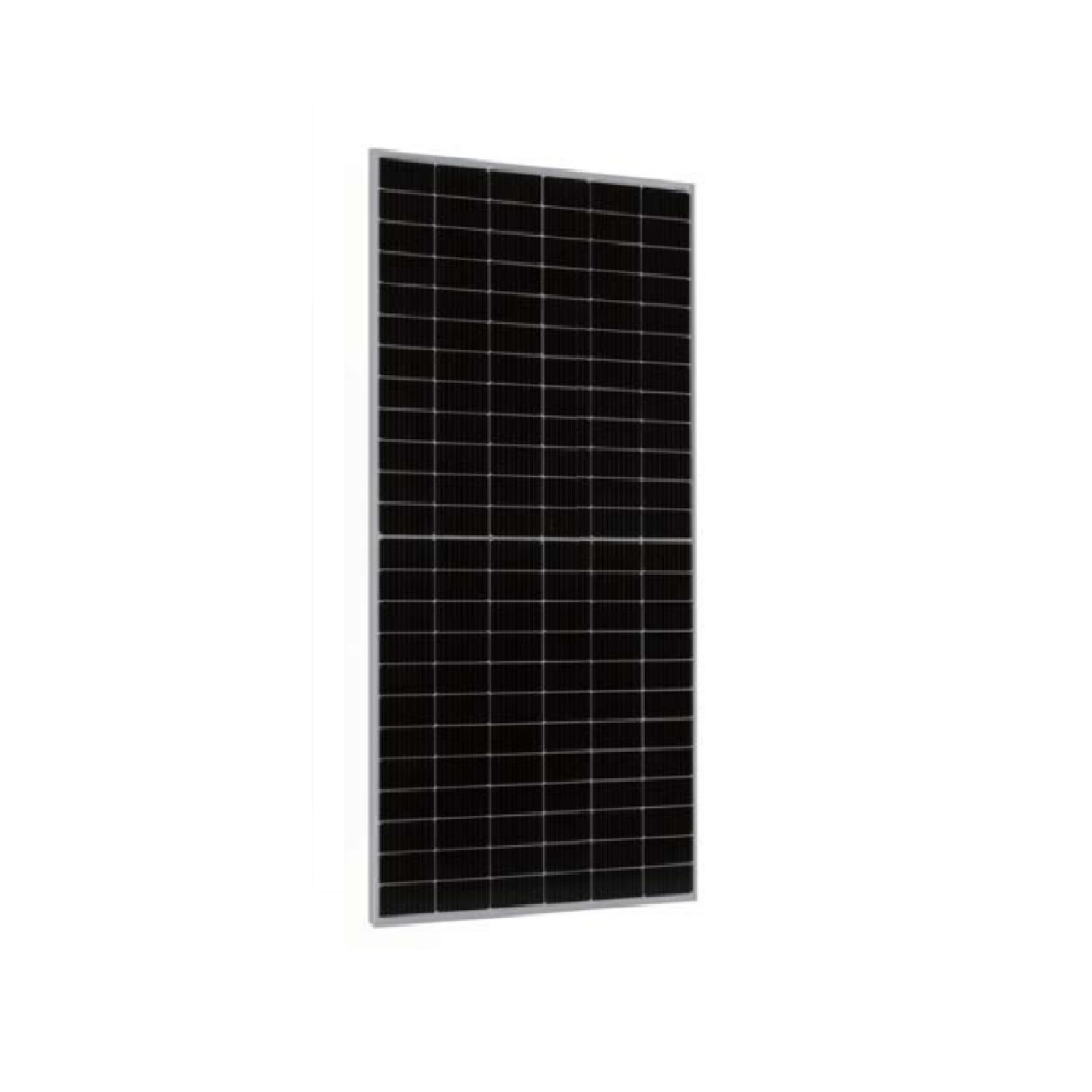

JINKO Tier 1 Monocrystalline Photovoltaic Solar Panel 545W Tiger Pro JKM545M-72HL4-V

Ref: 98574 / KMXXXM-XXHLX

Before

Price not available

Would you like us to call you?
FREE

JINKO Tier 1 Monocrystalline Photovoltaic Solar Panel 545W Tiger Pro JKM545M-72HL4-V

Ref: 98574 / KMXXXM-XXHLX

  • 545 W
  • IP68
  • 2274x1134x35mm
  • 10.6 A
  • 3 Years
  • 28.9 kg
  • Aluminium, Monocrystalline Silicon
  • Outdoor
  • -40ºC ~ +85ºC
  • 2P
  • 4mm²
  • 2274 mm

Similar products

Description JINKO Tier 1 Monocrystalline Photovoltaic Solar Panel 545W Tiger Pro JKM545M-72HL4-V

The Monocrystalline Solar Photovoltaic Panel JINKO Tier 1 545W Tiger Pro JKM545M-72HL4-V is a monocrystalline module of 545W and 144 cells of the brand JINKO SOLAR, one of the leading manufacturers in the global photovoltaic industry, is included in the Tier 1 list, as a first level manufacturer. It is ideal for both off-grid and grid-connected photovoltaic solar energy installations, for self-consumption or industrial solar installations.

Features of the JINKO Tier 1 545W Tiger Pro JKM545M-72HL4-V Monocrystalline Photovoltaic Solar Panel JINKO Tier 1 545W Tiger Pro JKM545M-72HL4-V

Modules of high quality and resistance, made of monocrystalline silicon with anodised aluminium frame. Can be combined with the latest generation of lithium batteries as well as traditional lead-acid and GEL/AGM batteries.

MBB (Multi Bus Bar) technology is used in the solar cells, which means that the number of BusBars in each solar cell is increased. This reduces the distance between the BusBars and the fingers of each cell, thus reducing the resistance and improving the flow of electric current. All this means that it is an advantage for the increase of the power, thus increasing the efficiency of the module.

The output power is higher than the same type of conventional monocrystalline modules. Excellent immunity to hot spots, as it can effectively prevent power loss caused by shadow cover and significantly extend the lifetime.

*Review manufacturer's warranty policy, terms and conditions.
* Compliant with ISO9001:2015, ISO14001:2015, ISO45001:2018 standards.
*IEC61215(2016), IEC61730(2016) product certification.

Characteristics JINKO Tier 1 Monocrystalline Photovoltaic Solar Panel 545W Tiger Pro JKM545M-72HL4-V

Power: 545 W
Maximum Tension: 49.52V DC
Intensity Level: 10.6 A
Max Shortciruit Current (A): 13.94 A
Wire Gauge: 4mm²
Use: Outdoor
IP Protection: IP68
Material: Aluminium, Monocrystalline Silicon
Size: 2274x1134x35mm
Height: 2274 mm
Width: 1134 mm
Length: 35 mm
Cable Length (+): 400mm//(-): 200mm
Total Weight: 28.9 kg
Working Temperature: -40ºC ~ +85ºC
Number of Cells: 144
Number of Protected Poles: 2P
Warranty: 3 Years
Certifications: TÜV, CE & RoHS
