Range Essential
  • 30 W
    Wattage 30 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • Ø275 mm
    Cut Out Dimensions Ø275 mm
  • 290 mm
    Diameter 290 mm

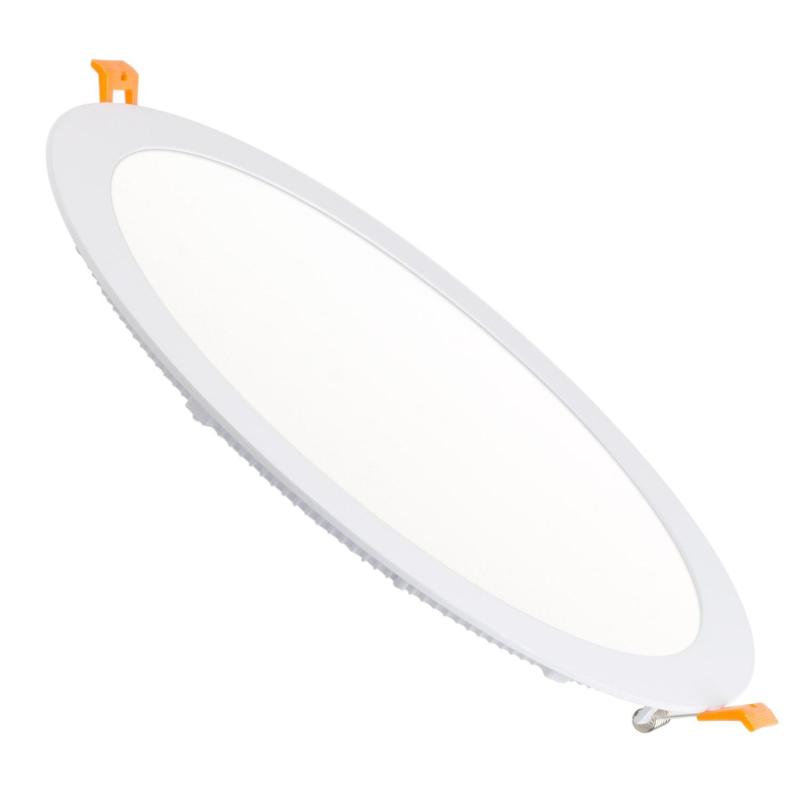

Image of Round SuperSlim 20W LED Downlight Ø275mm Cut Out
    Image of Round SuperSlim 20W LED Downlight Ø275mm Cut Out
    Image of Round SuperSlim 20W LED Downlight Ø275mm Cut Out
    Image of Round SuperSlim 20W LED Downlight Ø275mm Cut Out
    Image of Round SuperSlim 20W LED Downlight Ø275mm Cut Out
1 / 4
  • 30 W

    Wattage

    30 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • Ø275 mm

    Cut Out Dimensions

    Ø275 mm

  • 290 mm

    Diameter

    290 mm

  • 150

    Number of LEDs

    150

  • UGR <21

    Glare Factor

    UGR <21

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 28 mm x Ø290 mm

    Dimensions

    28 mm x Ø290 mm

  • 28 mm

    Height

    28 mm

  • IK05

    IK Protection

    IK05

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

Round SuperSlim 20W LED Downlight Ø275mm Cut Out

Download technical datasheet

Ref. Ledkia: 105401

Colour Temperature Daylight 5000K

8,69 €

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Height28 mm
  • Diameter290 mm
  • Cut Out DimensionsØ275 mm

Downloads

  • pdf file

    PDF Datasheet 105401_214983 IE

  • pdf file

    DoC_105401_214983

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Light SourceOSRAM SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage170 V - 265 V
    • Remote ControlNo
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage30 W

  • Materials and Finishes

    • Fitting MaterialPC, Aluminium
    • Type Of LensOpaal

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle120º
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <21
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourDaylight
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Number of LEDs150

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
      Fire RatedNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • ShapeCircular

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesSuperSlim

  • Driver Information

    • Driver Intensity300 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension72 V-95 V
    • WifiNo

Description

The Round SuperSlim 20W LED Downlight Ø275mm Cut Out is a recessed LED downlight featuring a 30 W power consumption and an OSRAM SMD2835 light source. It incorporates a high-performance driver operating between 72 V and 95 V, delivering a luminous efficacy of 100 lm/W and a glare factor controlled at UGR <21 for visual comfort.

General information about Round SuperSlim 20W LED Downlight Ø275mm Cut Out

This LED downlight is constructed with an aluminium and PC fitting, providing a robust and lightweight design. Its ultra-slim profile, with dimensions of 28 mm height and Ø290 mm diameter, allows discreet integration in ceilings. The product features an opal lens with a 120º beam angle, ensuring a balanced light distribution suitable for indoor environments. It offers protection against impacts rated at IK05 and electrical insulation class II, contributing to safety and reliability. The downlight is certified with CE, RoHS, and UKCA marks, aligning with professional standards. Its ambient working temperature ranges from -20 °C to +50 °C.

Use and applications

The Round SuperSlim 20W LED Downlight is designed for recessed installation, solving lighting needs in indoor settings such as offices or retail spaces, where controlled glare and efficient light output are essential. Its slim format and opal lens make it ideal for zones requiring a minimalist aesthetic combined with technical performance. The product fits well in commercial environments due to its IK05 impact resistance and electrical insulation class II, ensuring operational safety.

Operating within a voltage range of 220-240 V AC and a driver current of 300 mA, it adapts to standard electrical installations. Its temperature tolerance supports diverse indoor climates, while the recessed mounting method facilitates clean ceiling integration. This downlight provides a reliable lighting solution focused on consistent luminous efficiency and visual comfort.

Key benefits

  • High luminous efficacy thanks to the OSRAM SMD2835 LED source, delivering 100 lm/W.
  • Controlled glare with UGR <21, enhancing visual comfort in professional spaces.
  • Durable construction combining aluminium and PC materials for robustness.
  • Recessed installation allows seamless integration in ceilings for a minimalist look.
  • Wide operating temperature range from -20 °C to +50 °C, suitable for various indoor conditions.

Highlighted specifications

Power: 30 W; Beam angle: 120º; Driver current: 300 mA; Impact resistance: IK05.

Installation and maintenance

The downlight is designed for recessed mounting, ensuring a flush fit with ceiling surfaces. Installation requires a cut-out diameter of Ø275 mm, matching the product’s dimensions for secure fitting. The product must be handled carefully to maintain the integrity of the opal lens and aluminium frame. Electrical connection is compatible with 220-240 V AC systems, with driver tension ranging from 72 V to 95 V.

Disconnect the power supply before any intervention. Maintenance is minimal due to the long lifespan of 40.000 hours, reducing replacement frequency and ensuring consistent performance. Follow the indicated installation system for optimal results.


Specialized lighting distribution in Ireland. If you are looking to buy Round SuperSlim 20W LED Downlight Ø275mm Cut Out with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

  • What type of installation does the downlight require? — It is designed for recessed mounting with a cut-out diameter of Ø275 mm.
  • Is the downlight dimmable? — This model is not dimmable.
  • What is the expected lifespan of the LED downlight? — It offers a lifespan of 40.000 hours.
  • What materials are used in the construction? — The fitting combines aluminium and PC for robustness and lightweight design.
  • Does it have any impact protection rating? — Yes, it has an IK05 rating for impact resistance.
