Wattage 6 W
Voltage Range 220-240V AC
Lumen 470 lm
Cap Code GU10
Wattage
6 W
Voltage Range
220-240V AC
Lumen
470 lm
Cap Code
GU10
Cut Out Dimensions
75 mm x 150 mm
Power Factor
0.5
Glare Factor
UGR <19
IP Rating
IP20
Battery Operated
No
Dimensions
173 mm x 93 mm x 29 mm
Width
93 mm
Height
173 mm
Square Tilting 6W LED Downlight 75x150mm Cut Out GU10 PC
Ref. Ledkia: 78228
Colour Temperature No Flicker Cool White 4000K
Colour White / Black
In Stock, delivery in 15-20 days
Before 6,49 €
4,29 €
VAT included
In Stock, delivery in 15-20 days
Includes Bulbs
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

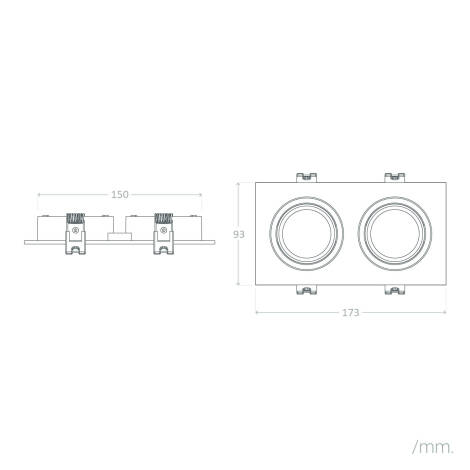

Dimensions
- Dimensions173 mm x 93 mm x 29 mm
- Cut Out Dimensions75 mm x 150 mm
Downloads
PDF Datasheet 78228_177484 IE
DoC_78228_177484
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceGU10 Bulb
- No. Of Lights2
- Nominal Voltage100 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage6 W
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Cap CodeGU10
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeSquare
Materials and Finishes
- ColourWhite / Black
- Fitting MaterialPC
- IncludesBulbs
- Type Of LensOpaal
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <19Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourCool White
- Lumen470 lm
- Luminous Efficiency92 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Power Factor0.5
Product Information
- CertificatesCE, RoHS, TÜV
- Guarantee3 years
Driver Information
- WifiNo
Description
