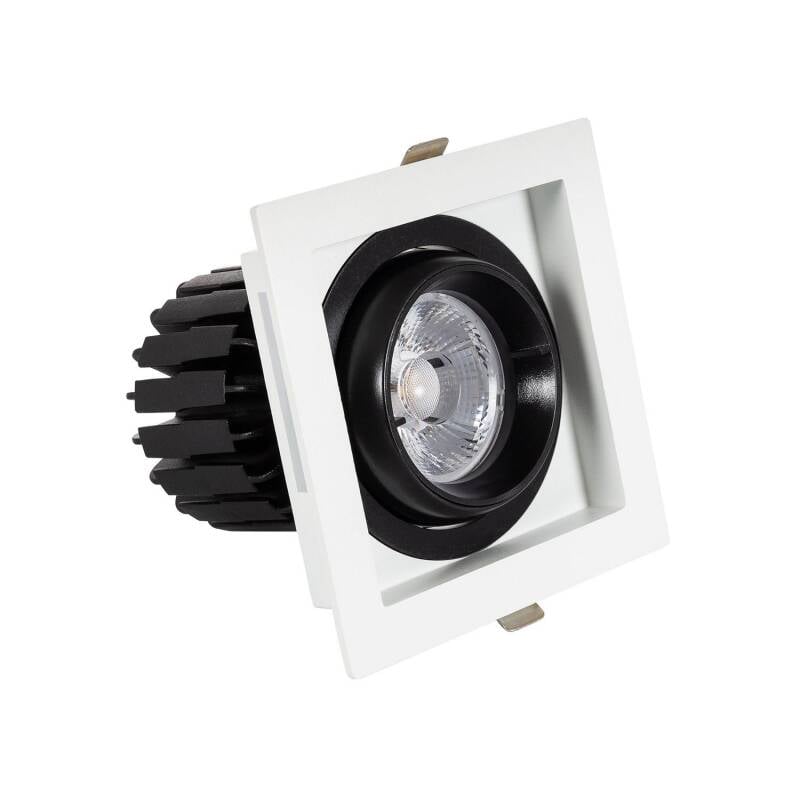

Square Adjustable 360º 12W LED Downlight 100x100mm Cut Out Expert Colour COB CRI90 No Flicker

This LED downlight delivers 12 watts of power with a high CRI of 90 for expert colour rendering. It features a COB light source and includes a driver, ensuring flicker-free operation and precise directional lighting.

General information about Square Adjustable 360º 12W LED Downlight 100x100mm Cut Out Expert Colour COB CRI90 No Flicker

This recessed square downlight is constructed with an aluminium fitting that provides durability and efficient heat dissipation. It incorporates a COB LED module with a luminous efficiency of 90 lm/W, producing a total flux of 1080 lumens. The product operates at a nominal voltage range of 100 V to 240 V and includes a driver with an output current of 250 mA and a tension range of 24 V to 42 V. It has a beam angle of 24º and a glare control factor of UGR <19, enhancing visual comfort in work environments. The downlight holds a protection rating of IP40 and electrical insulation class II, combining safety and performance. Its dimensions are 100 mm x 115 mm x 115 mm, with a cut-out size of 100 mm x 100 mm.

Use and applications

This LED downlight is designed for indoor installation, particularly suited to office workstations where high colour fidelity and controlled glare are essential for productivity. The aluminium construction and IP40 rating make it ideal for office zones, ensuring reliable performance in controlled indoor environments. Its recessed mounting supports a clean ceiling integration, contributing to a professional atmosphere in office spaces.

The product functions efficiently within an ambient temperature range of -20 °C to +50 °C and operates on a standard 220-240 V AC supply. It is non-dimmable but offers directional adjustment up to 360º, allowing precise light positioning. This feature supports tailored lighting solutions in offices, enhancing task lighting where needed.

Key benefits

• High colour rendering with CRI 90 for accurate visual tasks thanks to the expert colour LED module.
• Glare control with UGR <19 ensures comfortable lighting in workstations.
• Durable aluminium fitting provides effective heat management and longevity.
• Directional adjustment up to 360º allows flexible lighting orientation.
• Recessed installation offers seamless integration into ceilings.
• Includes a reliable driver that guarantees flicker-free performance.

Highlighted specifications

Power: 12 W; Luminous flux: 1080 lm; Beam angle: 24º; Protection rating: IP40; Electrical insulation: Class II; Lifetime: 40.000 hours.

Installation and maintenance

Installation requires a recessed mounting with a cut-out dimension of 100 mm x 100 mm. The product includes mounting clips to secure it firmly within the ceiling. Electrical connection must comply with the 220-240 V AC supply and respect the driver parameters of 24 V to 42 V output tension and 250 mA current. Maintenance is minimal due to the long lifespan of 40.000 hours and the robust aluminium construction.

Disconnect the power supply before any intervention.

Frequently asked questions

• What is the beam angle of this downlight? — It has a beam angle of 24º, suitable for focused lighting.
• Is this downlight dimmable? — This model is not dimmable and operates at a fixed output.
• What is the colour rendering index? — The CRI is 90, providing excellent colour fidelity.
• What is the expected lifetime? — The LED module has a lifespan of approximately 40.000 hours.
• Can this downlight be adjusted directionally? — Yes, it offers 360º adjustable orientation.
