Range Advanced
  • 5 W
    Wattage 5 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 450 lm
    Lumen 450 lm
  • Ø75 mm
    Cut Out Dimensions Ø75 mm
Image of Round Slim 5W LED Downlight with Ø75mm Cut Out COB CRI90
    Image of Round Slim 5W LED Downlight with Ø75mm Cut Out COB CRI90
    Image of Round Slim 5W LED Downlight with Ø75mm Cut Out COB CRI90
    Image of Round Slim 5W LED Downlight with Ø75mm Cut Out COB CRI90
    Image of Round Slim 5W LED Downlight with Ø75mm Cut Out COB CRI90
1 / 4
  • 5 W

    Wattage

    5 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 450 lm

    Lumen

    450 lm

  • Ø75 mm

    Cut Out Dimensions

    Ø75 mm

  • 86 mm

    Diameter

    86 mm

  • 1

    Number of LEDs

    1

  • 0.85

    Power Factor

    0.85

  • UGR <19

    Glare Factor

    UGR <19

  • IP44

    IP Rating

    IP44

  • No

    Battery Operated

    No

  • 28 mm x Ø86 mm

    Dimensions

    28 mm x Ø86 mm

  • 28 mm

    Height

    28 mm

Round Slim 5W LED Downlight with Ø75mm Cut Out COB CRI90

Download technical datasheet

Ref. Ledkia: 73239

Colour Temperature No Flicker Daylight 5000K

13,99 €

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

Includes Driver

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

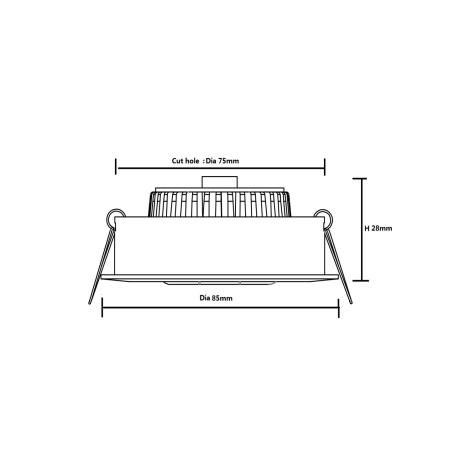

Dimensions

  • Height28 mm
  • Diameter86 mm
  • Cut Out DimensionsØ75 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_73239_148967

  • pdf file

    DoC_73239_148967

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Light SourceOSRAM
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage5 W

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle24º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourDaylight
    • Lumen450 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency90 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Number of LEDs1
    • Power Factor0.85

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalYes
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK02
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP44
    • LocationIndoor
    • ShapeCircular

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC, Aluminium
    • IncludesDriver

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years

  • Driver Information

    • Driver Intensity300 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension9 V-18 V
    • WifiNo

Description

The 5W COB Superslim Addressable Circular White Cut Ø75 mm LED Downlight Spotlight is a very versatile product that will allow us to replace the old spotlights that we find in all corridors, dining rooms and rooms with light bulbs , providing significant savings in electricity consumption.

Characteristics of the LED Downlight 5W COB Superslim Addressable Circular White Cut Ø75 mm


It incorporates a LED optics with a total power of 5W with which we obtain sufficient brightness to replace conventional bulbs of up to 38W. The high-quality light it emits is focused at an angle of 24º. Thanks to its high CRI of 90 value, it allows you to faithfully reproduce the colors of the objects around it, making it an ideal option for closets, shops, shop windows ...

Made of aluminum with a very elegant finish, the 5W COB Superslim Addressable Circular White Cut Ø75 mm LED Downlight has an estimated useful life of 20,000 hours . Its installation is very simple and only requires a Ø75 mm cut in the surface where it will be embedded.

By choosing LED lighting, we not only choose to save on the electricity bill, but we also opted for a more ecological technology, of higher quality and with a duration ten times longer than that of traditional lighting systems.

All the features of this LED lighting product make it perform well. Ideal for use in interior spaces where the use of a large amount of light is not necessary. See use especially in passageways such as hallways, corridors or stairs.
