Wattage 24 W
Voltage Range 220-240V AC
Lumen 2880 lm
Cut Out Dimensions Ø90 mm
Wattage
24 W
Voltage Range
220-240V AC
Lumen
2880 lm
Cut Out Dimensions
Ø90 mm
Diameter
102 mm
IP Rating
IP65
Battery Operated
No
Dimensions
85 mm x Ø102 mm
Height
85 mm
IK Protection
IK05
Luminous Efficiency
120 lm/W
Beam Angle
36º

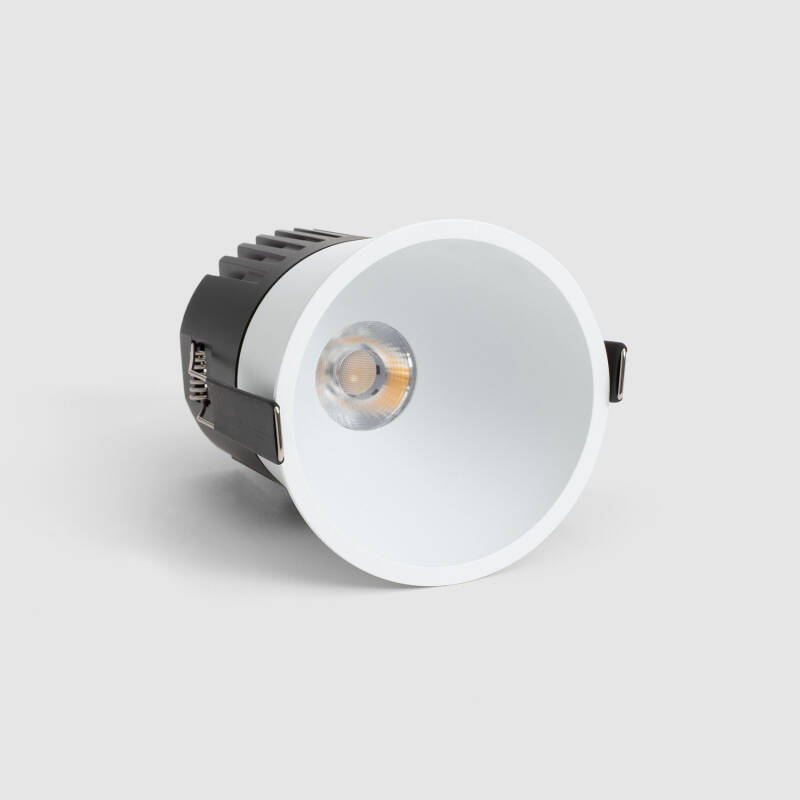

Deep LED Downlight 24W Ø90 mm Cut Out
Ref. Ledkia: 168120
Colour Temperature Selectable (Warm - Cool) 2700K - 3200K - 4000K
Colour White
In Stock, delivery in 15-20 days
22,49 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions85 mm x Ø102 mm
- Cut Out DimensionsØ90 mm
Downloads
PDF Datasheet 168120_344495 IE
DoC_168120_344495
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity600 mA
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage24 W
Mechanical Features
- Ambient Working Temperature0 °C~+60 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- ShapeCircular
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesDeep
LED Features
- Beam Angle36ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index90Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature2700K - 3200K - 4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourSelectable (Warm - Cool)
- Lumen2880 lm
- Luminous Efficiency120 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Driver Information
- Driver Intensity550 mA
- Driver Power24 W
- Driver Tension27 V-40 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
