0
  • 20 W
    Wattage 20 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 2200 lm
    Lumen 2200 lm
  • 0.9
    Power Factor 0.9

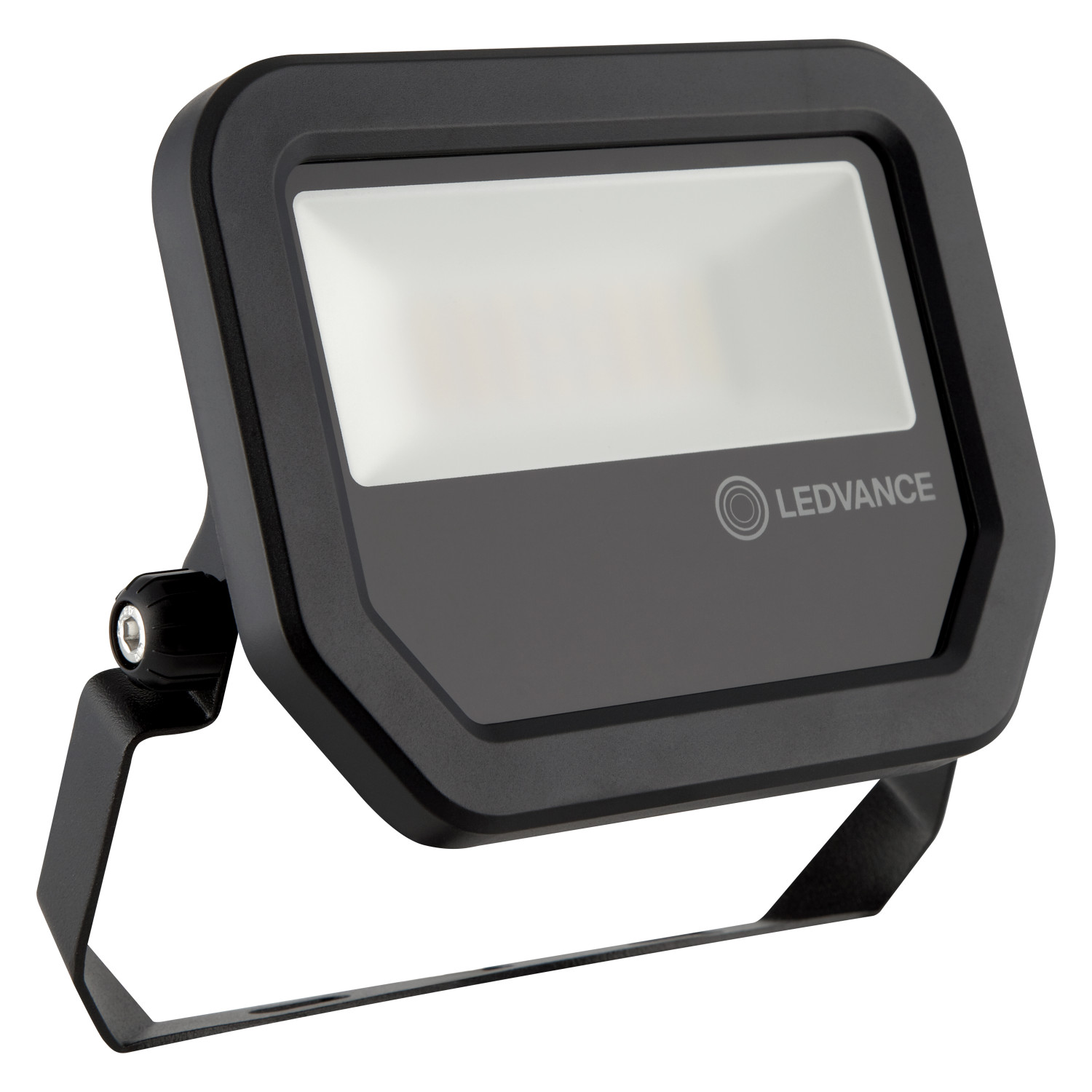

Image of 20W Performance LED Floodlight 110 lm/W IP65 LEDVANCE 4058075420960
    Image of 20W Performance LED Floodlight 110 lm/W IP65 LEDVANCE 4058075420960
    Image of 20W Performance LED Floodlight 110 lm/W IP65 LEDVANCE 4058075420960
    Image of 20W Performance LED Floodlight 110 lm/W IP65 LEDVANCE 4058075420960
1 / 3
  • 20 W

    Wattage

    20 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 2200 lm

    Lumen

    2200 lm

  • 0.9

    Power Factor

    0.9

  • UGR <19

    Glare Factor

    UGR <19

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 42 mm x 156 mm x 144 mm

    Dimensions

    42 mm x 156 mm x 144 mm

  • 156 mm

    Width

    156 mm

  • 42 mm

    Height

    42 mm

  • IK07

    IK Protection

    IK07

  • 110 lm/W

    Luminous Efficiency

    110 lm/W

LEDVANCE

20W Performance LED Floodlight 110 lm/W IP65 LEDVANCE 4058075420960

LEDVANCE
Download technical datasheet

Ref. Ledkia: 92223

Manuf. ref.: 4058075420960

EAN 13: 4058075420960

Colour Black

Colour Temperature Warm White 3000K

In Stock, estimated delivery from 20-30 days

22,29 €

VAT included
Energetic efficiency

In Stock, estimated delivery from 20-30 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Depth144 mm
  • Width156 mm
  • Height42 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_92223_192038

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceSMD
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 277 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage20 W

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature3000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours70.000hours
    • Light ColourWarm White
    • Lumen2200 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency110 lm/W
    • Power Factor0.9

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK07
    • InstallationSurface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor

  • Product Information

    • BrandLedvance
    • CertificatesCE, RoHS, CB, ENEC
    • Guarantee3 years
    • Product SeriesFloodlight PFM

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialGlass, Aluminium

  • Driver Information

    • WifiNo

Description

20W Performance LED Floodlight IP65 LEDVANCE is the most powerful LED floodlight, it stands out for its robustness and uniform illumination, manufactured with quality materials.

Tempered glass housing, this product has energy savings of up to 90% compared to halogen floodlights.

One of its main features is that it has no upper light output (ULOR 0%) when mounted at 0° inclination.

Perfect for illuminating garages, subways, public areas, facade construction, etc.

Reference: 4058075420960
