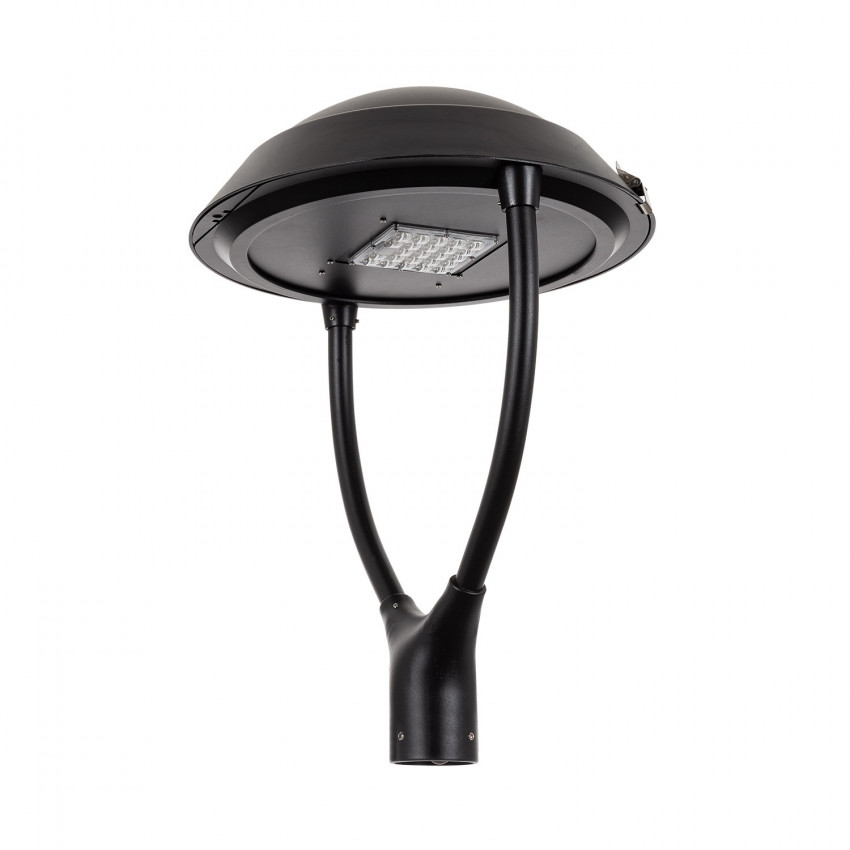

The 40W LED Street Light 5 Step Programmable LUMILEDS PHILIPS Xitanium Villa is one of the latest generation of luminaires, offering instantaneous ignition thanks to its LED technology, as well as great power. It is the ideal replacement for the old discharge lamps, improving the quality of light and significantly reducing energy consumption.
Characteristics of the 40W LED Street Light 5 Step Programmable LUMILEDS PHILIPS Xitanium Villa
Built into the LUXEON 5050 2D light source. The light source is protected with tempered glass with an IP66 protection factor that makes it weatherproof. Lumileds technology guarantees high light output with extreme durability. Lumileds is a company dedicated to the development, manufacture and distribution of lighting and also holds over 200 patents related to LED technology.
The body of the luminaire has been manufactured using the injection method to guarantee the optimum quality of the heatsink, in high quality aluminium. It has an interior hinge that improves its aesthetics without losing its versatility. It has been treated with a chemical and mechanical anti-corrosion treatment that is resistant to UV rays, which further improves its aesthetic durability. In addition, for greater safety the luminaire has a surge protector.
Characteristics of the 5 Steps Dimmable XITANIUM Driver
A LED driver transforms the alternating current from the mains into direct current suitable for shining the LED chips. The Xitanium Driver that it incorporates is from the prestigious company PHILIP, one of the most innovative and prestigious brands in the lighting industry. This driver is specially designed for Public Lighting. This range of drivers offers a unique reliability and flexibility, providing a high performance and optimum efficiency of LEDs. The entire range of Xitanium drivers incorporates an IP65 housing that protects against humidity, vibrations and temperature, guaranteeing maximum durability. In addition, it includes both over-temperature and surge protection.
In the case of this driver incorporates 5 steps, is to say 5 phases of regulation. This type of technology is called Fixed Time Based Dimming (FTBD), the 5 regulation phases are assigned a power and a time duration. In this way, when the traffic or the passers-by are practically null, the amount of light that the luminaire emits is reduced, adapting itself intelligently to the different night scenarios and reducing considerably the electrical consumption.
Reducing energy consumption means significant savings for any urban centre. Enjoy the best street lighting with the different options of our Villa Luminaire on our online store Ledia.
By default the luminaire driver is programmed in 4 steps:
Step 1: First hour → Brightness at 60%.
Step 2: Second hour → Brightness at 70%.
Step 3: Third hour → 80% Gloss
Step 4: Fourth hour → 90% Brightness
Step 5: Fifth hour to shutdown → Brightness at 100% Step 6: Fifth hour to shutdown → Brightness at 100% Step 7: Fifth hour to shutdown → Brightness at 100% Step 8: Fifth hour to shutdown
*Can be programmed on customer request
Thanks to our programmable luminaires, the brightness changes automatically to intelligently adapt to different night-time scenarios.
There are two types of fixture for this 40W Villa LUMILEDS PHILIPS Xitanium Programmable 5 Steps LED Luminaire. The fixing to the luminaire bracket will have a diameter of 27 mm and the fixing of the bracket to the column has a diameter of 77 mm
* The colour code of the luminaire is RAL 9011
* To install the LED Villa Luminaire on some columns you need the 'LED Villa Column Fixing Bracket' (see accessories).
