Wattage 150 W
Voltage Range 220-240V AC
Lumen 24000 lm
Number of LEDs 136
Wattage
150 W
Voltage Range
220-240V AC
Lumen
24000 lm
Number of LEDs
136
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No

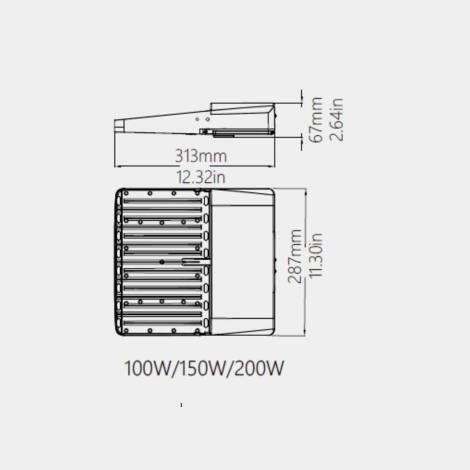

Dimensions
313 mm x 287 mm x 67 mm
Width
287 mm
Height
313 mm
IK Protection
IK08
Pyros II Premium LED Floodlight 0-10V Dimmable INVENTRONICS 160lm/W IP66
Ref. Ledkia: 178959
Wattage 150 W
Colour Temperature 5000K
Optic Type 3 S1 130x60
Light Colour Daylight
In Stock, delivery in 15-20 days
191,99 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Weight2.25 kg
- Dimensions313 mm x 287 mm x 67 mm
Downloads
PDF Datasheet 178959_361778 IE
Inventronics 240 W Driver Manual
Pyros_II_Manual_Instrucciones
DoC_178959_361778
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD5050
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage150 W
Materials and Finishes
- ColourGrey
- Fitting MaterialDie Cast Aluminium
- IncludesBracket, Quick Connector, Driver
- RAL Colour9006
- Type Of LensType II
Mechanical Features
- Ambient Working Temperature-40 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, Lower fitting, On-wall base with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- OpticType 3 S1 130x60Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Product Information
- CertificatesCE, RoHS, CB, UL, UKCA
- Guarantee5 years
- Product SeriesPyros II
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance175 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen24000 lm
- Luminous Efficiency160 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Number of LEDs136
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 2
Driver Information
- Driver Intensity1100 mA
- Driver Power240 W
- Driver Tension300 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
- WifiNo
Description
The Pyros II Premium LED Floodlight is a professional-grade projector designed for outdoor applications, featuring a dimmable 0-10 V Inventronics driver and delivering a luminous efficacy of 160 lm/W.
General information about Pyros II Premium LED Floodlight 0-10V Dimmable INVENTRONICS 160lm/W IP66
This floodlight is configured with a robust die cast aluminium housing and an IP66 rating, ensuring high resistance to dust and water ingress. It integrates a LUMILEDS SMD5050 light source combined with a 130° × 60° asymmetric optic for wide and directional light distribution. The product includes a driver with 0-10 V dimming capability and offers an IK08 impact protection rating. Its power factor is 0.95, and it provides overvoltage protection up to 10 kV. The electrical insulation class is I, and it has a colour rendering index (CRI) of 70. The ambient working temperature ranges from -40 °C to +45 °C, supporting demanding outdoor environments.
Use and applications
This floodlight is intended for outdoor use in various sectors, including public administration, construction, energy facilities such as petrol stations, industrial production, logistics, residential communities, and transport and mobility areas like stations and car parks. Its surface mounting installation and compatibility with multiple bracket types allow flexible placement on walls, poles, or other structures.
The combination of IP66 protection, sturdy aluminium construction, and adjustable dimming makes it suitable for illuminating access points, façades, yards, perimeters, and internal roads, providing adaptable lighting solutions for medium to large-scale projects.
Key benefits
- Enables precise lighting control through 0-10 V dimming, adapting illumination levels to project requirements.
- Durable construction with die cast aluminium and IK08 impact resistance ensures longevity in harsh outdoor conditions.
- High luminous efficacy of 160 lm/W optimises energy consumption while maintaining effective illumination.
- Comprehensive protection including IP66 rating and 10 kV overvoltage safeguard enhances reliability.
- Includes quick connector, bracket, and driver to facilitate installation and integration.
Highlighted specifications
Power Factor: 0.95; Colour Rendering Index: 70; Protection Rating: IP66; Impact Resistance: IK08.
Installation and maintenance
The floodlight is designed for surface mounting and can be installed using various bracket options including wall with U-bracket, pole with U-bracket, lower fitting, or on-wall base with U-bracket. Installation should follow the indicated mounting system to ensure proper fixation and safety. Regular inspection of the driver and connectors is recommended to maintain optimal performance. Disconnect the power supply before any intervention.
