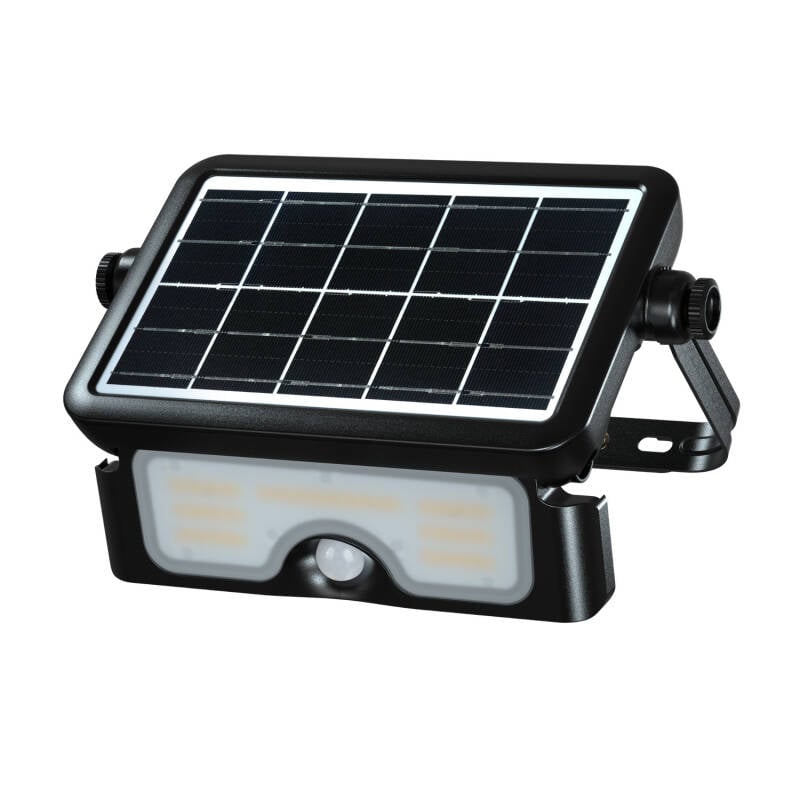

Solar LED Streetlight with PIR & Motion Sensor IP65

Technical Specifications

• Mechanical Features

  • Detection distance range6 m
  • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
    Detection Range120 °
  • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
    Fire RatedYes
  • InstallationWall, Surface
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP65
  • LocationOutdoor
  • SensorPIR
  • Sensor TypeMotion sensor + Daylight sensor

• LED Features

  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle120º
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature3000K - 4000K - 6000K
  • Equivalent power70 W
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours50.000 hours
  • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
    LED Performance140 lm/W
  • Light ColourSelectable (Warm - Cool - Daylight)
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency140 lm/W

• Electrical Features

  • Electrical Insulation ClassIII
  • Illumination Time10 Segon - 20 Segon
  • Light SourceSMD2835
  • Remote ControlNo
  • Voltage level required for the product to function correctly.
    Voltage Range12V DC
  • Wattage7 W

• Materials and Finishes

  • ColourBlack
  • Fitting MaterialABS Plastic, PC, Aluminium

• Product Information

  • CertificatesCE, RoHS, REACH
  • Guarantee3 years

• Driver Information

  • WifiNo

• Solar Panel Information

  • Solar Panel Current220 mA

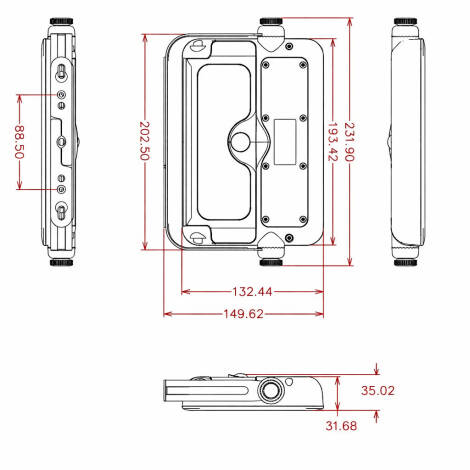

  • Solar Panel Dimensions132 mmx193 mm
  • Solar Panel Length193 mm
  • Solar Panel Power2.6 W
  • Solar Panel Voltage3 V
  • Solar Panel Width132 mm
  • Type of Solar PanelMonocrystalline

• Battery Information

  • Battery life of the luminaire at full charge, without wear, and at medium light level.
    Autonomy12 h~60 h
  • Batteries IncludedYes
  • Battery Capacity3600 mAh
  • Battery Voltage3.7 V
  • Battery Weight0.15
  • Time required to fully recharge the product's battery, depending on the battery capacity and the charging source.
    Charging Time6 h~8 h
  • Number Of Batteries1
  • Type Of BatteryLi-ion
  • Type Of ChargeSolar
