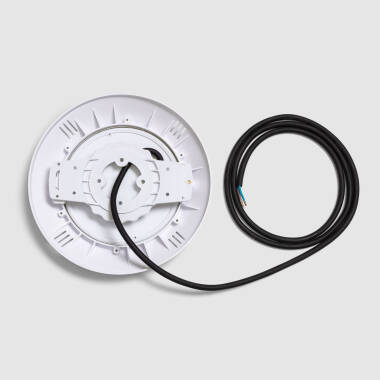

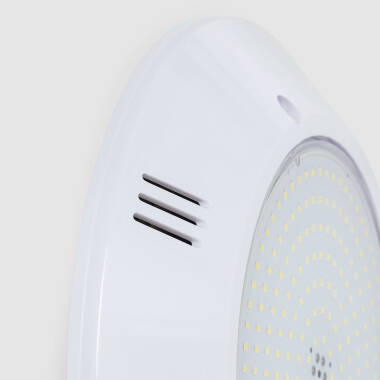

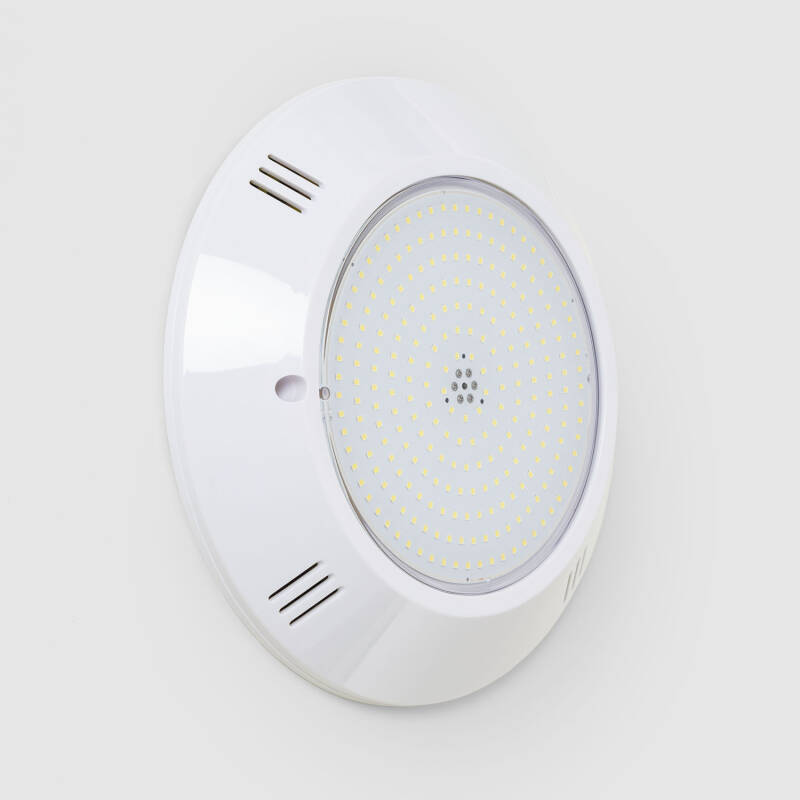

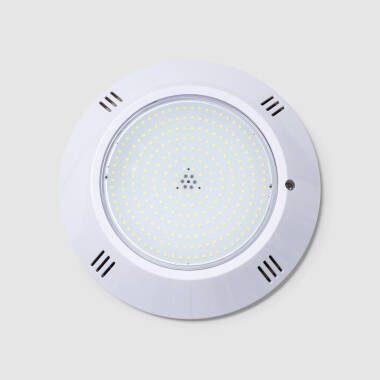

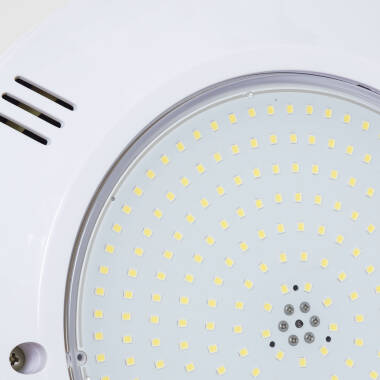

12V AC/DC Surface Mounted 20W Submersible XtraPool LED Pool Light IP68
97,85 €
Ref: 64936
Colour Temperature Daylight 6000K
In Stock, delivery in 15-20 days
Buy now, pay later
Credit paymentDimensions

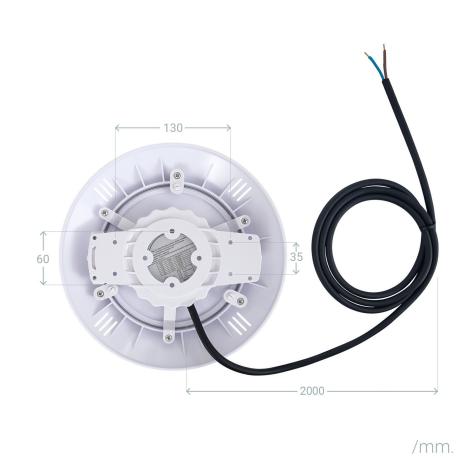

- Dimensions260 mm x Ø260 mm
Downloads
PDF Datasheet 64936_126992 IE
DoC_64936_126992
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-10 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- InstallationSurface
- IP RatingIP68The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Maximum Depth Of Immersion1 m
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
- Product SeriesXtraPool
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Voltage Range12V AC, 12V DCVoltage level required for the product to function correctly.
- Wattage20 W
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourDaylight
- Lumen2000 lm
- Luminous Efficiency90 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs252
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Driver Information
- WifiNo
Description
This submersible LED pool light from the XtraPool series delivers a powerful 20W output with a luminous flux of 2000 lumens, ensuring bright and efficient underwater illumination. Designed for surface mounting, it operates safely on both 12V AC and DC, offering versatility for various pool installations. Its robust construction features a durable PC fitting material and an IP68 rating, providing excellent protection against water ingress and ensuring reliable performance in outdoor aquatic environments.
General information about 12V AC/DC Surface Mounted 20W Submersible XtraPool LED Pool Light IP68
This pool light is configured with 252 LEDs, achieving a luminous efficiency of 90 lm/W and a colour rendering index (CRI) of 80 for natural light quality. It has an electrical insulation class II and is rated for ambient temperatures from -10 °C to +50 °C. The product measures 260 mm in diameter and is designed to be surface mounted, facilitating straightforward installation. Certified with CE, RoHS, and UKCA marks, it meets relevant safety and environmental standards.
Use and applications
Specifically engineered for outdoor use, this submersible spotlight is ideal for swimming pool lighting projects demanding high-quality and reliable illumination. Its IP68 protection ensures full waterproofing for permanent underwater installation, making it suitable for continuous submersion. The light's robust design and materials provide resistance to external elements, supporting long-lasting performance in leisure and outdoor aquatic settings.
Its compatibility with both AC and DC 12V supplies allows flexible integration into various pool electrical systems, enhancing safety and adaptability. The surface mounting installation simplifies fitting while maintaining a sleek, unobtrusive appearance in pool environments.
- Surface mounting for easy installation and maintenance.
- IP68 rating guarantees protection against water immersion.
- High luminous output supports effective pool ambient lighting.
Key benefits
- Ensures safe operation underwater with IP68 waterproof protection.
- Delivers high brightness with 2000 lumens and efficient LED technology.
- Long service life of 40,000 hours reduces maintenance frequency.
- Certified to CE, RoHS, and UKCA standards for compliance and safety.
- Versatile voltage compatibility (12V AC/DC) for diverse installations.
- Durable PC material fitting provides resistance to pool chemicals and environmental factors.
Highlighted specifications
Wattage: 20 W; Dimensions: 260 mm x Ø260 mm; Ambient Temperature Range: -10 °C to +50 °C; Electrical Insulation Class: II.
Installation and maintenance
The pool light is designed for surface mounting, allowing secure and accessible installation on pool walls. Installation should follow the specified mounting system to maintain the product’s waterproof integrity. Regular inspection of seals is recommended, especially if the light remains out of water for extended periods, to preserve watertightness and prolong service life. Disconnect the power supply before any intervention to ensure safety.
Specialized technical lighting distribution in Ireland. If you are looking to buy 12V AC/DC Surface Mounted 20W Submersible XtraPool LED Pool Light IP68 for a technical or professional project, XtraPool identifies the product range this solution belongs to. Estimated shipping in 3 to 4 days (subject to stock availability). Check price and availability.
This spotlight is designed to operate submerged. To preserve its watertightness and extend the service life of the seals, avoid leaving it out of the water for prolonged periods. If the pool remains empty for an extended period, check that the seals are in good condition and correctly fitted before refilling it.
