Power
40 W
Tension
220-240V AC
Brightness
5200 lm
Adjustable
Yes
Dazzle Factor
UGR 23
IP Protection
IP40
Wide
595 mm
High
595 mm
IK Protection
IK05
Luminous Efficiency
110 lm/W
Material
Pc, Aluminum
Color Rendering Index (CRI)
80

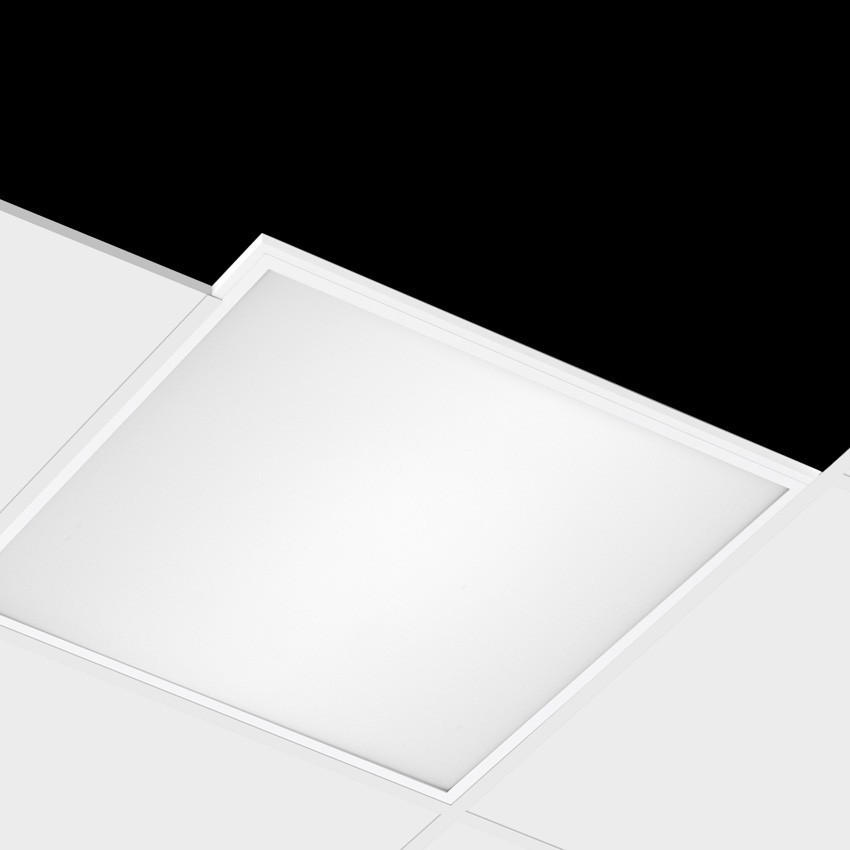

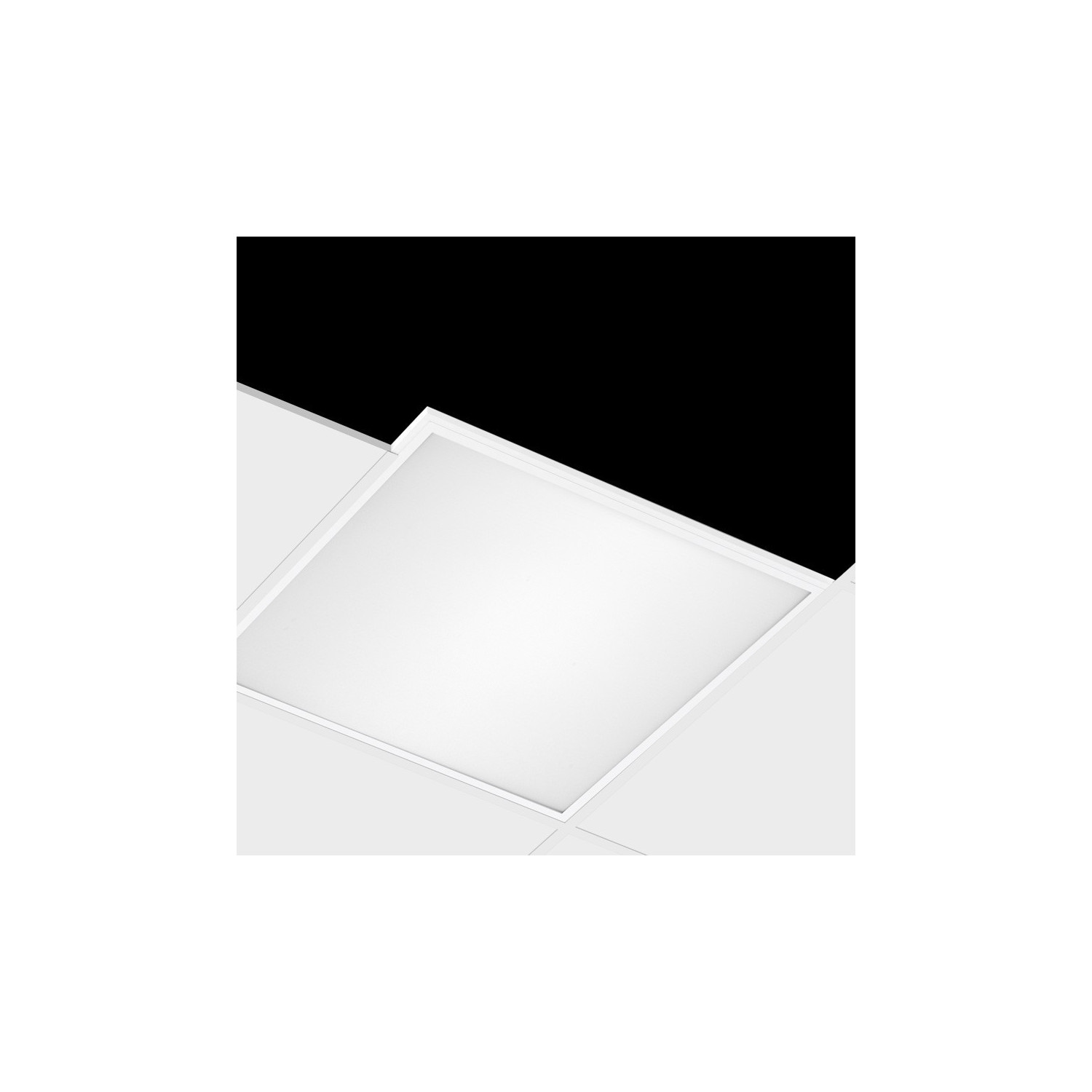

60x60cm 40W 5200lm High Lumen Dimmable LED Panel
Ref. Ledkia: 71233
Ref. Fab: RGL-6060-40W-5200-GR19-BC-TRIAC
Choose Colour Temperature
Warm White 3000K - 3500K
Choose Driver Type
Dimmable TRIAC
Choose Box Format
In Stock, delivery in 15-20 days
Before 65,25 €
51,02 €
23% VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
5-7 days Free Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Don't forget the accessories 9
42W 27-42V Output 100-277V 1000mA Flicker-Free 1-10V Dimmable LIFUD Driver LF-GDE042YF1000U
In Stock, delivery in 15-20 days
29,67 €
1/10V LED Dimmer with an IR Remote Control
In Stock, delivery in 15-20 days
35,77 €
Y Suspension Kit for LED Panels
In Stock, delivery in 15-20 days
3,45 €
Suspension Kit for LED Panels
In Stock, delivery in 15-20 days
3,34 €
Recessed Frame for 60x60 cm LED Panel
In Stock, delivery in 15-20 days
1 options9,55 €
Universal 1-10V LED Dimmer
In Stock, delivery in 15-20 days
1 options23,37 €
Recessed Panel Kit
In Stock, delivery in 15-20 days
1 options1,62 €
Surface Kit for a 60x60cm LED Panel
In Stock, delivery in 15-20 days
1 options11,37 €
Emergency Driver with Battery for LED Panels with Output 3W 10-50V DC
In Stock, delivery in 15-20 days
1 options63,01 €
Dimensions
- High595 mm
- Wide595 mm
- Lenght30 mm
Downloads
Technical Data Sheet PDF
CE Certificate Panel
ENEC Certificate Panel
Energy Efficiency
Regulation 2023Technical Specifications
- Light colorWarm White
- Color Temperature3000K - 3500K
- Energy Efficiency 2023 (EU-2019/2015)F
- Driver TypeDimmable TRIAC
- Revisión Control de CalidadNo
- Maximum Driver Intensity1000 mA
- Minimum Driver Tension25 V
- Maximum Driver Tension42 V
- Power40 W
- Tension220-240V AC
- Rated Voltage85-265V AC
- Frequency50-60 Hz
- Electric Insulation ClassII
- AdjustableYes
- Light SourceSMD2835
- Color Rendering Index (CRI)80
- Brightness5200 lm
- Luminous Efficiency110 lm/W
- LED Performance130 lm/W
- Type of LensFrost
- UseIndoor
- IP ProtectionIP40
- IK ProtectionIK05
- Dazzle FactorUGR 23
- MaterialAluminum, Pc
- InstallationFalse Ceiling
- High595 mm
- Wide595 mm
- Lenght30 mm
- Room Temperature Work-20 °C~+45 °C
- Useful life50,000 Hours
- Type of regulationTRIAC, DALI, 1-10 V
Our advantages
Team of experts at your service
Personal customer service
24-hour express delivery
Stock of more than 12,000 references
Warranty up to 5 years
Our professionals guarantee you the highest quality and reliability
Best price guarantee
Compared to the most outstanding websites in the industry
Description

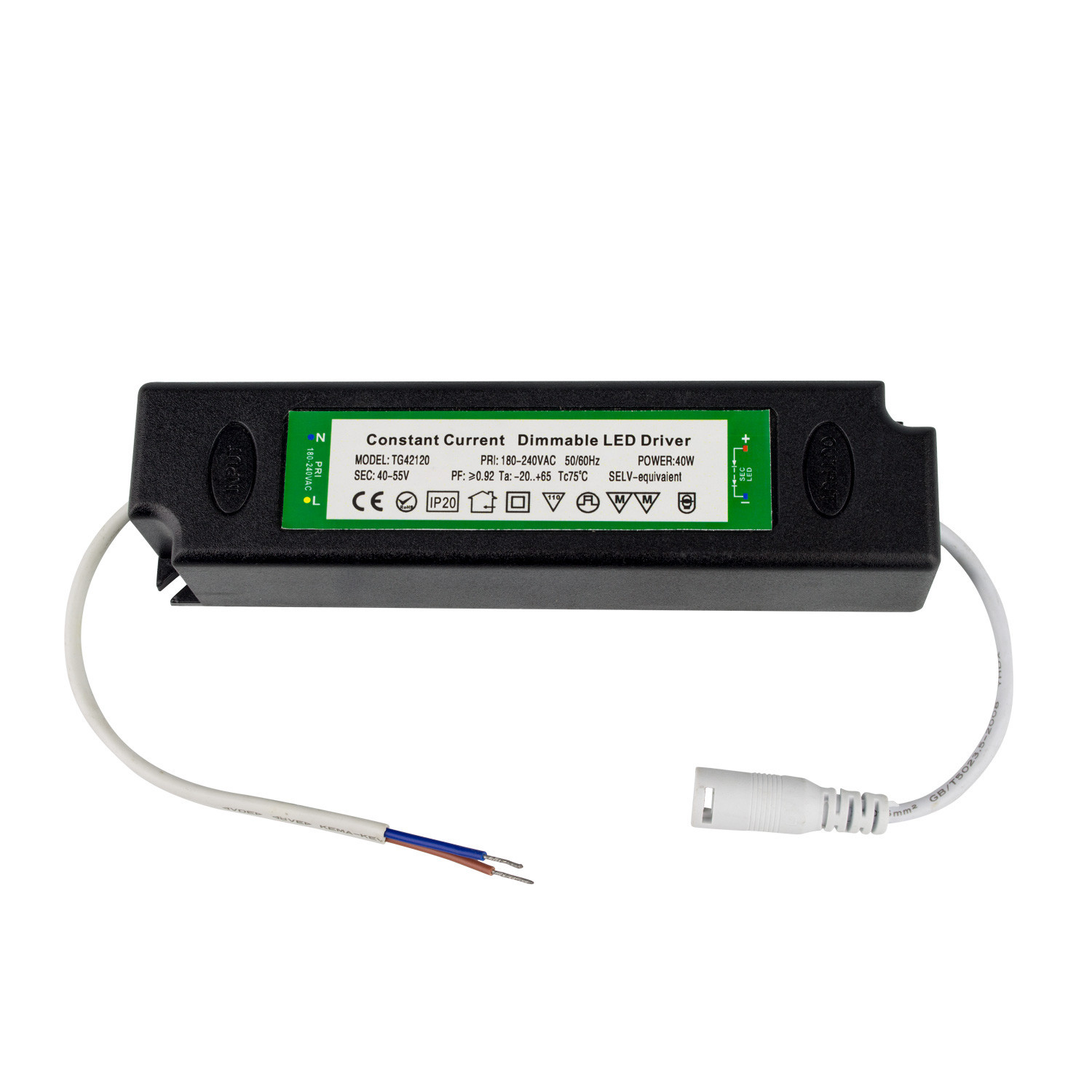

The 60x60cm 40W 5200lm High Lumen (UGR19) Dimmable LED Panel with white frame combines a very modern design with excellent light efficiency and quality. This panel is particularly suitable for offices and work areas due to its low glare factor. It includes an adjustable driver so that you can adapt the light intensity to each of the needs of each room.
The light source of the LED panel has a very high luminosity of 5200 lumens, which is equivalent to what would be emitted by a conventional 110W luminaire. In this way, a very important saving is achieved compared to this type of traditional low consumption luminaires. It supports multi-voltage between 85V 265V AC and an ambient working temperature range of -20ºC to 45ºC.
Applications of the 60x60cm 40W 5200lm High Lumen (UGR19)Dimmable LED Panel
Suitable for lighting offices thanks to its low glare. The glare caused by lighting can have a negative influence on people, because a comfortable lighting environment is needed to help us in our tasks. A low UGR level increases the feeling of well-being of workers, which contributes to the level of productivity indirectly.
Low levels of glare are recommended in all places where people spend long periods of time exposed to artificial light, and are very important in offices, educational centres, work areas, etc.

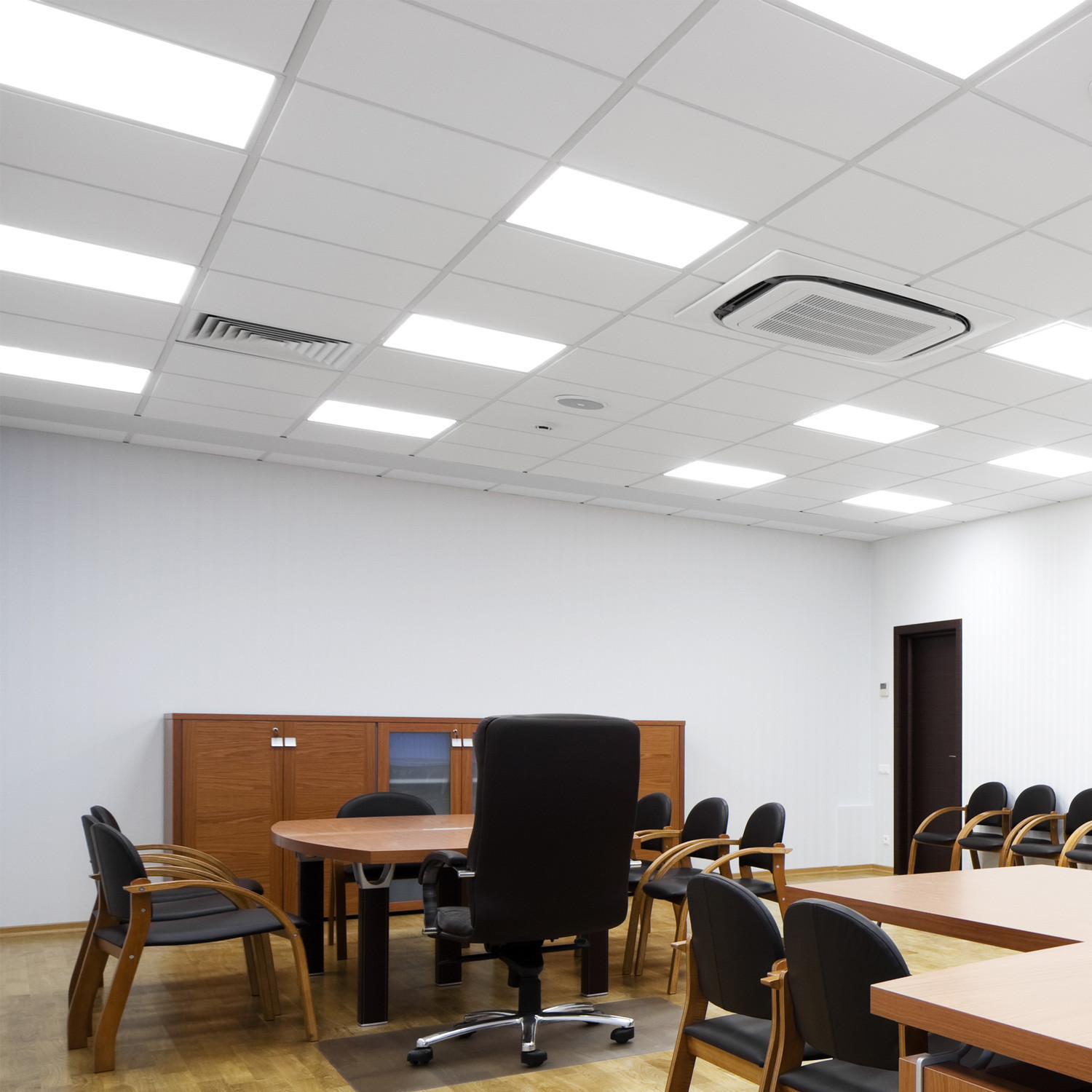

Specially designed for installation in technical ceilings, it is used above all in commercial or work spaces such as: hotels, restaurants, supermarkets, exhibition halls, museums or offices. It provides a high quality and very uniform light that improves working conditions. It also includes an opal diffuser that reduces glare.
Enjoy the best LED lighting with the most advanced and efficient products on the market, such as the 60x60cm and 40W LED panel with a white frame offered at our online shop, Ledkia.
* They are installed in a removable false ceiling. Other installation options are available in the accessories section.
